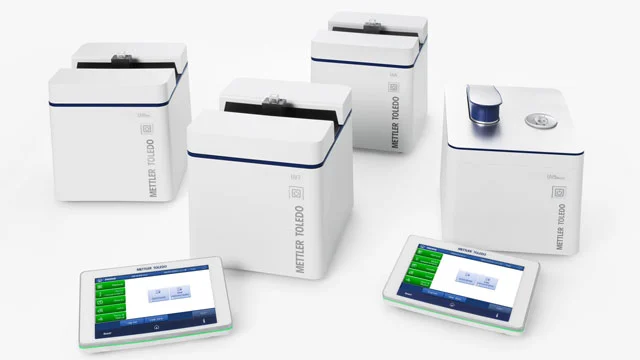

The spectrophotometer UV7 is perfect for controlled settings; calibration is done in accordance with the US and European pharmacopeia. It supports LabX Software's data integrity compliance and 21 CFR Part 11 and provides sophisticated automation features.
Excellent Performance
FastTrack™ technology provides superior optical performance. The optional CertiRef™ module allows for automated performance verification.
Simple One Click™ Operation
The One Click™ interface on the big color touchscreen is easy to use. Every user has a home screen that allows them to complete regular tasks with a single click.
Measurements within Seconds
Combining modern fiber optics, a CCD array detector, and a Xenon flash bulb, the spectrophotometer can complete a full-spectrum scan in under one second.
Features
Pharmacopeia Compliance

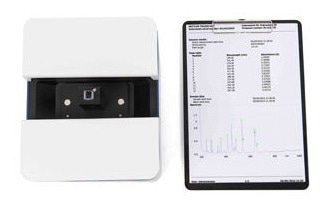

Image Credit: Mettler Toledo - UV/Vis Spectrophotometry
Optical performance meets all pharmacopeia criteria (USP, Ph. Eur.).
Open Sample Area

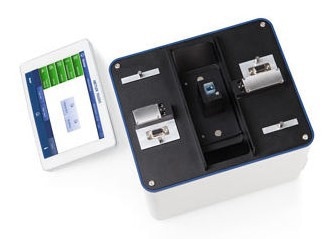

Image Credit: Mettler Toledo - UV/Vis Spectrophotometry
The open sample container enables quick and easy sample handling, and accessories are easily installed.
Clean Up the Lab Bench

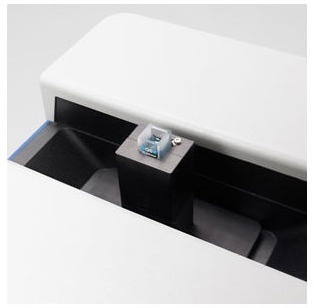

Image Credit: Mettler Toledo - UV/Vis Spectrophotometry
The optical component's compact construction leaves a surprisingly small footprint. Additionally, the device can be used independently without a PC.
Keep Control of All Costs
Image Credit: Mettler Toledo - UV/Vis Spectrophotometry
There are no moving parts in the optical arrangement, making the device durable and simple to maintain.
Ready to Use
Image Credit: Mettler Toledo - UV/Vis Spectrophotometry
Once delivered, the device is ready for immediate use. The Xenon flash lamp does not have a warm-up time. It can begin measuring as soon as it is switched on.
Specifications

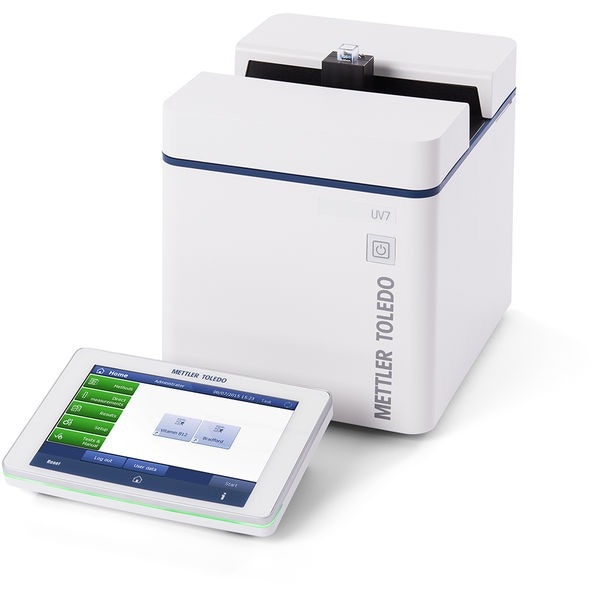

Spectrophotometer UV7. Source: Mettler Toledo - UV/Vis Spectrophotometry
| . |
, |
| Options |
CertiRef
CuvetteChanger
FillPalMini
Handheld barcode scanner
Immersion
LabX PC Software
LinSet
Printer USB-P25 |
| User Identification |
Yes |
| Weight (incl. Terminal) |
6.4 kg |
| Shortcuts per user |
24 |
| Optics |
Array |
| Dimensions (H × W × D) |
8.98 in × 8.19 in × 10.04 in (228 mm × 208 mm × 255 mm) |
| Languages |
Chinese
English
French
German
Italian
Portuguese
Russian
Spanish |
| Resolution (Toluene in hexane) |
>1.9 |
| Compatibility with LabX Software |
Yes |
| Light Source |
Xenon flash lamp |
| Minimal Scan time |
One second |
| Wavelength accuracy |
±0.5 nm |
| Photometric accuracy (K2Cr2O7) |
±0.005 A |
| Displayed Resolution |
800x400 |
| Max. number of methods |
100 |
| Pharmacopeia Compliant |
Yes |
| Stray light (KCl, 198 nm) |
>2.3 |
| Wavelength Range (nm) |
190 nm - 1,100 nm |
| Path length |
10 mm
16 mm
20 mm
30 mm
40 mm
50 mm |
| Application |
Color
Kinetic
Pharma
Quant
Scan
Water |
| Display |
7 inch QVGA Color TFT touch sensitive screen |
| Product Line |
UV/VIS Excellence |
