Mid-IR Laser for OEM and Laboratory Use - Hedgehog™

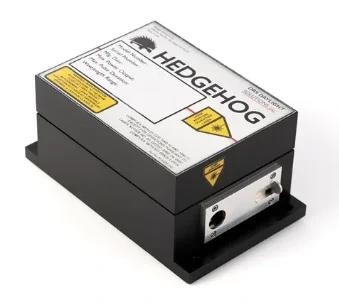

Fearsome performance with a cute name. The Hedgehog Mid-IR Laser, perfect for OEM or laboratory use, is DRS Daylight’s tunable next-generation laser head. The Hedgehog laser, which is created on the External Cavity Quantum Cascade Laser™ technology, is a unique combination of small size, tuning speeds to > 5000 cm-1/s, high power, TEM00 beam quality, CW or pulsed output, and unmatched spectral repeatability.

Rapid, high-SNR data acquisition is benefited greatly by molecular spectroscopy applications. Broad mid-IR tuning also benefits probing multiple molecules, or probing an absorption feature with high dynamic range. These benefits are provided by the Hedgehog system, with wide-ranging, rapid tuning throughout the mid-IR spectrum, high spectral and spatial beam quality, and low-noise output.

The alignment-free, sealed design, along with included-as-standard GUI and SDK allow easy access to this performance. Three standard Hedgehog models are available to choose from: Hedgehog (tunes up to 200 cm-1), Hedgehog-UT (tunes up to 400 cm-1), and lastly, Hedgehog-LT (tunes up to 30 cm-1).

Features and Benefits

  • Wavelength availability: 3-13 µm
  • Tune up to 400 cm-1 at speeds of up to 5000 cm-1/s
  • CW* or pulsed output (up to 3 MHz/30% duty)*
  • Ultra-quiet CW: RIN as low as -140 dBc/Hz enables higher-SNR spectroscopy
  • Superior wavelength repeatability for higher-accuracy spectroscopy
  • Superb TEM00 beam quality and low beam pointing allows fiber coupling
  • High output power for high SNR* of > 1 W (peak) and > 0.5 W (average)
  • SideKick™ controller, GUI, and SDK standard with all systems
  • Proprietary HFQD™ circuitry protects your chips

*Requires suitable chip(s).


  • Standoff detection
  • Process control
  • Atmospheric research
  • Nanoscale imaging and spectroscopy
  • TIC, VOC, GHG chemical and biological agent detection
  • Combustion diagnostics
  • Biomedical diagnostics
  • Protein analysis
  • Imaging
  • Photoacoustic spectroscopy
