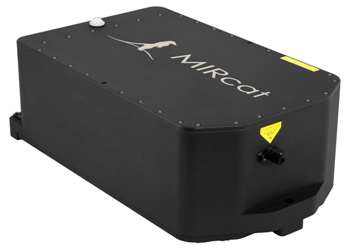

Multi-Quantum Cascade Laser System - MIRcat-QT™ Mid-IR Laser

The MIRcat-QT brings higher spectral repeatability, high-speed tuning, longer-wavelength options and improved thermal management to the first generation of the MIRcat laser, which is a field-proven multi-quantum cascade laser system.

The MIRcat-QT is a complete one-box, fully automated system boasting a flexible, modular design which permits factory configuration of up to four pulsed or continuous wave/pulsed modules. It also offers the choice to upgrade or add modules later.

The MIRcat-QT provides wavelength coverage to > 13 µm and a tuning range approaching 1000 cm-1 (> 6 µm). It also gives unmatched, industry-leading performance in critical areas such as output power up to 1 W, tuning speeds of > 5000 cm-1/s, and TEM00 beam quality to permit high-efficiency fiber coupling. Lower-noise drive electronics and a new, higher-precision tuning mechanism produce wavelength repeatability as high as < 0.1 cm-1 and CW RIN as low as -140 dBc/Hz.

Features and Benefits

  • Superb TEM00 beam quality and low beam pointing allows fiber coupling
  • CW* or pulsed output (up to 3 MHz/30% duty)*
  • Wavelength availability: 3-13 µm
  • Proprietary HFQD™ circuitry protects your chips
  • High output power for high SNR*: to > 1 W (peak) and > 0.5 W (average)
  • GUI and SDK command sets included
  • Tune up to 1000 cm-1 at speeds up to 5000 cm-1/s
  • Ultra-quiet CW: RIN as low as -140 dBc/Hz
  • Superb TEM00 beam quality and low beam pointing allows fiber coupling

*Requires suitable chip(s).

Applications

  • TIC, VOC, and GHG chemical and biological agent detection
  • Photoacoustic spectroscopy
  • Atmospheric research
  • Standoff detection
  • Imaging
  • Process control
  • Combustion diagnostics
  • Biomedical diagnostics
  • Nanoscale imaging and spectroscopy
