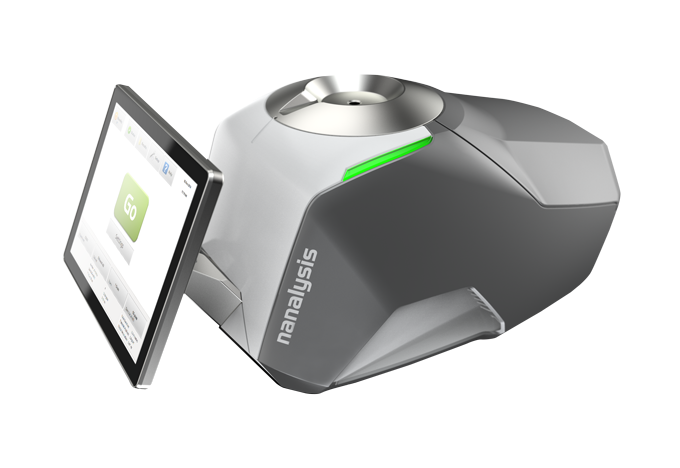

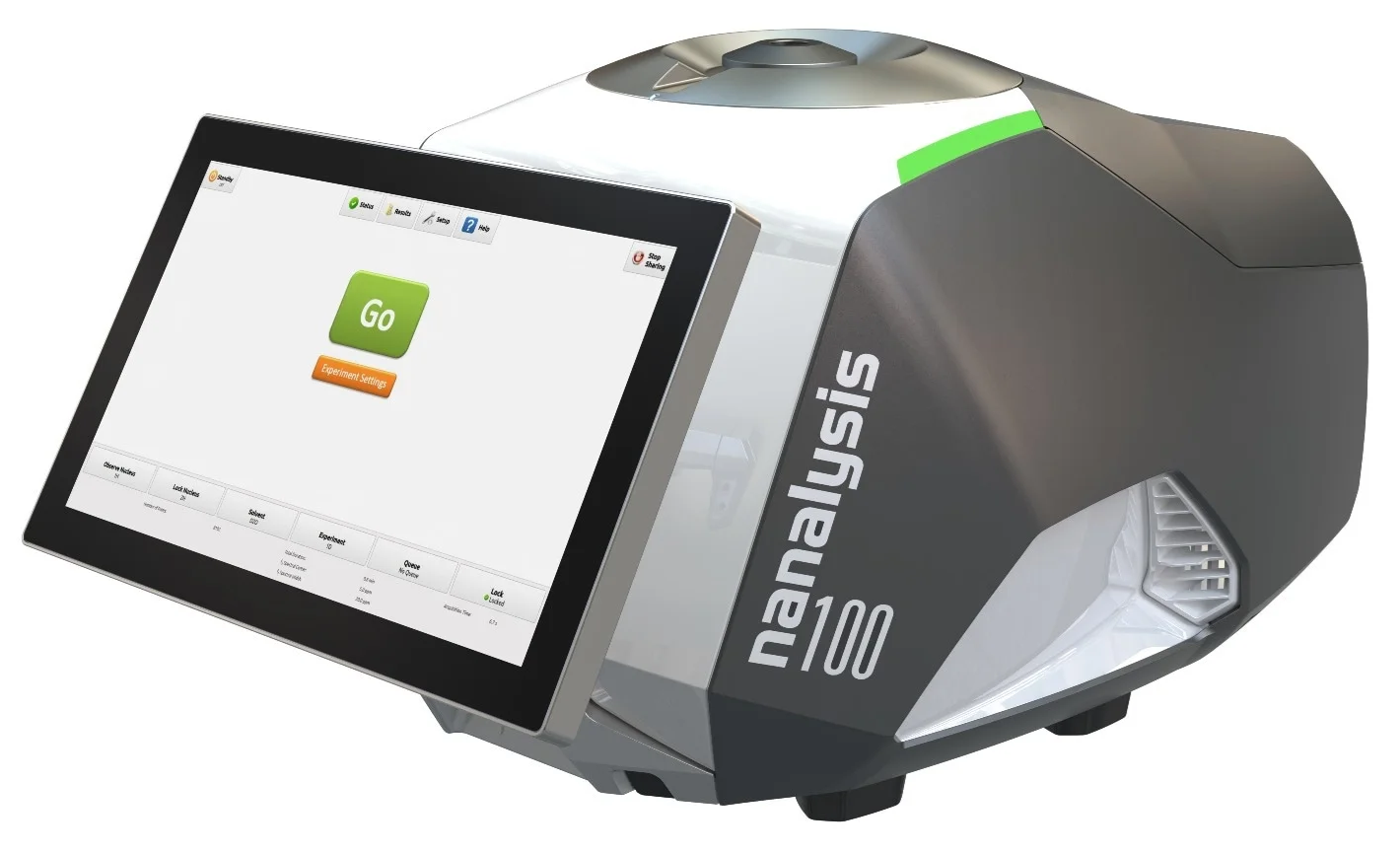

Nanalysis-100 Benchtop NMR Spectrometer

The Nanalysis-100 is the market-leading benchtop NMR spectrometer, delivering the highest field strength available in its class. It’s built to generate exceptional multi-nuclear 1D and 2D NMR data with outstanding clarity and precision.

Housed in a sleek, all-in-one enclosure with an intuitive interface, the Nanalysis-100 offers:

• Exceptional sensitivity: Run samples at sub-millimolar concentrations and collect data in seconds.
• Outstanding stability: Easy to site and capable of producing reliable, repeatable data without fuss.
• Superior resolution: Optimized chemical shift dispersion ensures clean, high-quality spectra.
• Ergonomic usability: A large, movable touchscreen computer makes the system easy to operate.

Optional Features

• Automation tools for generating quantitative NMR (qNMR) data at the click of a button.
• Signal suppression options.
• API support through NMReady-CONNECT for custom applications.
• Remote access via smartphone, tablet, or computer.
• Non-deuterium lock options.
• Custom pulse program creation with the Experiment Designer.
• Pulsed-field gradients for faster 2D experiments and enhanced water suppression.
• IQ/OQ/PQ protocols and towards GxP-compliant modules.
• Kinetics packages for reaction monitoring.

Low Maintenance

Thanks to a permanent magnet design, the Nanalysis-100 requires no cryogens, preventative maintenance, or weekly service. It uses standard five-millimeter NMR tubes and features automated shimming routines. Just plug it into a standard wall outlet, with no specialized staff needed.

Multinuclear Capability

The Nanalysis-100 supports a broad range of spin-active nuclei, including: ¹H/¹⁹F, ¹H/¹⁹F/¹³C, ¹H/¹⁹F/⁷ Li, ¹H/¹⁹F/³¹P
Please inquire about custom options.

Customizable Experience

The system comes pre-loaded with a comprehensive library of standard NMR experiments, including 1D, 1D{1H}, COSY, TOCSY, JRES, T1, T2, DEPT, APT, HETCOR, HSQC, HSQC-ME, HMBC, and Nutation. Optional gradient-based pulse programs, such as gCOSY and gHSQC-ME, are also available.

Users can fully customize acquisition parameters to suit specific applications, whether running routine checks or advanced analysis. From confirming sample composition and purity to monitoring reaction progress, the system provides fast and reliable results directly at the bench.

Quick and Easy-to-Use

The Nanalysis-100, like other instruments in the Nanalysis benchtop series, features an integrated touchscreen interface that simplifies operation. Users can quickly launch standard experiments or fine-tune acquisition settings to meet specific requirements. Onboard processing software supports complete data analysis directly on the instrument. With exceptional sensitivity, the Nanalysis-100 delivers high-resolution spectra in seconds, making it a powerful tool for fast, accurate NMR analysis at the bench.
