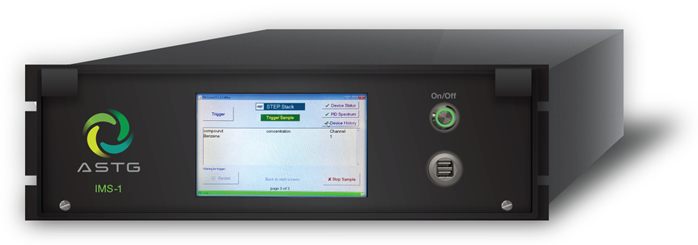

The Ion Mobility Spectrometer (IMS) offers highly sensitive, real-time analysis of substances based on trace gases.
Designed for both stationary and mobile operations, the IMS provides precise and reliable detection across a wide range of applications. Its versatility, compact design, and advanced technology make it an essential tool for professionals in industries requiring continuous monitoring and fast detection.
Advanced Real-Time Trace Gas Detection for Stationary and Mobile Applications
Key Features
- Advanced Analysis Software: Includes integrated software for real-time data analysis, with interfaces for seamless data transmission and evaluation.
- Low Power Consumption: Engineered for minimal energy use, making it cost-effective and ideal for remote or off-grid applications.
- Minimal Maintenance: Designed for ease of use with low maintenance requirements, reducing downtime and overall service costs.
- Portability: Available in both stationary and mobile versions, offering flexibility for a wide range of applications—from fieldwork to permanent installations.
- Rapid Response Time: Delivers quick and reliable results with real-time, continuous monitoring to ensure prompt action when needed.
- Remote Monitoring & Service: Supports remote control, diagnostics, and service via the internet, enabling continuous operation without on-site intervention.
- Rugged and Compact Design: Built to withstand tough environments, the IMS is durable yet compact, allowing for easy handling and transport.
- Unmatched Sensitivity: High sensitivity with minimized cross-sensitivity for accurate trace detection in complex environments.
Applications
- Chemical and Industrial Process Control: Continuous, real-time monitoring of industrial processes in sectors such as chemical manufacturing and semiconductors, enabling quality assurance.
- Customs & Border Security: A critical tool for detecting illicit substances at borders and customs checkpoints.
- Disaster Response: Essential for first responders, including fire brigades and civil defense, in detecting hazardous substances.
- Environmental Monitoring: Ideal for emission control and air quality monitoring, ensuring compliance with environmental regulations.
- Food Industry: Ensures food safety through precise detection of chemical contaminants.
- Medical Diagnostics: Provides non-invasive detection of biomarkers for advanced medical diagnostics.
- Security & Law Enforcement Operations: Detects narcotics, explosives, and chemical warfare agents to support safety and counter-terrorism efforts.
- Workplace Safety: Vital for monitoring air quality in hazardous environments, protecting employees from toxic gases and chemicals.
Technical Specifications
Source: ASTG
| |
|
| Ionization |
Tritium (Beta-emitter), Activity < 100 MBq (below exemption limit) |
| Detection Limit |
Detects substances in the range of 1 ppb to 1 ppm, ensuring accurate and precise trace detection. |
| Measurement Signal Generation |
Provides an average spectrum of 16 individual spectra within a 1-second interval for real-time, high-speed analysis. |
| Resolution of the Spectrum |
Resolution ≥ 50 (drift time/peak width at half amplitude), ensuring high precision and clarity in analysis. |
| Sampling Procedure |
Self-priming or sample loop (via suction pump), providing flexibility in various application settings. |
| Inlet System |
Direct inlet, with optional protection via 0.45 μm dust filter to ensure sample purity and reliability |
| Measuring Temperature |
Standard version: up to 100 °C Special version: up to 180 °C, catering to higher temperature applications. |
| Data Input of the Spectrum |
16-bit A/D converter for high-resolution data capture. |
| Internal Control |
All IMS components controlled by a 32-bit ARM7 processor, ensuring seamless, real-time operation. |
| Integrated Microcomputer |
Equipped with MIO-2261N-96A1E (1.66 GHz, 2 GB RAM) for graphical control and spectrum analysis in stand-alone operation. |
| Data Storage Medium |
SSD 128 GB for fast data retrieval and long-term storage. |
| Display |
7" TFT LCD Color Display with 800 x 480 resolution and 16 M color for clear, vibrant visual feedback.
Touchscreen interface for intuitive user operation. |
| Interfaces for Data Communication |
Remote Control: Ethernet, USB, MODBUS
Optional: RS232, Current Loop 4-20 mA, Digital IOs
Remote control and service via TeamViewer over the internet for convenience and enhanced functionality. |
| Power Supply |
Stationary Type: External or power supply input 90-264 V AC, output 19 V DC / 7.9 A / 150 W
Power consumption: Approx. 40 W without heating, 70 W with heating.
Battery Powered: Li-Ion accumulator (14.2–16.8 V DC, 7.6 Ah) for portable applications. |
| Operating Temperature |
0 °C to 45 °C (depending on IMS version), ensuring reliable operation in a wide range of environments. |
| Dimensions |
Stationary: 440 x 320 x 140 mm Mobile: 360 x 320 x 160 mm |
| Weight (with Battery) |
Approximately 8 kg, making it portable without compromising on performance. |
Industries
A key tool for industries where accurate trace gas detection is critical, including:
- Agriculture: Detection of H2S, NH3, pesticides, and ketosis markers for reliable monitoring and safety.
- Chemical and Petrochemical: Optimized for identifying aromatics, phosgene, alkanes, Cl2, TDI, and more.
- Sewage Treatment and Landfills: Capable of monitoring gases like siloxanes, PCB, aromatics, DCE, and others.
- Food and Beverage Industry: Ensures product quality control by detecting aromatics and other key substances.
- Oil and Gas: Identifies sulfur compounds, H2S, and mercaptans in exploration and production environments.
- Laboratories: Monitors hazardous substances for research and safety applications.
- Medical: Enables non-invasive diagnostics through breath, body fluid, and sweat analysis.
- Power Generation: Tracks NH3, H2S, SO2, HF, and PAC in energy production and distribution.
- Public Security and Law Enforcement: Essential for air monitoring and the detection of explosives, narcotics, and chemical warfare agents (CWA).
- Semiconductor Industry: Identifies NH3, amines, HF, HCl, and Cl2 while monitoring solvent incineration plants.
- Fire Departments: Supports fire warning systems through the detection of pyrolytic products.
- Transport and Infrastructure: Tracks harmful substances such as NOₓ, SO2, and mercaptans in tunnels and garages.
- Waste Disposal and Recycling: Ensures safety in waste management operations by monitoring PCB, dioxin precursors, H2S, NH3, and VOCs.
