Bruker drew on decades of expertise to develop its latest WDXRF spectrometer - designed to overcome analytical challenges, deliver exceptional detection limits and precision for research and development, and provide reliable data for quality control.
The S8 TIGER Series 3 boosts analytical capabilities by harnessing advanced hardware and software, alongside artificial intelligence, cloud computing, and augmented reality.
Enhanced Data Quality and Faster Elemental Analysis than Ever Before
The S8 TIGER - Next-Generation XRF Spectrometer. Image Credit: Bruker AXS Inc.
The S8 TIGER Series 3 delivers exceptional data quality, with maximized elemental intensities, up to 4 kW of power, and 170 mA current.
With its unique SensorBoost™ signal processing and new HighSense™ detectors, the S8 TIGER overcomes count rate restrictions to provide superior precision and faster analysis.
To deliver even faster results analysis can be ran using a single-element channel or a multi-element channel, with quick switching between or simultaneous mode.
Efficient WDXRF Analysis - Intuitive and Effortless Operation

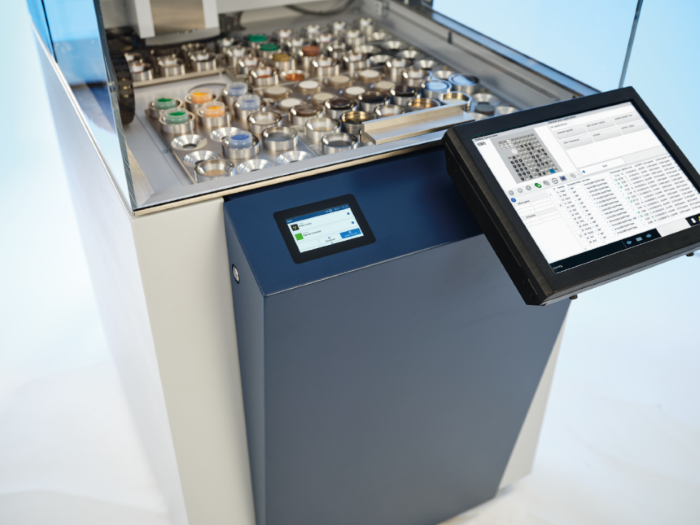

The intelligent operating and sample loading features of the S8 TIGER Series 3 makes handling many samples easy. Image Credit: Bruker AXS Inc.
Bruker designed the S8 TIGER Series 3 for maximum efficiency, with an intuitive TouchControl™ user interface and SampleCare™ system for safe sample handling.
The EasyLoad™ magazine supports diverse sample types, while the integrated camera AI identifies samples, with the ability to read barcodes and QR codes, and automatically sets measurement parameters.
24/7 Performance in Every Analytical Lab
The S8 TIGER's SafeGuard predictive maintenance feature helps keep the system running and the measurement light on, 24/7. Image Credit: Bruker AXS Inc.
The S8 TIGER operates around the clock. The system's SafeGuard™ system continuously checks health and predicts maintenance requirements.
Users can administer the company's S8 TIGER fleet via Bruker's LabScape Cloud, and the Bruker service staff can monitor system performance and give fast help as needed.
Innovative Features for Advanced WDXRF:

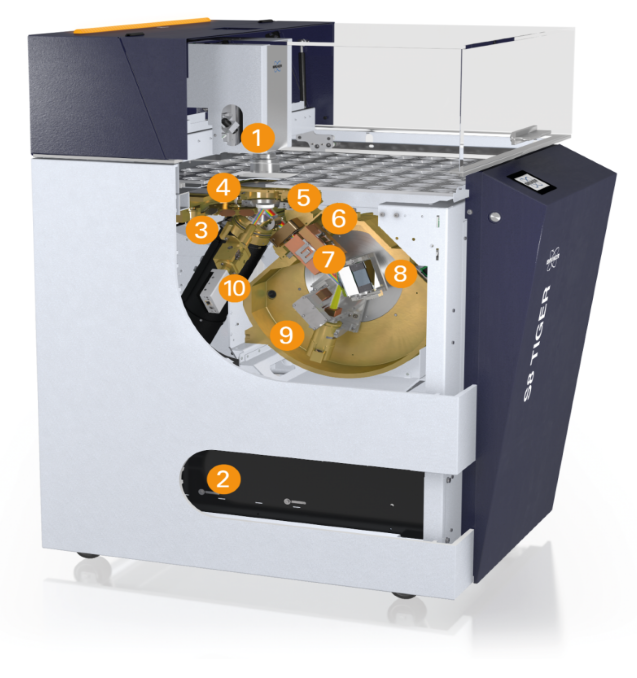

Schematic of the inside of the S8 TIGER Series 3, highlighting the innovative design features. Image Credit: Bruker AXS Inc.
- EasyLoad with Camera AI: 84 sample positions, a magnetic grabber and AI-assisted camera for sample recognition.
- The High-voltage Generator: Provides a stable voltage between 20 and 60 kV for optimal light element excitation.
- High-intensity X-ray Tube: Optimized cooling and close coupling for long-term performance and minimum drift.
- 10-position Beam Filter Changer: Improves peak-to-background ratio with suitable filters.
- 5-position Mask Changer: Handles a wide range of sample sizes, with spot sizes ranging from 34 mm to 5 mm.
- High-transmission Vacuum Seal: Protects the goniometer while keeping the chambers separated.
- 4-position Collimator Changer: Increases intensity or resolution with various collimators.
- 8-position Crystal Changer: Covers the whole element range with up to eight analyzer crystals.
- Flow Counter and Scintillation Counter: Provide excellent detection across the whole element range.
- Multi-Element or Single-Element Channel: Increase analysis speed with simultaneous mode.
