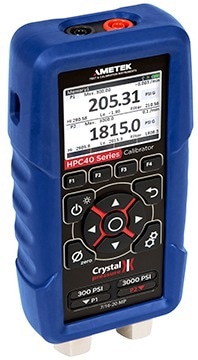

When precision is critical, the HPC40 Series handheld pressure calibrator is the tool professionals can rely on. As the world’s first combined pressure and mA loop calibrator that is fully temperature-compensated from –20 °C to 50 °C, the HPC40 Series sets a new benchmark in calibration technology.
Whether measuring pressure, current, voltage, or temperature, this calibrator delivers accurate and consistent results across a wide range of conditions, making it an essential instrument in numerous industries.
- Unmatched Accuracy: With a reading accuracy of 0.035 %, the HPC40 Series ensures reliable and precise measurements, whether you're working with pressure, current, voltage, or temperature.
- Versatile Pressure Measurement: The HPC40 Series supports gauge, absolute, and differential pressure measurements up to 15,000 psi (1000 bar). Its broad range and flexibility make it suitable for everything from demanding industrial environments to sensitive laboratory settings.
- Advanced "Non-Menu" Interface: The user-friendly “Non-Menu” interface simplifies operation and shortens the learning curve, allowing users to work more efficiently right from the start.
- Measure and Source mA with Flexible Power Options: In addition to pressure calibration, the HPC40 Series can source and measure milliamps using either the built-in 24 VDC power supply or an external loop power source, offering added versatility.
- High-Accuracy Thermometer with “True Ohm” Technology: Equipped with a high-accuracy thermometer and “True Ohm” technology, the HPC40 Series delivers precise temperature readings, enhancing its utility for electrical and thermal calibration tasks.
- Store and Recall Screens: Users can save and recall frequently used screens, which streamlines recurring calibration activities and reduces setup time.
- Flexible Power Options: The HPC40 Series offers multiple power sources, including a rechargeable battery.
Create a Complete Calibration Kit
Users can enhance the HPC40 Series by adding pressure modules or pairing it with one of the ready-to-use pump systems. This creates a comprehensive calibration kit that includes everything needed for accurate, dependable, and efficient calibration—all in one convenient package.
