The UltraGenizer is an ultra-high-pressure homogenizer and cell disruptor designed for higher flow rate requirements, operating at a maximum pressure of 60,000 psi.
The UltraGenizer single-pump system is user-friendly and efficient, featuring a diamond interaction chamber that performs cell disruption and reduces particle size.
For the sample cooling unit, a 316 L stainless steel heat exchanger may be integrated into the system to facilitate real-time sample cooling.
Furthermore, the Genizer PLC touchscreen offers an intuitive interface for operators, including access to auto-stop settings (set time, cycle count, and pressure). All components that come into contact with the medium are made of 316 L stainless steel, 17-4 ph stainless steel, titanium alloy, tungsten carbide, PTFE, UHMWPE, or other corrosion-resistant materials.

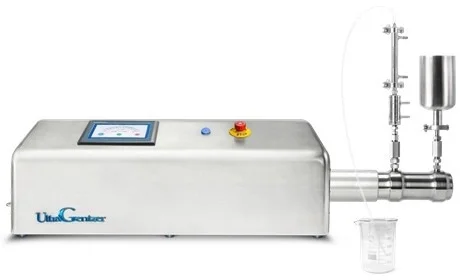

UltraGenizer, up to 60,000 psi. Image Credit: Genizer LLC
Main Features of the UltraGenizer-30K
- Pressure: 30,000 psi (2,068 bar)
- Flow rate: ~12 L/hour (water value)
- Weight: ~110 kg
- Minimum sample volume: ~26 mL
- Diamond Interaction Chamber (Electro-Polish and Passivation for pharmaceutical applications)
- Power requirement: 380 V, three-phase, 50/60 Hz
- Applications include liposomes, nanoemulsions, nanodispersion, fat emulsions, cell disruption, and deagglomeration
Enhanced Features
- Control system: Digital pressure display, PLC touchscreen, auto-stop
- 316 L high-pressure piping and tubing
- Cooling system: Heat exchanger, diamond interaction chamber designed with cooling ports
- Spare parts and tools
- One-year warranty against all manufacturing defects
- Compliant with RoHS and CE
