The MixGenizer is a nanoparticle generator that employs microfluidic technologies. The purpose of microfluidic mixing is to thoroughly and quickly mix two separate samples under high pressure in interaction chambers.
To mix two-component samples, the MixGenizer includes a dual separate pump system, and the core element is a specifically designed microfluidic mixing diamond chamber with two inlets, where the samples are mixed and homogenized simultaneously. The technology offers a wide variety of applications in biochemistry and nanomaterial manufacturing.

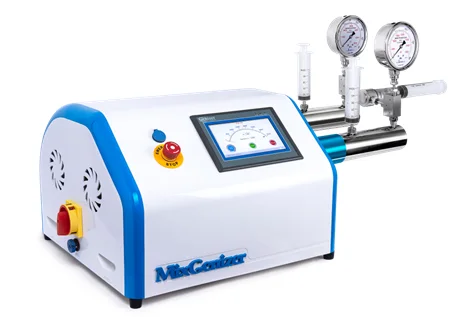

MixGenizer-30K, for fluid Micro-mixing and homogenizing at the same time. Image Credit: Genizer LLC
Microfluidic Mixing Interaction Chamber, Diamond, F20X-RT. Image Credit: Genizer LLC

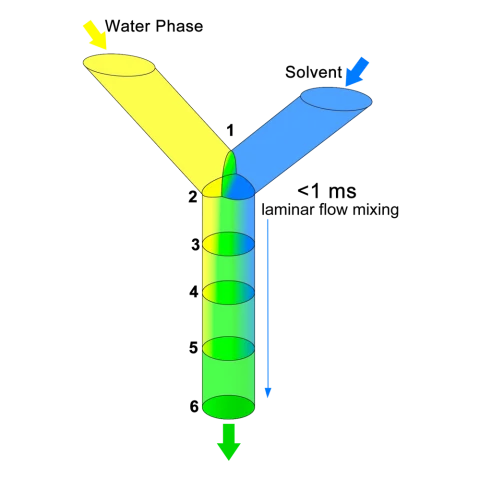

Mixing Flow Pattern. Image Credit: Genizer LLC
Main Features of the Mixgenizer
- Mixing Interaction Chamber, Diamond
- Minimum sample volume: five mL
- Applications include: nanoemulsions, liposomes, fat emulsions, nanodispersion, cell disruption, and deagglomeration
- Flow rate: ~100 mL/minute (water value)
- Pressure: 30,000 psi (2,068 bar)
- Weight: ~60 kg, benchtop
Enhanced Features
- CE and RoHs compliant
- 316 L high-pressure tubing and piping
- A one-year warranty against manufacturing problems
- Cooling system: heat exchanger, diamond interaction chamber intended with cooling ports
- Control System: PLC touch screen, digital pressure value, auto stop
- Tools and spares
