Vanta Max and Vanta Core XRF Analyzers - Maximize Efficiency in the Field and Lab

Easily identify materials and their chemical composition from any location with the Vanta™ handheld XRF analyzer. The Vanta series offers rapid and precise elemental analysis and material identification through smart and cloud-connected technology.

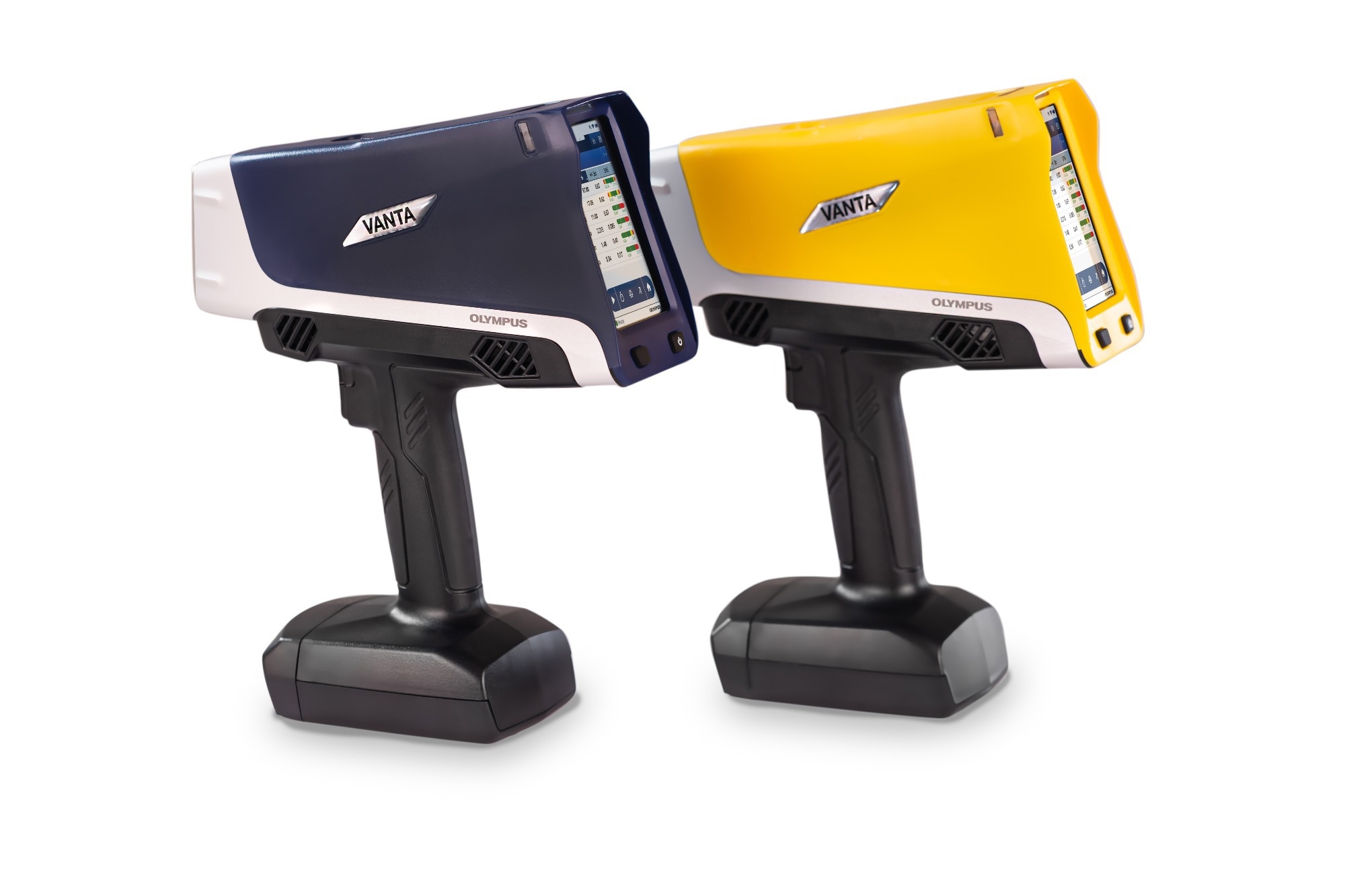

The Vanta Max and Vanta Core, the next-generation handheld XRF analyzers from Evident Scientific, combine the remarkable accuracy, speed, and durability of the Vanta series with enhanced connectivity, a streamlined interface, and better ergonomics for increased productivity.

Introducing Vanta™ Max and Core Handheld XRF Analyzers

Video Credit: Evident Corporation - Industrial Microscopy

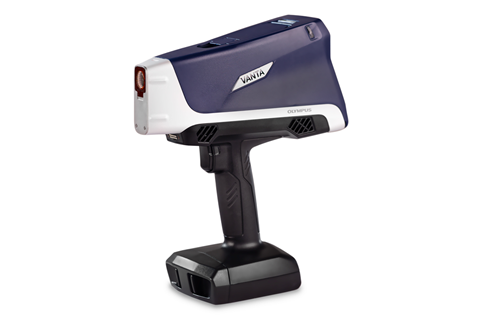

Vanta Max

  • Highest analytical capabilities
  • Robust analysis
  • Mining exploration
  • Mineral analysis
  • Soil testing
  • Environmental analysis

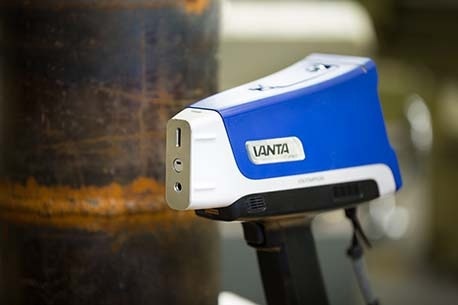

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

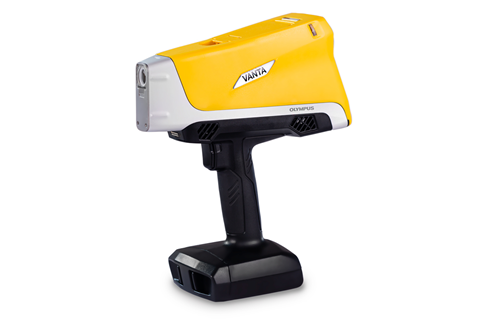

Vanta Core

  • Analytical excellence
  • Faster analysis
  • Alloy identification
  • Metals analysis
  • Precious metals analysis

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

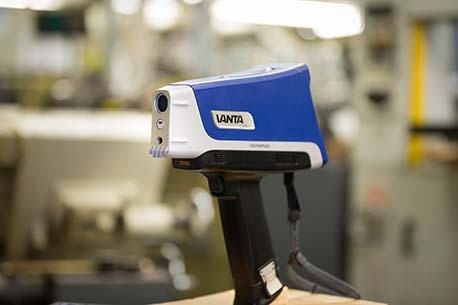

Comfortable and Rugged for All-Day XRF Testing

Featuring an improved ergonomic design, Vanta handheld XRF analyzers are highly efficient tools for prolonged use in both field and laboratory settings. Paired with their demonstrated durability and user-friendly interface, Vanta analyzers can enhance operational efficiency even in the most challenging environments.

  • Standard 3-year warranty protects investments
  • IP54 rated for resistance to water and dust
  • Balanced handle minimizes hand fatigue
  • Secure and comfortable grip for all-day testing
  • Built to pass a 4-foot drop test (MIL-STD-810G)

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

Productive XRF Analysis Workflow

Tailored for technicians, the Vanta analyzer streamlines handheld XRF testing, ensuring maximum user throughput. Seamlessly navigate through tasks with its modern, intuitive interface and optional browser-based software.

  • Review, share, and manage XRF results on a PC, tablet, or smartphone with the option for a wireless connection for seamless data integration
  • Benefit from the latest features instantly thanks to automatic software updates
  • Improved application support with the option to add custom analytical capabilities
  • Access the Evident Connect cloud for seamless data and fleet management

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

Trusted Portable XRF Technology

Thousands of users worldwide employ Vanta handheld XRF analyzers for a variety of purposes. Vanta Max and Core analyzers provide accuracy and precision for portable XRF analysis, building on their proven performance.

  • The exclusive Axon Technology of the Vanta series uses ultra-low-noise electronics to increase the X-Ray count rate for quick, precise, and repeatable results
  • Regardless of the instrument the user uses, Axon Technology offers exceptional test-to-test and instrument-to-instrument repeatability, ensuring that the initial test is identical to the final test

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

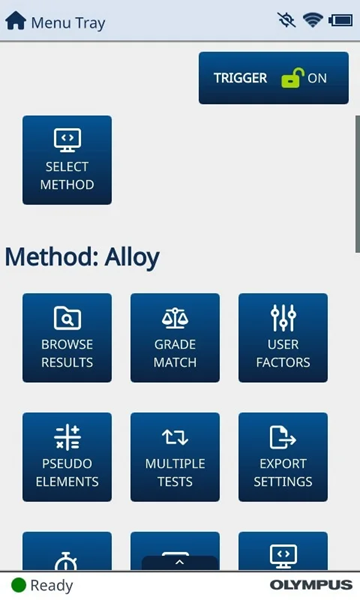

Software Features

Optimized for the Workflow

With the many features available on Vanta™ handheld XRF analyzers, users can tailor the analyzer to their unique workflow. The software on the analyzer makes it easy to personalize the device to the user’s preferences. With the help of cutting-edge software features, users can quickly recover their investment and get the most out of the analyzer.

Software Features That Deliver Fast ROI

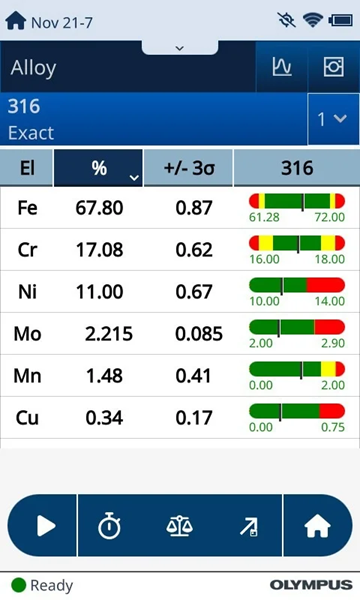

Vanta handheld XRF analyzers are equipped with cutting-edge software features that optimize their performance.

  • SmartSort: Saves time by automatically adjusting test duration based on material; results for aluminum grade can be obtained in as little as one second.
  • Grade-matching text messages: Real-time and/or pop-up messages with familiar trade or grade names or special handling instructions to reduce user training and increase efficiency.
  • Nominal value: Based on grade specifications, the likelihood of elements that are invisible to XRF can be automatically determined.
  • Residual Library: Establish a maximum allowable concentration for residual elements in grade families.
  • Grade comparison on the screen: Compare similar grades side by side to determine which alloy matches nominal and residual values the closest.
  • Empirical Mode: For complex analysis.

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

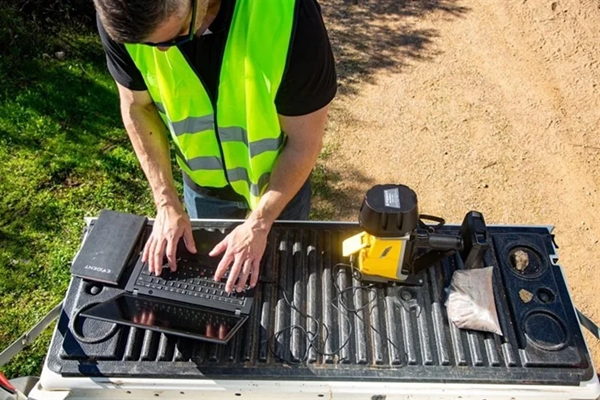

Connected and Cloud Capable

  • Wi-Fi® and Bluetooth®: Connect to the Evident Cloud or other devices with Wi-Fi® and Bluetooth.
  • Embedded GPS: Users can map and record element locations by matching exact GPS coordinates with test results.
  • Streamlined reporting: Combine GPS data, XRF test results, and images from the optional 5-megapixel panoramic camera for inclusive archiving and streamlined reporting

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

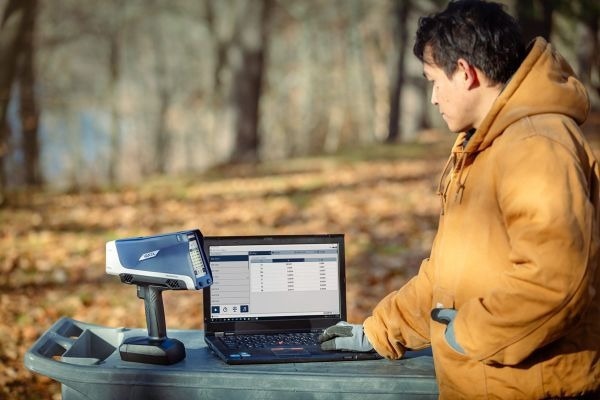

Customizable for Efficient Fleet Management

When used in conjunction with Vanta Desktop PC software, Vanta analyzers are intended to facilitate effective fleet management.

  • Easily customizable user interface: Optimize throughput and efficiency by configuring the interface as users see fit.
  • Favorites: Select which features or tests show up on the analyzer’s main screen.
  • Usernames and Passwords: Managers have the ability to generate distinct usernames and passwords for every individual.
  • Push custom setups: Users can quickly and simply distribute specifications and custom setups to every analyzer in the fleet.
  • Simple data export: Bluetooth, wireless LAN, and USB flash drives can all be used to export data quickly and simply.

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

Specifications

Vanta Specifications. Source: Evident Corporation - Industrial Microscopy

. .
Dimensions (W x H x D) Max and Core: 10.4 × 29.6 × 24.1 cm (4.1 × 11.6 × 9.5 in.)
Weight Max: 1.9 kg (4.17 lb) with battery, 1.67 kg (3.67 lb) without battery
Core: 1.85 kg (4.06 lb) with battery, 1.62 kg (3.56 lb) without battery
Excitation Source 4-watt X-ray tube with application-optimized anode material: rhodium (Rh) or silver (Ag) Max (Rh), Core (Rh): 8–40 kV
Primary Beam Filtration Max and Core: 8-position autoselected filter per beam per mode; optional collimation to 3 mm diameter beam spot
  Max: Large-area silicon drift detector
Core: Silicon drift detector
Power Removable 14.4 V Li-ion battery (with hot-swap capability on Max only) or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max
Display 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control
Operating Environment Temperature range for Max and Core: -10 °C to 50 °C (14 °F to 122 °F), and continuous full duty cycle with optional fan
Humidity: 10% to 90% relative humidity non-condensing
Drop Test Military Standard 810-G 4-foot (1.3 M) drop test
IP Rating and Detector Shutter Max and Core: IP54 dust protected and protected against water splashing from all directions
Max and Core: Solid detector shutter to help prevent detector damage
Pressure Correction Max and Core: Built-in barometer for automatic altitude and air density correction
GPS Max: Embedded GPS / GLONASS receiver
Operating System Linux cloud enabled with user fleet manager capability
Data Storage microSD™ slot with removable 1 GB industrial SD card included
USB (2) USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth®, and USB flash drives
(1) USB 2.0 type mini-B port for connection to computer
Wireless LAN Supports 802.11 b/g/n (2.4 GHz) cable optional USB adapter
Bluetooth Supports Bluetooth® with an optional USB adapter
Aiming Camera Full VGA CMOS camera (optional)
Panorama Camera 13-megapixel CMOS camera with autofocus lens (optional)
Warranty Max and Core: Three-year warranty
Selected Optional Accessories Max and Core: Field Stand, Soil Foot, Holster, Work Station, Weld Mask, Hot Heel, and Probe Shield

*High-temperature performance may vary due to electrical component availability.

Applications

Vanta analyzers deliver rapid results across a diverse array of applications. Tailored software features for specific applications empower operators to optimize their analyzers, simplifying report generation and ensuring traceable results.

Vanta for Car Catalyst Recycling

Vanta handheld XRF analyzers offer swift and precise measurement of the valuable platinum group metals (PGMs) such as palladium (Pd), platinum (Pt), and rhodium (Rh) present in car catalytic converter material. Real-time measurements facilitate efficient sorting and pricing evaluation of catalyst scrap across the recycling circuit.

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

Vanta for Environmental Assessments

Vanta handheld XRF analyzers for soil and sediment analysis offer quick and accurate environmental remediation and assessment data. Easy to use, Vanta analyzers are built rugged for demanding field applications.

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

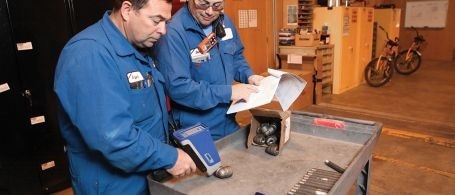

Vanta for Manufacturing Quality Control/Assurance

Vanta handheld XRF analyzers are used in manufacturing quality assurance and quality control (QA/QC) processes to provide highly specific material chemistry analysis. They enable quick and accurate identification of pure metals and alloy grades, which is crucial in applications where material accuracy is essential.

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

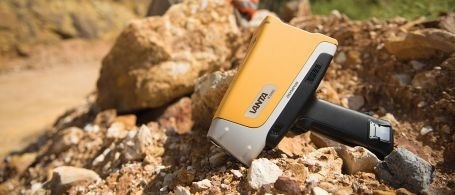

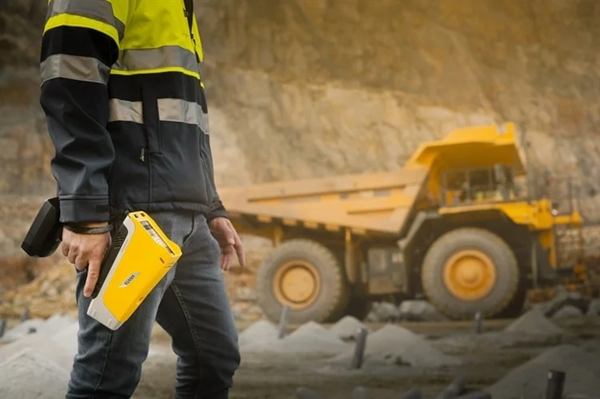

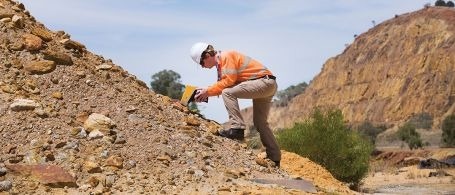

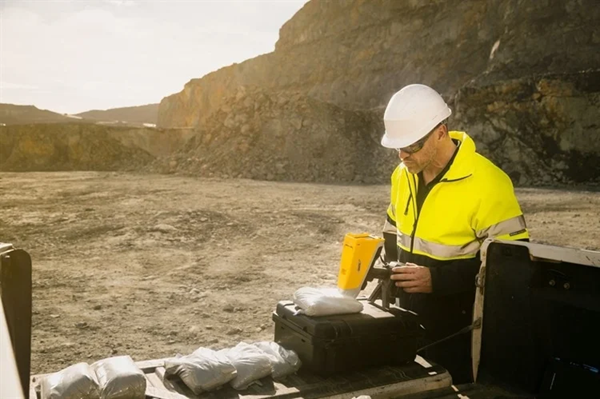

Vanta for Mining and Geochemistry

Vanta handheld XRF analyzers are utilized in mining and geochemistry for immediate on-site elemental analysis. They are instrumental in geochemical exploration, mining grade control, ore processing, and remediation processes.

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

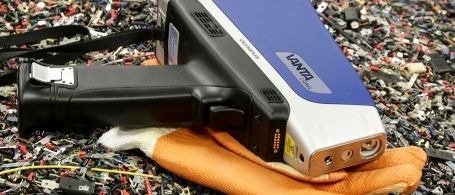

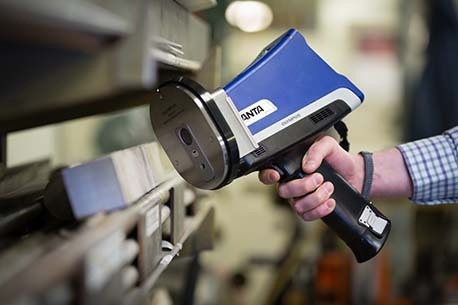

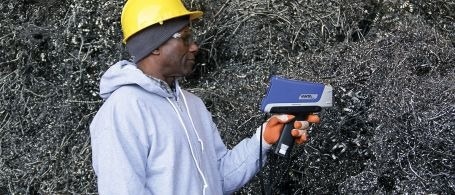

Vanta for Scrap Recycling

Vanta handheld XRF devices for recycling and scrap sorting are IP55 or IP54-rated, depending on the model, ensuring resilience against rain, dirt, and dust. They are also subjected to drop tests using US Department of Defense methods (MIL-STD-810G) to prevent breakages and maximize uptime in challenging scrap yard environments.

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

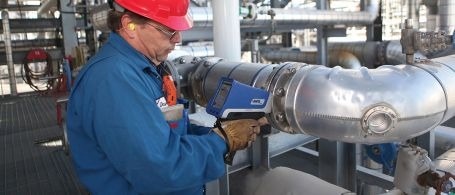

Vanta for PMI

Vanta handheld XRF analyzers for Positive Material Identification (PMI) offer highly specific material chemistry analysis. They swiftly and accurately identify alloy grades, ensuring precise alloy installation in critical locations.

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

Vanta for Regulatory and Safety Screening

Vanta handheld XRF analyzers are employed to guarantee compliance with the Restriction of Hazardous Substances (RoHS) and other local or international regulatory laws. These analyzers offer on-the-spot chemical analysis of consumer products, allowing for quick scanning to detect the presence of lead (Pb), cadmium (Cd), mercury (Hg), chromium (Cr), and bromine (Br).

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

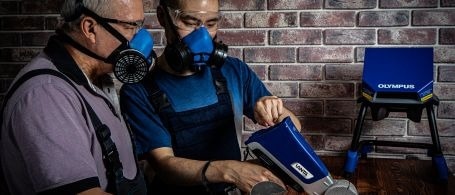

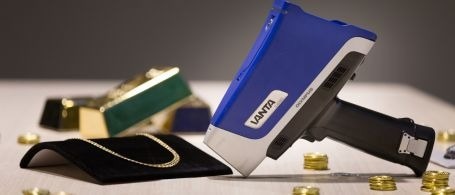

Vanta for Precious Metals Analysis

When it comes to jewelry analysis and automobile catalyst recycling, Vanta handheld XRF analyzers for precious metals offer quick, precise alloy chemistry and karat classification.

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

Accessories

The Vanta analyzer is Evident's most advanced handheld X-Ray fluorescence (XRF) device. With IP certification and drop testing, this robust analyzer delivers rapid and accurate element analysis, ensuring laboratory-quality results right in the field.

Evident offers a suite of optional accessories tailored to maximize the efficiency of your Vanta analyzer across various applications.

Vanta Work Station

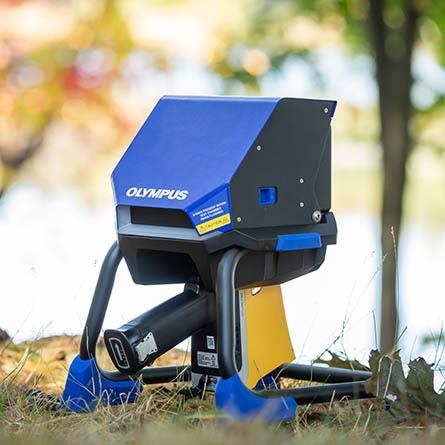

The Vanta Work Station, a portable device, operates on battery power, allowing for convenient testing while on the move. Its design features a fully interlocked lid and 360-degree shielding, making it suitable for analyzing bagged, prepared, or liquid samples, as well as small objects like jewelry and circuit boards. Users can control the analyzer through either the Vanta PC software or the Vanta mobile app within this enclosed setup.

The versatile Vanta Work Station works well for the following uses:

  • Environmental analysis
  • RoHS/consumer products
  • Geo exploration
  • Mining process control

The Work Station’s solid platform allows for extended test sessions. It allows users to begin a test in the Work Station and accomplish other tasks while the Vanta instrument conducts the analysis. Users can be certain that the sample is stable and its position is repeatable, resulting in high-quality data and efficient sample throughput.

Easy to Use

  • Balanced lid system to prevent slamming
  • Control the Vanta analyzer and transfer data wirelessly or via a USB cable
  • Easy sample placement—no front wall or lip obstruction
  • Simply click the Vanta analyzer into place and release it with the press of a button

Portable

  • Battery or AC powered for benchtop or field use
  • The chamber and legs separate for easy storage
  • Easy to transport and set up
  • Optional carrying case

Designed for Safety

  • Fully shielded and interlocked chamber: 107 mm × 178 mm × 179 mm (4.2 in. × 7 in. × 7 in.)
  • Radiation warning LEDs are large, clear, and prominent

Small Footprint

  • 346 mm×326 mm (14.4 in.×13 in.)

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

Other Vanta Accessories

Vanta Soil Foot



The Vanta Soil Foot offers a stable three-point support system for the Vanta analyzer, enabling hands-free analysis. This accessory proves especially convenient during prolonged test durations.

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

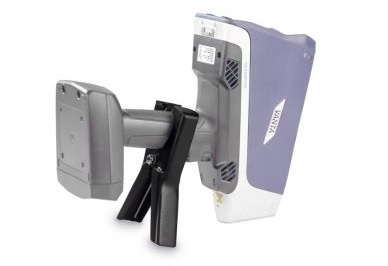

Vanta Field Stand

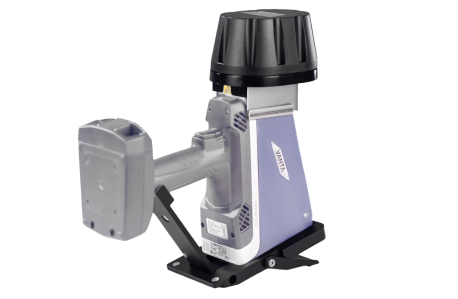

For analyzing small items like samples contained in cups or bags, the Vanta Field Stand provides a lightweight and portable test stand along with a shielded sample chamber. This stand is easy to pack and offers convenience for use while on the go, away from the office.

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

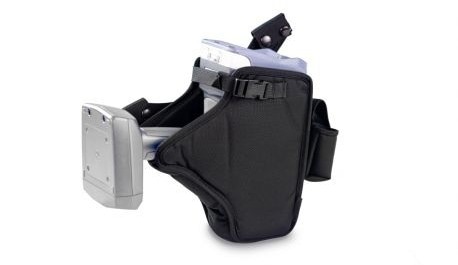

Vanta Holster

Ensure the safety and accessibility of your Vanta analyzer with the Vanta Holster. This holster features a strap with a secure fastener to keep the instrument in place, MOLLE/PALS webbing for versatile attachment options, and brass shielding for added protection.

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

Vanta Probe Shield

The Probe Shield offers enhanced protection against backscattered radiation when conducting tests on low-density samples. This add-on significantly minimizes X-Ray backscatter towards the user, providing an elevated level of safety during testing procedures.

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

Vanta Hot Heel

To ensure effective testing of high-temperature piping or equipment reaching up to 900 °F (480 °C), the Hot Heel minimizes heat transfer to the Vanta analyzer and mitigates surface contamination. The Hot Heel kit includes high-temperature measurement windows.

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

Vanta Weld Mask

The Weld Mask prevents interference from the base metal when analyzing weld beads. For quick analysis of weld beads, this accessory collimates the beam to a 3 mm wide slot, replacing the faceplate of the Vanta analyzer.

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy

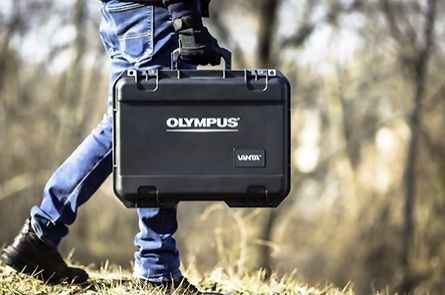

Vanta Carry Case

A dependable hard-shell case for safely transporting the handheld Vanta XRF analyzer.

Vanta Max and Vanta Core - Maximize Efficiency in the Field and Lab

Image Credit: Evident Corporation - Industrial Microscopy
