Precious Metal Analysis with the Vanta™ GX

With the help of the Vanta™ GX precious metal analyzer, users can buy and sell gold, coins, jewelry, and other valuables with confidence. The analyzer offers a cost-effective way to determine the purity and composition of gold and other precious metals. It is accurate, simple to use, and non-destructive.

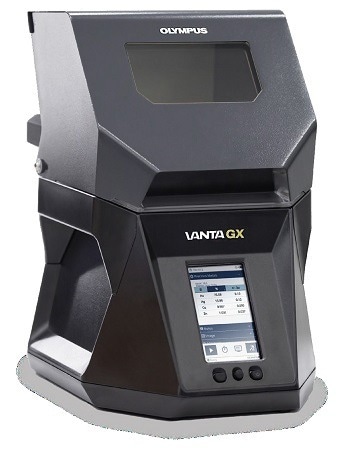

The countertop device, which is small and stylish for the showroom, quickly and accurately verifies the fineness and karatage of precious metals.

  • Users can quantify the gold, silver, and other useful metals in valuables on-site to rapidly and precisely price items
  • Determine fake items quickly with an alert for gold plating and detection of risky elements (for example, cadmium and lead)


Image Credit: Evident Corporation (XRF/XRD)


Vanta analyzers are highly regarded for their precision and accuracy and are used by thousands of customers all over the world.

  • Alternative techniques, such as acid scratch tests utilized for gold, could be hazardous and inaccurate
  • The Vanta GX analyzer makes use of trusted technology to confirm the valuable metal content and other elements in users’ valuables
  • Users can get actionable test outcomes on the spot utilizing the safe and precise testing


Image Credit: Evident Corporation (XRF/XRD)

The Vanta GX test results show a plating alert.

The Vanta GX test results show a plating alert. Image Credit: Evident Corporation (XRF/XRD)


Users can get an answer by simply pushing a button.

  • Comes with an intuitive software and data transfer for smooth reporting
  • Current outcomes available on the built-in touch screen or on a bigger screen to describe the outcomes to customers
  • Images gathered from the built-in camera pair with test outcomes for precise documentation


The Vanta™ GX analyzer, a cost-effective gold, silver, and precious metal testing solution, offers a quick return on investment.

  • Quickly identify fakes and precisely price valuables with composition results in seconds
  • Provides one-year warranty to safe-guard the investment
  • Up to 27 chemical elements can be detected, revealing a material’s true value
  • The availability of two models provide flexibility, allowing users to invest only in the technology required


The Vanta GX analyzer displays karat results. Image Credit: Evident Corporation (XRF/XRD)

Vanta GX Models

Table 1. Source: Evident Corporation (XRF/XRD)

Vanta GX SDD Vanta GX PIN
Premium precious metal analysis Affordable precious metal analysis
High-performance gold analysis Reliable gold analysis
More precise Precise
Faster test times Faster test times for fast results
Premium model Affordable price



The Vanta GX analyzer has been designed in such a way that it provides strong features in a small countertop system for secure and trustworthy precious metals testing. Users are not exposed to radiation since the system uses X-Rays in a regulated setting:

  • During testing, the analyzer locks tightly and only permits X-Ray emission when the lid is closed
  • The instrument’s front and back have bright safety lights that flash when X-Rays are being released
  • The X-Ray shielding glass window safeguards the user while allowing constant viewing of valuables for better customer trust

The Science Behind the Technology

X-Ray fluorescence, otherwise called XRF, is a nondestructive method for elemental analysis that has been utilized in the family of Vanta™ analyzers.

All Vanta analyzers utilize the proprietary Axon Technology™ for improved XRF signal processing. Ultra-low-noise electronics drive the boundaries of X-Ray detector performance, heading to higher X-Ray counts per second and faster and reliable outcomes.

Vanta™ GX Specifications

Table 2. Source: Evident Corporation (XRF/XRD)

. .
Overall Dimensions (H × W × D) Closed: 35.73 cm × 23.93 cm × 32.41 cm (14.07 in. × 9.42 in. × 12.76 in.)
Open: 38.78 cm × 23.93 cm × 39.08 cm (15.27 in. × 9.42 in. × 15.39 in.)
Sample Chamber Dimensions (H × W × D) 9.39 cm × 17.67 cm × 17.34 cm (3.70 in. × 6.96 in. × 6.83 in.)
Weight 10 kg (22 lb)
Excitation Source 2-watt X-ray tube: 35 kV, 50 μA maximum Tungsten (W) anode
Detector Silicon PIN diode
Silicon drift detector
Thermo-electrically cooled, high resolution
Power 100–240 VAC, 50–60 Hz, 70 watts at 18 V and 3.9 A
Display Full color touch-screen display: 800 × 480 (WVGA) 16-bit transflective LCD with capacitive touch screen supporting gesture control
Operating Environment Temperature: -10 °C to 40 °C (14 °F to 122 °F)
Humidity: 10% to 90% relative humidity, noncondensing
Operating System Linux
Application software:
Evident-proprietary data acquisition and processing package
Camera Full-color VGA camera
Warranty One-year standard warranty
Standard Accessories AC power adapter:
• Output: 70 W, 18 VDC, 3.9 A with straight-barrel output connector
• Input: 100–240 VAC, 50–60 Hz

1.8 m (6 ft) AC line cord, 18 AWG cable with UL listed, IEC male plug, 0.9 m (3 ft) USB cable
Spot Size 6 mm nominal diameter
Connectivity 1 mini USB and 2 full size USB
