Total Tank Level System with Innovative Magnetostrictive Probe Design

The Total Tank Level System (TLS) from Drexelbrook is the cutting edge in magnetostrictive probe design. This allows peerless accuracy for tank level measurement as well as multi-variable functionality (total level, interface level, volume and temperature).

This variable functionality crosses over to the probe construction, which can make the Total Tank Level System explosion proof and/or intrinsically safe for use in Class I, Div 1 and Zone 0 hazardous area locations.

The tank level sensors are rigid yet flexible, due to the 316SS used in fabrication. There is also the option of single or dual NPT mountings, along with a wide range of accessories to suit any application.

The initial installation is simple, with no further calibration necessary afterward.

Key Features

  • 316SS or flexible probes for measurements up to 50 ft1
  • 1 mm Accuracy
  • FM, FMc, ATEX and IECEX (Class I Div 1 Approvals)
  • Power supply: 10 - 30 VDC, Um = 30 V1
  • Pressure rating: 1000 psi (69 bar)
  • Temperature range:  -40 °F to 125 °C (-40 °C to 257 °F)1
  • STExplorer software available to configure the 4-20 mA/HART versions

Note 1: Depending on output and probe selection

Product type

Tank level indicator, Tank level sensor, Float level switch, Fluid level sensor, Level controller, Level gauge, Level indicator, Level probe, Level sensor, Level system, Level transmitter, Liquid level sensor, Oil level transmitter, Water level detector, Water level sensor, Tank volume sensor, Fuel tank volume

Request more information to see how we can help you with a magnetostrictive level transmitter that suits your need.

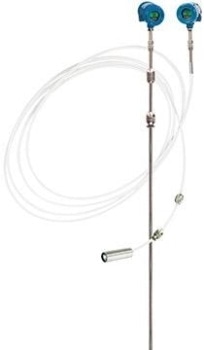

Ametek Drexelbrook Total Tank Level System
