Thermo Scientific HAAKE MARS Rheometer

The Thermo Scientific™ HAAKE™ MARS™ Rheometer is designed to meet the demands of advanced quality control and applied R&D. This very flexible Modular Advanced Rheometer System (MARS) provides easy handling, accuracy, and a number of application-oriented solutions for complete material characterization. The New Connect Assist functionality permits easy, error-free exchange of measuring geometries and temperature modules to accelerate the workflow. The flexibility of the HAAKE™ MARS™ suits the rapidly changing testing needs of today and the future.


The HAAKE™ MARS™ next generation rheometers offer:

Future Orientation

  • Modern rheometer platform
  • Wide range of accessories to perform new analytical requirements, including the Thermo Scientific™ RheoScope module for micro viewing and Thermo Scientific™ HAAKE™ Rheonaut module for FTIR analysis
  • Complements the Thermo Scientific™ HAAKE™ Viscotester™ iQ rheometer to easily transfer techniques from R&D to QC


  • One-piece frame with enhanced force balance and stability
  • Nano torque performance for sensitive samples – strong enough for everyday use


  • Connect Assist for geometries and temperature modules with quick-fit coupling and instant recognition, as well as automatic push-button rotor release
  • Integrated Web server to monitor data online
  • Multi-lingual Thermo Scientific™ HAAKE™ RheoWin™ software completely automates measuring, assessment routines for professionals and beginners


  • Two-column design with high flexibility for customization
  • Open system architecture accepts a wide range of temperature and measuring geometries to improve accuracy and measuring abilities

Application Solutions

Application-specific accessories and workflows for pharmaceuticals, polymers, petrochemical, cosmetics, inks, coatings, paints, food, construction and building materials.


  • Solid clamps for Dynamic Mechanical Thermal Analysis (DMTA)
  • SER tool from Xpansion Instruments™ to measure elongation
  • Controlled test chamber (-150 °C to +600 °C)
  • RheoScope module to monitor polymer melting behavior
  • Software tools such as Spectra, TTS, and MWD


  • Broad series of titanium or Hastelloy™ pressure cells that measure up to 300 °C and 600 bar
  • RheoScope module for crystallization behavior studies (“Waxing”)
  • Tribology cell for friction measurements of fats and lubricants

Paints, Inks, and Coatings

  • Sample hood including solvent traps
  • High-shear measuring cell to simulate spaying, atomization processes
  • A variety of UV curing measuring cells including thermal assisted curing
  • Double cone, ring rotor, disposable and other specialized measuring geometries

Pharmaceuticals and Cosmetics

  • Submersion flow cell
  • DuNoüy ring and bicone arrangements for interfacial rheology
  • RheoScope module for stability testing, crystallization, etc.
  • Special holder for microtitier plates or original binds
  • Extra software tool for 21 CFR part 11


  • Universal Peltier temperature control unit allows switching between coaxial cylinders, plates, and cone within seconds
  • Universal container holder to measure in original sample container
  • Pressure cell to mimic cooking processes
  • RheoScope module to explore crystallization and melting processes
  • Texture analysis of solid materials with sample fixture for bending, breaking tests

Construction and Building Materials

  • Measuring cell for building materials with vane rotors and exchangeable lamella profiles
  • Serrated and sandblasted measuring geometries to avoid sample slippage
  • Universal container holder to measure in original sample container

Thermo Scientific™ HAAKE™ MARS™ Rheometer

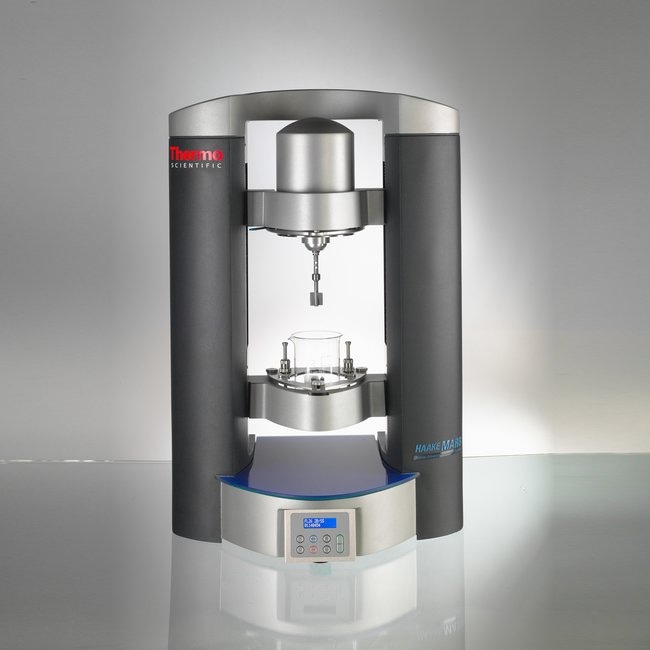

HAAKE™ MARS™ Rheometer - Picture 1

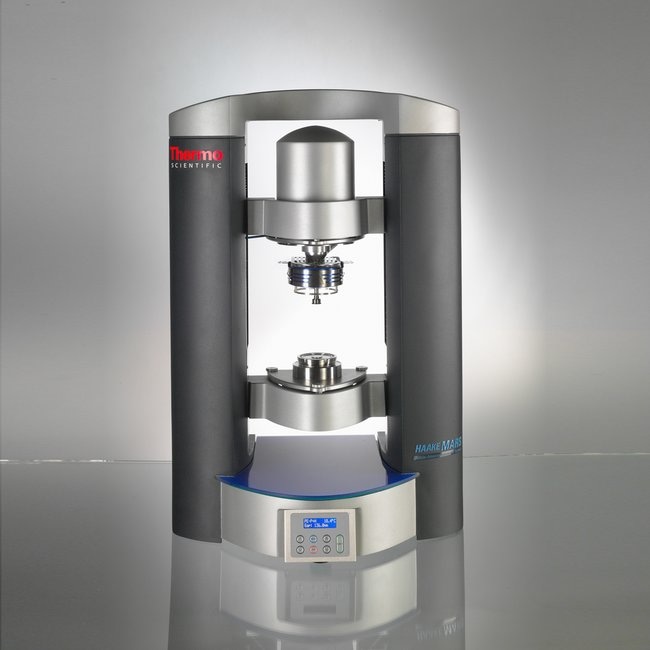

HAAKE™ MARS™ Rheometer - Picture 2

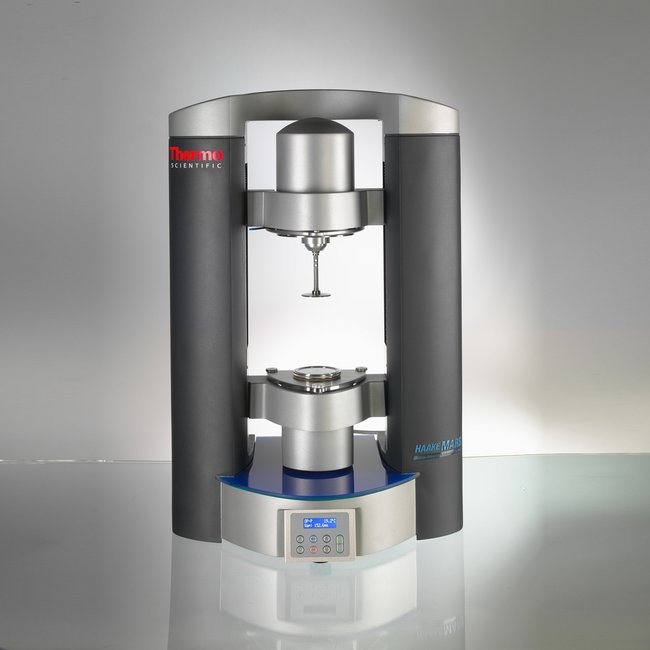

HAAKE™ MARS™ Rheometer - Picture 3

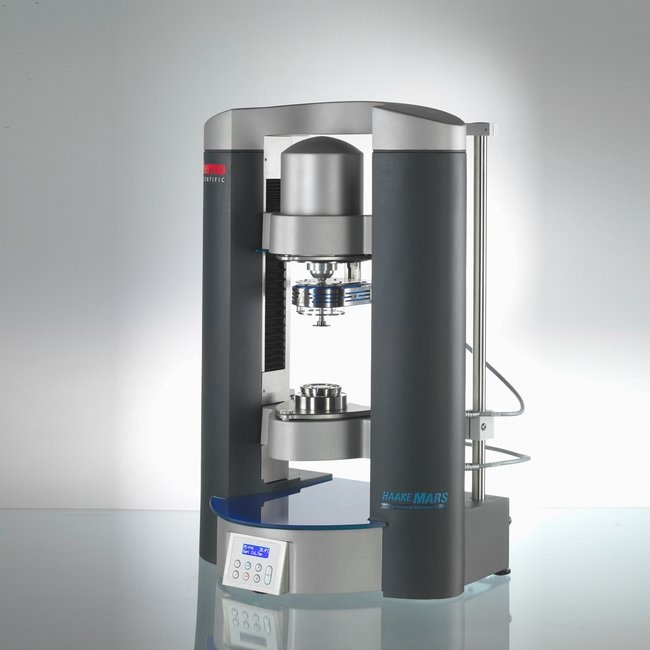

HAAKE™ MARS™ Rheometer - Picture 4

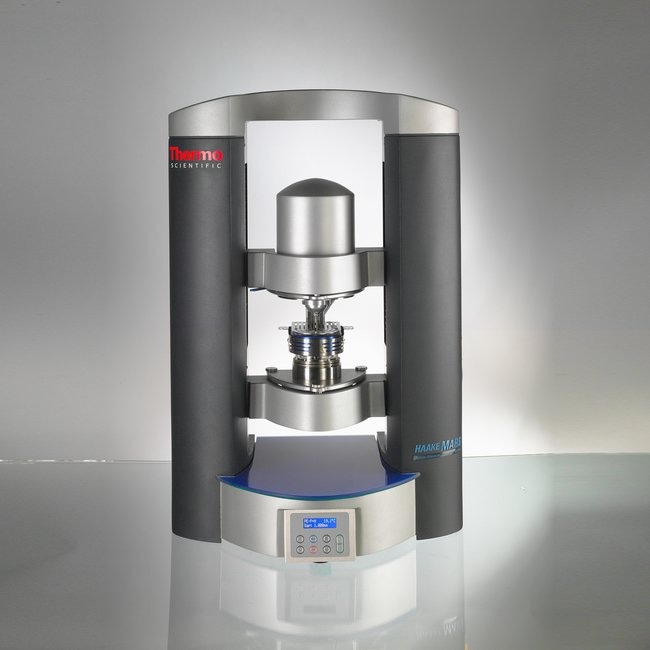

HAAKE™ MARS™ Rheometer - Picture 5
