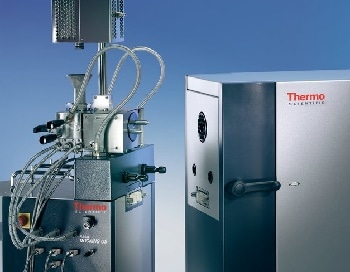

HAAKE PolyLab OS Modular Torque Rheometer

The Thermo Scientific™ HAAKE™ PolyLab™ OS is an advanced measuring mixer and extruder system that is focused on the specific requirements in research and development. The HAAKE™ PolyLab™ OS offers customers with process-relevant material data including melting behavior, influence of additives, shear stability, temperature stability, and melt viscosity.


This measuring mixer and extruder system supports customers in process modeling operations such as compounding polymers with additives to decrease viscosity, flammability, etc., scale-up extrusion processes by using various L/D ratios to extrapolate to a master process line, mimicking master processes using only as little as 50 g of material to enhance extrusion or mixing in respect to temperature and shear profile or extrusion of profiles, strands, or films in combination with optical or rheological measurements.

Consequently, users can enhance their process parameters, develop test specimens, or perform quality control on incoming and outgoing goods relating to dispersion, viscosity, or plasticizing behavior. The drive unit of the HAAKE™ PolyLab™ OS system includes all elements of a torque rheometer that are required to drive the measuring system (precise speed controller) and to observe the torque (accurate torque sensor) required to process the test material.


System architecture based on an open industry standard for flexible connection of various sensors and systems

Ease of operation

Quick and simple connection of measuring attachments without shifting application and operating software

Remote Controller

Run the system from a distance and observe the complete test from a different location

Service and Reliability

Decrease down-times with remote diagnostics and have the ability to swap components with precalibrated replacements

Return on Investment (ROI)

Time-saving instrument usage and meaningful results relative to the application boost product quality and decrease development time

Compatible With

The system has lab mixers as well as single and twin-screw (conical and parallel) extruders to provide complete data to users.
