Lasair® III 110 Aerosol Particle Counter

Need more information?

Let us help you with your inquiries, brochures and pricing requirements

Request A Quote
Download PDF Copy

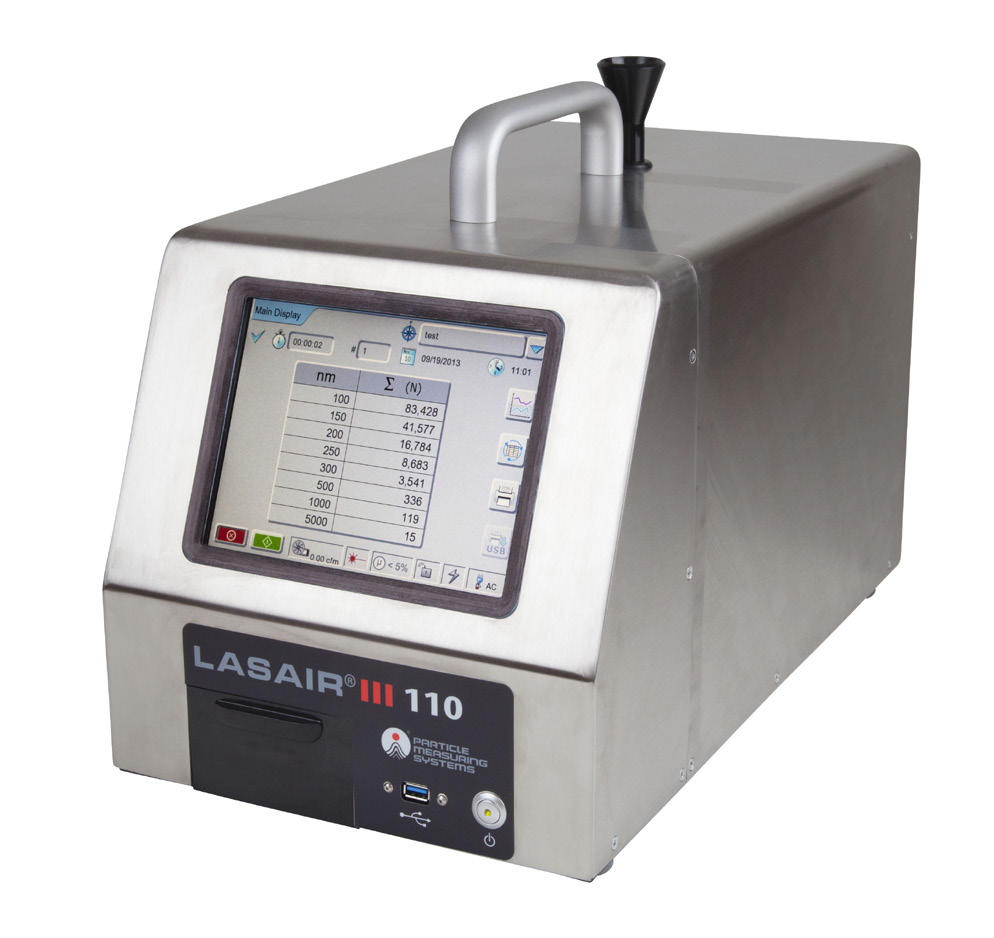

The Lasair^® III 110, equipped with a laser diode, is an advanced 0.1 µm particle counter featuring a 1.0 CFM flow rate.

With comprehensive features and unequaled accuracy, the Lasair III 110 offers reduced operating costs and the reliability and longevity to support its three-year laser warranty.

Features

8 user-adjustable sizing channels from 0.1 – 5.0 µm
Built-in thermal printer
Diode laser
Integrates up to 4 environmental sensors
Large, 8.4” color touchscreen display for simplified use
Optional high-efficiency exhaust filter for ISO Class 1 – 2
Optional onboard batteries for over 6 hours of continuous mobile use
Quiet carbon-free blower/pump for portable applications
Saves up to 10,000 samples for review, sorting, data filtering, and printing
USB data download to flash memory key

Benefits

Reduce Defects

Actual detection of 0.1 µm particles
Full range of accessories for monitoring in different applications
Patented smart flow technology eliminates traditional undercounting errors in manifold sampling
Real-time measurement of yield-impacting particles
Use as mobile counter to localize the source of particles

Increase Productivity

Calculations and reports for ISO 14644-1 or FS 209E
Control cleanroom monitoring remotely via web browser: set-up, sample, display, print, download data, and upload sample recipes
Data download to Excel or USB flash memory key
Industry-leading battery life for continuous mobile use
Interfaces with Facility Net software for comprehensive data management
Quiet operation improves work environment
Saving/reloading recipes reduces time to certify cleanroom

Cost Effective

Easy to clean/wipe down; designed to minimize particle traps
Eliminates the need for frequent, costly laser cleaning
Long-lasting cooled diode with a 3-year laser warranty
Optional critical orifice configuration can use house vacuum for aerosol manifold applications
Rugged, chemical-resistant, stainless steel casing
Use the same particle counter for ISO Class 1 – 9 applications

Applications

Cleanroom and mini-environment monitoring
Facility certification to ISO 14644-1 (including 2015 revision) or FS 209E
High-sensitivity applications
Manifold sampling (with Aerosol Manifold II)
Process gas monitoring (with High Pressure Diffuser)
Troubleshooting/mobile applications
Ultraclean zones (ISO 1–2)

Specifications

Source: Particle Measuring Systems

.	.
Channel thresholds	0.1, 0.15, 0.2, 0.25, 0.3, 0.5, 1.0, and 5.0 µm by default – All 8 channels are user-adjustable
Counting efficiency	50% @ 0.1 µm
Flow rate	1 CFM (28.3 LPM); monitored and adjusted electronically for portable applications
Calibration	Materials traceable to US National Institute of Standards and Technology (NIST); ISO 21501-4 Compliant
Test methodology	0.1 µm particles verified by Differential Mobility Analysis; larger sizes verified by transmission electron microscopy
Maximum concentration	@ 10% coincidence loss: > 950,000/ft³ (optional diluter required for ISO Class 8+); automatic coincidence alarm
Zero count level	Exceeds JIS (Japanese Industrial Standards), allowing use in ISO Class 1 and ISO Class 2 rooms
Laser source	Laser diode, 6 W (de-rated to 2.5 W), 810 nm, infrared
Laser cooling	Thermoelectric chilling (Peltier cooler), heat sink, dedicated cooling fan
Warranty	3-year warranty on laser module, 2-year warranty on other components
Communication modes	Ethernet (PMS Protocol, Modbus, Web Server) or RS-232; four 4-20 mA outputs (3 particle, 1 status); TTL/pulse output; USB key for CSV data download
Environmental sensors	Optional Temp/RH probe; integrates up to 4 external sensors via 4-20 mA input
Display	8.4” color VGA display (640 x 480); IR touchscreen CIP65 rated
Display languages	English, French, German, Italian, Japanese (Kanji), Korean, Spanish, Chinese (traditional or simplified), Russian, Polish, Portuguese
Printer	Built-in thermal printer
Reports	Sample print strips; final reports for ISO or FS 209 cleanroom qualification; averages of multiple runs; print-on-alarm; sampling configuration printouts
Remote operation	Use a web browser to operate the unit; save or load recipes
Key software features	Recipes, scheduled sampling, historical data filtering, sorting and review, password protection
Data storage	10,000 data sets (includes particle and environmental data, plus location, time, etc.)
Data and sampling security	Stored data records cannot be altered; sampling recipes can be password-protected
External surface	Stainless steel chassis, glass display screen, and anodized aluminum bottom, all ESA/ESD compliant
Cleaning materials	Bleach, ethyl/isopropyl alcohol, peroxide/quaternary ammonium solutions
Monitor cleanliness	Internally filters pump exhaust (99.99+% @ 0.1 µm)
Dimensions (l, w, h)	11.6 x 19.3 x 13.7 in ( 29.5 x 49.0 x 34.8 cm)
Weight	34.5 lb (15.6 kg) without batteries; 38.5 lb (17.5 kg) with 4 optional batteries
Power	100 – 240 V, 3 A, 50 – 60 Hz; optional on-board batteries and external charger
Operating environment and sample conditions	Temperature: 59 – 86 °F (15 – 30 °C) Humidity: 1 – 95% non-condensing Ambient pressure @ altitudes from 0 – 7,000 ft (0 – 2,134 m)
