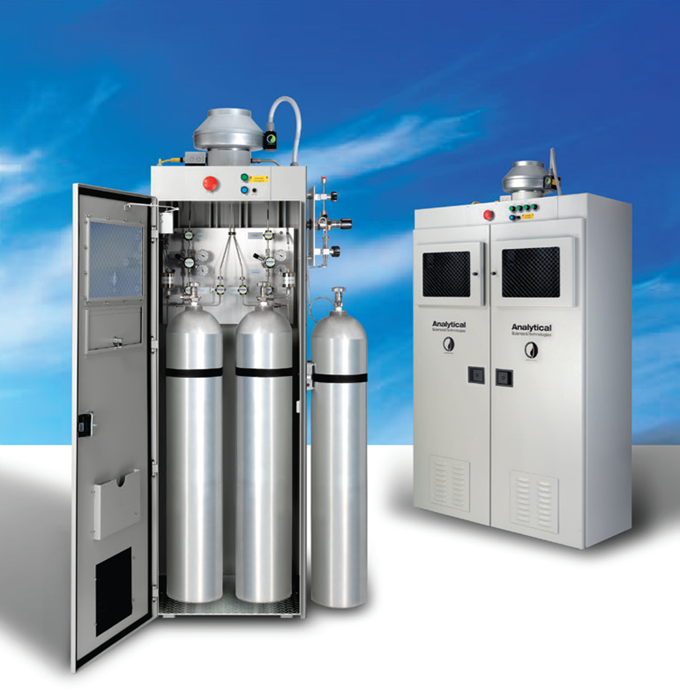

ASTG systems are built on a high-quality platform. The system is designed for easy configuration and efficient customization using pre-engineered components—allowing it to meet your specific needs while staying within budget.
ASTG's standard starts with a high-quality enclosure and precision-crafted, low maintenance components.
Right-Sized Cabinets
- 8” outlet duct designed to accommodate Toxic Gas Detectors and Flow Switches
- Available in two- and four-cylinder platforms
- 20” deep cabinets for easier integration of equipment and computers
Solid, Durable Construction
- 1/8” thick steel with fully welded seams
- Integral floor hold-down bolt mounting points
- Maintenance-free door actuators
- Replaceable diamond plate floors in hard-wearing zinc finish
- Secure cylinder supports
- Side-opening door with a window or an upward-opening door with a fixed window
- Sprinkler-head ready 1/2” NPT mounting points
- Tough powder-coated finish inside and out
- Under-floor supports to prevent bending under load
- Unistrut® compatible vertical rails to mount gas management panels and equipment
- Ventilation louvers sized for standard dust filter elements
- Wire-reinforced safety glass viewing ports
Image Credit: ASTG
Flexible Gas Management Panel Options to Suit Your Needs
- Substantial 3/16” thick gas management panels for added durability.
- All equipment is front-mounted, allowing for easy access and maintenance.
- Cost-effective manual valve systems are designed for straightforward operation via convenient access ports.

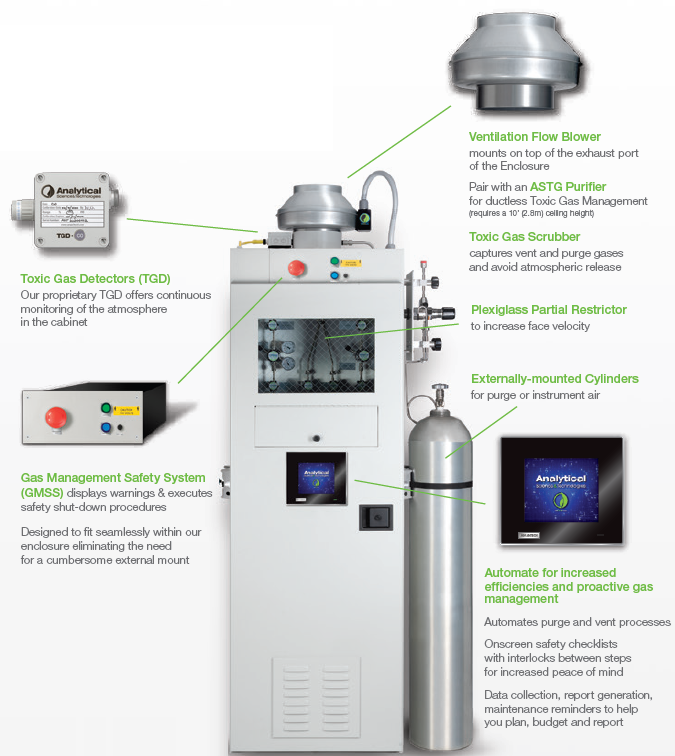

Available Options Include
- Two-stage regulators for precise final pressure control
- Auto-changeover with integrated two-stage regulation
- External purge systems to prevent potential atmospheric release of toxic gases
- Vent gas scrubbers for safe handling of toxic exhaust gases
- Automated cylinder isolation valves (available with Toxic Gas Safety System option)
- Automated valves to support programmable operating sequences (with touch screen computer option)
- External mounting brackets for air and purge cylinders

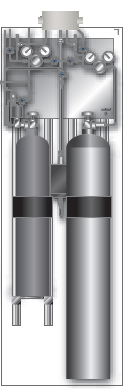

Two-Cylinder Enclosure. Image Credit: ASTG
Four-Cylinder Enclosure. Image Credit: ASTG

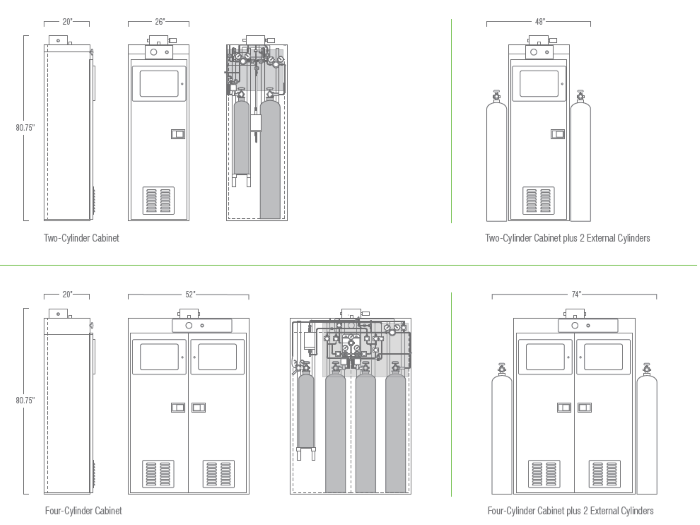

Configure to Meet the Needs with Pre-Engineered Options
Image Credit: ASTG
Why Pre-Engineered Options?
- Pre-tested for enhanced safety and peace of mind
- Enables a shorter order-to-delivery timeframe
- Cost-effective and competitively priced
Image Credit: ASTG
