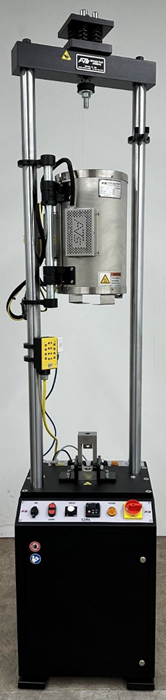

The Series 2610 SIGMA Creep/Stress Rupture System includes the well-established, user-friendly SIGMA WinCCS software for system control, data acquisition, and report generation.
Types of Tests
- Hydrogen Embrittlement
- Creep Crack Growth
- Compression
- Slow Strain Rate
- Stress Rupture
- Creep
- Creep Rupture
- Stress Relaxation
Download the Brochure for More Information
Standard Features
- A compact footprint that helps conserve valuable lab space
- Precision Service 4021 Knife Edge Alignment Couplings for ASTM E1012-compliant alignment
- Built-in UPS for a systematic shutdown in the event of loss of electrical power
- High-accuracy stepper motor drive system
- Automatic Hot Step Loading functionality
- Automated up-loading designed specifically for stress rupture testing
- Over-temperature controller for added safety in the event of thermocouple failure
Options

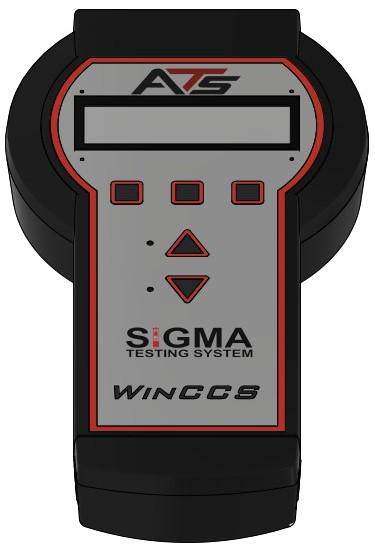

SIGMA WinCCS Portable Display Module. Image Credit: Applied Test Systems
- Portable Display Module with jog controls
- Digital Displacement Option (Creep)
- Displacement Input from LVDT’s
- Stress Relaxation / Constant Stress Option
- Cyclic Capability
- Furnace: Series 3210 Furnace for use up to 1100 °C or 1200 °C, as well as higher temperature options and ovens
- Extensometer Frames; many types available
- Displacement Encoders
- High Temperature load train components
Image Credit: Applied Test Systems
Test Standards
- ASTM E139
- ASTM E292
- ASTM E328
- ASTM E1457
- ASTM F519
- ASTM G129
- EN 2002-005
- ISO 204
Download the Brochure for More Information
Product Specifications
Source: Applied Test Systems
| |
|

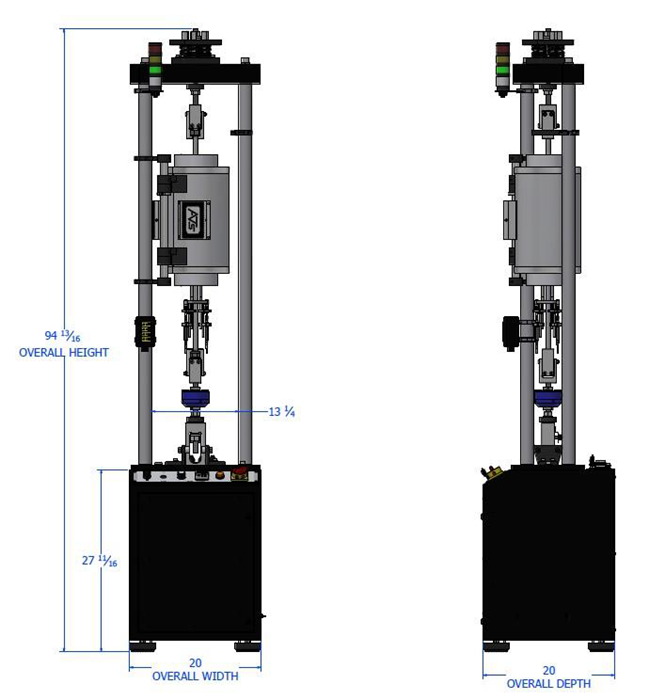

| Dimensions |
20 in. (50.8 cm) W. x 20 in. (50.8 cm) W. X 95 in. (241 cm) H |
| Calibrated Load Range |
1,000 lb. (4.44 KN) to 10,000 lb. (44.4 KN) |
| Maximum Capacity |
10,000 lb. (44.4 KN) |
| Electrical Power Requirements |
115 VAC, 1 Ph., 50 / 60 Hz. 40 amp* / 230 VAC, 1 Ph., 50 / 60 Hz. 25 amp* |
