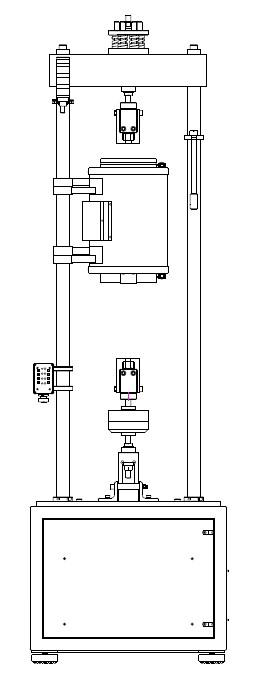

ATS provides a range of test fixtures and load frames designed to meet ASTM standards for both compression and tensile testing of plastic pipes.
Features
- Robust test frames engineered to deliver precise, uniform axial or compressive loads—ideal for ring deflection and split tensile testing
- High-strength gripping and compression platens minimize slippage and deformation, even under peak stress conditions
- Interchangeable fixture components allow for quick, efficient setup changes to accommodate various pipe diameters and wall thicknesses
Download the Brochure for More Information

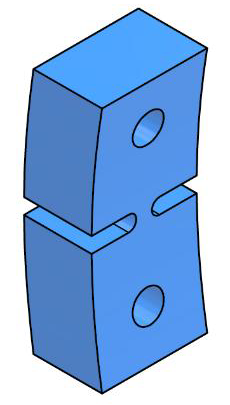

Procedure D & E Specimen. Image Credit: Applied Test Systems
ASTM D2290 (Tensile)

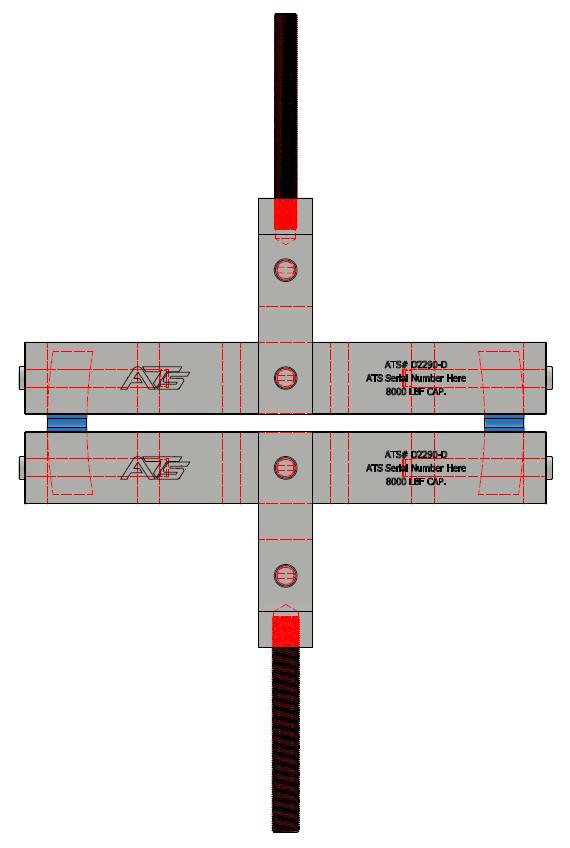

Depending on the pipe size, two different test fixtures are used. For pipe sizes under 14 inches (Procedures A, B, and C), the test specimens are full-section width. The tension test fixture is self-aligning and includes two half-moon adapters. It attaches to the fixed and movable members of the load frame, ensuring that the applied pull is directed perpendicular to the split axis of the test fixture.
For Procedures D and E, the test specimens are ring segments and are secured to the fixture using the supplied pins. This fixture is also mounted to the fixed and movable members of the load frame so that the applied force remains perpendicular to the fixture’s split axis.
ATS test frames automatically calculate the Hoop Tensile Strength and include the results in a summary report.

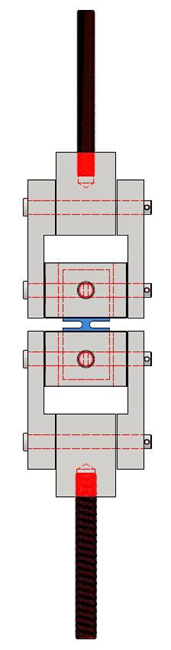

Side view of testing attachment and specimen. Image Credit: Applied Test Systems

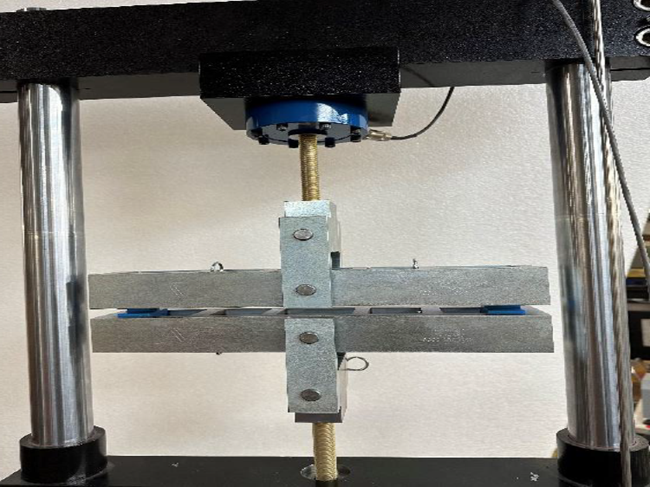

Plastic Pipe Tension test being performed on an ATS UTM. Image Credit: Applied Test Systems
Download the Brochure for More Information
ASTM D2241/D2412 / D2665 (Compression)
For ASTM D2241 and D2665, ATS provides steel plate flattening fixtures designed for pass/fail testing to determine whether splitting, cracking, or breaking occurs.
For ASTM D2414, ATS offers steel flattening fixtures along with a deformation indicator to monitor changes during testing.
ATS test frames also calculate Pipe Stiffness and generate a summary report with the results.
