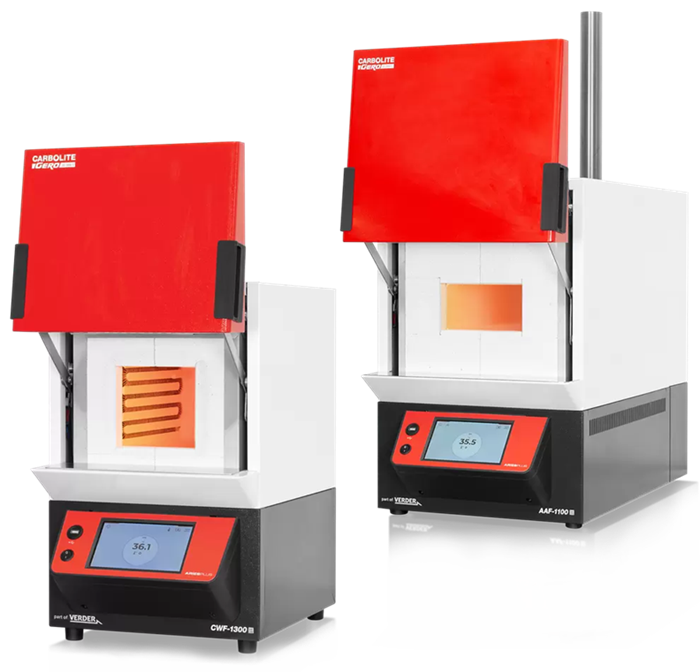

The AriesPlus touch screen controllers provide programmable control, with 99 segments configurable as ramp, step, or dwell, as well as the ability to operate relays.
The AriesPlus series features a capacitive touchscreen that simplifies program selection and editing, allows scheduling by day and time, logs setpoint and temperature data, supports multiple languages, and provides secure user access.
Additionally, 50 distinct program profiles can be stored and retrieved by the AriesPlus series. Internal memory is used for data logging, which can be transferred to a PC if it is connected to a network or to the nearby USB port. Ethernet connectivity is installed as a default feature.
User Level Functionality
Standard Features

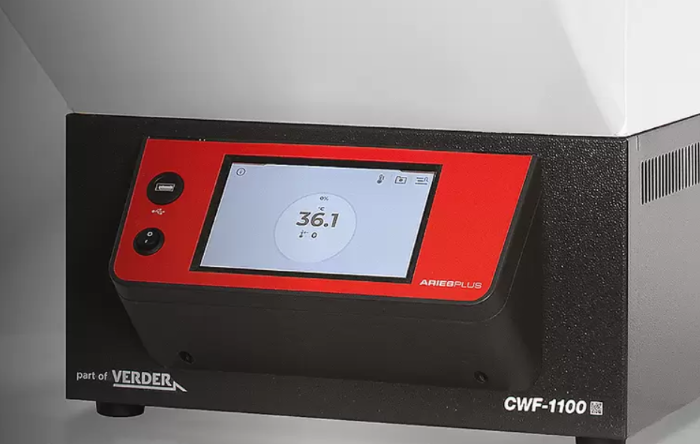

Image Credit: Carbolite
- Live process graph display
- Setpoint and program profile control
- Ethernet communication
- Remote connection via a browser
- Panel-mounted USB socket
- User-level security
- Settings include nine languages
- 7.0’’ color capacitive touch screen
- 50 programs with 99 segments
- Data logging to internal memory
- 7-day time scheduler

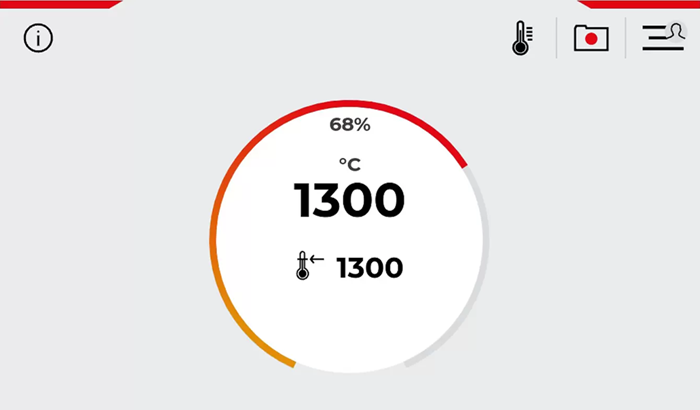

Single Zone
Image Credit: Carbolite
- Over-temperature control: Integrated independent over-temperature prevention with a clear alarm signal; ideal for unsupervised operation and valuable load protection.
- Program segment events: Options like turning on a cooling fan or altering gas flows are activated by program segment events.
- Alarm activation: Door locking and process accuracy monitoring are made possible by alarm alternatives.

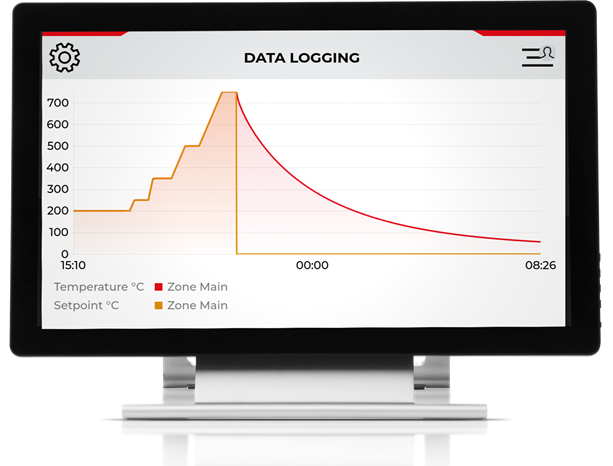

Remote Network Connection
Image Credit: Carbolite
The AriesPlus controller can be accessed directly through any computer browser, with no software installation needed.
- Data-Logging download to PC
- Remote viewing
- Log in and navigate
- Create and edit programs
Video Credit: Carbolite
