Multiple Sphere Super-resolution Optical Imaging Lens MS-SMAL

The Multi-Spheres SMAL uses a novel arrangement of seven microspheres in a honeycomb structure, designed to broaden the lateral field of view while preserving the super-resolution imaging features inherent to SMAL technology.

This setup facilitates concurrent high-resolution imaging across several neighboring areas, enhancing throughput and efficiency for sophisticated microscopy applications.

Product Codes:

MULT-001-BIO-M25-IR → M25 thread, 60 mm par., multisphere, immersion

MULT-001-BIO-RMS-IR → RMS thread, 45 mm par., multisphere immersion

MULT-001-SEM-M25-IR → M25 thread, 60 mm parfocality, multisphere, dry

MULT-001-SEM-RMS-IR → RMS thread, 45 mm parfocality, multisphere, dry

Key Features

• The seven-microsphere honeycomb configuration allows for broader lateral coverage
• Enables simultaneous imaging across various spheres, thereby enhancing throughput
• Preserves sub-diffraction imaging capabilities
• Improves efficiency for surface inspection and material characterization
• Compatible with sophisticated microscope platforms like Nanoro or other optical microscopes from third parties

Intended Applications

• Inspection of microchip and semiconductor surfaces
• Biological imaging with high throughput
• Characterization of advanced materials
• Quality control of surfaces in manufacturing

Specifications

Source: LIG Nanowise Limited

Usage Notes

• Optimal for scenarios that necessitate extensive imaging coverage and elevated throughput
• Most appropriate for surface examination and multi-cellular biological imaging
• The design strikes a balance between complexity and coverage, ensuring wide-area nanoscale imaging

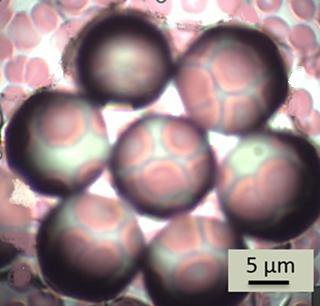

Red blood cells (erythrocytes) imaged with a Multi-Spheres SMAL (Super-resolution Microsphere Amplifying Lens); each microsphere provides a localized super-resolved sub-field. Image Credit: LIG Nanowise Limited
