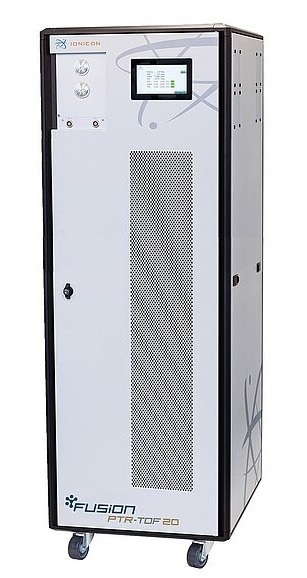

The FUSION PTR-TOF 20 delivers exceptional analytical performance with the highest mass resolving power and outstanding sensitivity. Powered by the latest generation ioniTOF analyzer, the Invion source for rapid reagent ion switching, and the ultra-clean FUSION PTR reaction chamber, it achieves detection limits below 1 pptv, setting a new standard in precision.
- Detection limit: < 1 pptv
- Sensitivity: > 20000 cps/ppbv
- Mass resolution: > m/Δm 20000
Unparalleled Analytical Power
All IONICON PTR-TOF instruments deliver quantitative analysis of the vast majority of VOCs, all without the need for any sample pretreatment. They capture the entire mass spectrum in a split second. With a mass resolution of 20,000 to 25,000 m/Δm (FWHM), the FUSION PTR-TOF 20 offers a critical advantage for analyzing even the most complex samples with precision and confidence.
The FUSION PTR-TOF 20 features IONICON’s genuine PTR-MS technology, patented TRU-E/N ion chemistry, and is available in a bipolar configuration, allowing the use of both positive and negative reagent ions for an unparalleled range of detectable organic and inorganic compounds.
Download the Brochure for More Information
Technical Specifications
Source: Ionicon Analytik
| . |
. |
| Mass resolution |
m/Δm > 20 000 (FWHM)
up to m/Δm 25 000 with limited sensitivity |
| Sensitivity |
m/z 121: 5 000 cps/ppbv @ m/Δm 20 000 (FWHM)
m/z 121: 20 000 cps/ppbv @ m/Δm 10 000 (FWHM) |
| Detection limits |
m/z 121 < 1 pptv (1 min) @ m/Δm 20 000 (FWHM)
m/z 121 < 5 pptv (1 sec) @ m/Δm 20 000 (FWHM) |
| Ion Source |
New Invion ion source for switching between H3O+, NH4+, NO+ or O2+, with bipolar option: also CO3- |
| PTR reactor |
Ultra-clean, gastight FUSION reaction chamber |
| Weight |
< 200 kg |
| Dimensions (w × h × d) |
60 × 175 × 80 cm |
| Power supply |
115/230 V, typical operation: < 1500 W |
*Specifications are subject to change without prior notice.
