Continuous Flow Cryostat for Microscopy and Imaging

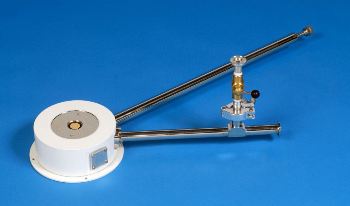

The ST-500 continuous flow cryostat from Janis Research is developed specifically for use in imaging, microscopy, and high spatial resolution photoluminescence.

The integration of low thermal-expansion support structure and inner vibration isolation causes nanometer scale vibration and drift levels. The cryostat geometry provides a short working distance that can be adapted for use with high magnification optics, and allows mounting on standard translators and microscope stages.

The ST-500 device has a variable flow cryogen transfer line that can convey liquid nitrogen or liquid helium to a two-stage heat exchanger and sample mount.

The ST-500 system includes a flexible high-efficiency variable flow cryogen transfer line. This line delivers liquid helium or liquid nitrogen to a two-stage heat exchanger and sample mount. The ST-500 is portable, easily mounted in a variety of configurations, and can be used both in transmission and reflection geometries.

Key Features

The main features of the ST-500 are as follows:

  • Portable
  • Flexible high-efficiency variable flow cryogen transfer line
  • Easily mounted in numerous configurations
  • Can be used both in transmission and reflection geometries.

Custom configurations include:

  • Ultra-compact
  • Options for micro-spectroscopy techniques
  • Nano-positioning stages from attocube
  • Sample extension for magnetic measurements
  • Breakout box accessory for electrical measurements
  • Ultra high vacuum
  • Superconducting magnet for high resolution microscopy
  • Micro-manipulated cryogenic and vacuum probe system for chips, wafers and device testing

Other optional accessories are available, including:

  • A variety of window materials and sizes
  • Interchangeable sample mounts for different sample thicknesses
  • Magneto-optical system (including optional rare earth magnets)
  • Electrical and RF feedthroughs
  • A complete system solution including temperature controllers, pumping systems and storage dewars
