DSX1000 Digital Microscope for Failure Analysis

Olympus’ DSX1000 digital microscope is designed to enable faster failure analysis. It comes in four easy-to-use models—Entry, Tilt, High-Resolution, and High-End—to suit a variety of needs. Discover its time-saving features, including:

  • Rapid macro-to-micro viewing
  • A wide range of easy-to-change lenses
  • A telecentric optical system for accurate measurements
  • Switch between six different observation methods by pushing a button

DSX1000 Objective Lenses

Olympus offers a range of 17 DSX objective lenses, including super long working distance and high numerical aperture options. The lenses provide flexibility to achieve an extensive range of images.

  • Super Long Working Distance Objective Lens: offers a long working distance between the sample and lens.
  • High-Resolution, Long Working Distance Objective Lens: provides a long working distance and high resolution.
  • High-Performance, High Numerical Aperture Objective Lens: delivers high performance at the nanoscale.

The Tool of Choice for Failure Analysis

A combination of speed, accuracy, and repeatability makes the DSX1000 digital microscope the ideal tool for failure analysis.

Macro to Micro Versatility

Preliminary Inspection and Micron-Level Analysis with One System

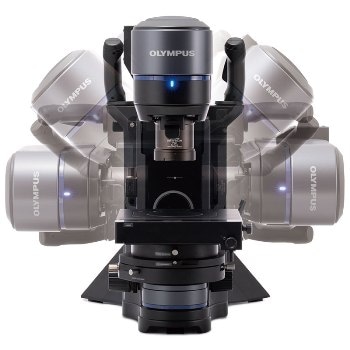

  • View samples from multiple angles
  • See the entire picture with a 20X to 7000X magnification range
  • Reduce the possibility of crashing into the sample
  • Supported models—Tilt and High-End

DSX1000 for Failure Analysis

Image Credit: Olympus Scientific Solutions

Multiple Observations with a Single Click

Instant Switching Saves Time

  • Select from six observation methods, and switch between them with a single click
  • All observation methods are available at all magnifications
  • Supported models—Tilt, High-Resolution, and High-End

DSX1000 for Failure Analysis

Image Credit: Olympus Scientific Solutions

Reliable Results

Guaranteed* Measurement Precision and Accuracy

  • Reliable measurements with on-site calibration
  • Guaranteed* measurement precision enables users to be confident in their measurement results
  • Supported models—Entry, Tilt, High-Resolution, and High-End

*To guarantee XY accuracy, calibration work must be undertaken by an Olympus service technician.

DSX1000 for Failure Analysis

Image Credit: Olympus Scientific Solutions

Five Benefits of the DSX1000 Series Digital Microscope Over Traditional Digital Microscopes.
Source: Olympus Scientific Solutions Americas NDT

All-in-one system with a wide magnification range With the DSX1000 digital microscope, users can complete inspections with a single easy-to-use system. With a traditional digital microscope, two microscopes—a high-magnification model and a low-magnification model—are required to complete an inspection.
High-resolution image at high magnification With the DSX1000 digital microscope, long-working distance and high resolution are achieved in one objective. With a traditional digital microscope, resolution decreases as magnification increases.
Long working distance objectives With the DSX1000 digital microscope, users can view uneven samples without bumping into them. With a traditional digital microscope, the objective can crash into the sample and potentially damage it.
Multiple observations with a single click With the DSX1000 digital microscope, all six observation methods are available at all magnifications. With a traditional digital microscope, just one or two observation techniques are available, restricting what can be observed in the sample.
Guaranteed accuracy and precision With the DSX1000 digital microscope, both repeatability and accuracy are guaranteed at all magnifications. With a traditional digital microscope, the measurement accuracy is not guaranteed.



Image Analysis Software Improves Speed and Efficiency of Inspection

OLYMPUS Stream Software

The OLYMPUS Stream software enables rapid and efficient inspection workflows for image acquisition, image analysis, quantitative measurements, reporting, as well as advanced materials science inspection tasks.

OLYMPUS Stream Software

Image Credit: Olympus Scientific Solutions
