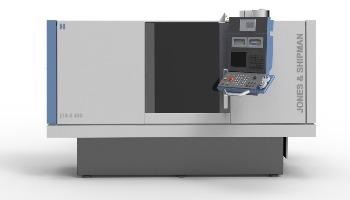

The Jones & Shipman 10 grinding machine from Hardinge is a perfect tool to perform production cylindrical grinding of small- to mid-sized components. The machine is fitted with an angular or straight plunge wheel head with a maximum wheel size of 5.9″.
An ideal combination of performance-to-price, the Jones & Shipman 10 machine was developed by bearing in mind customers’ needs. The machine boasts the fluently technical experience of the complete Hardinge Grinding portfolio with stringent manufacturing processes in compliance with global standards, thus ensuring the quality for each machine.
The easy-to-use graphical software from Hardinge is ideal for a production environment and it is easy for users to get running parts quickly. For users who look for a production OD grinder, the Jones & Shipman 10 is a splendid product with high ROI.
Features
- Wheel-head slide axis powered by ball screw, which is driven and regulated by Fanuc A.C. digital servo with linear encoder, as well as air purged
- A sturdy high-precision machine featuring large, completely supported slideways that offer maximum rigidity and support
- Engineered with automation in mind for robot loading systems
- Quicker speeds and feeds and the enhancement of the most recent ceramic, CBN, and diamond wheel technologies for decreased cycle times
- Wheel/spindle speed of 2,410 rpm offers a maximum of 63 m/second
- Lowest programmable increment of 0.0001 mm
- Wheelhead equipped with External Wheel Spindle for mounting up to Ø500 x 150 mm wide external wheels on the left- or right-hand side. The external spindle is equipped with a belt-driven rolling element bearing cartridge with up to 15 kW variable speed motor drive
- Optional full-auto or semi-auto balancing unit
- Optional in-process gauge for process control of high-volume production
- Optional axial positioning probe enables a quick installation
- Fanuc CNC control with Graphical User Interface (GUI), 10.4″ TFT color display, full keyboard, and 3 Gb (1 Gb User) solid-state memory
- Optional Acoustic Gap Elimination to fast feed onto external diameters with parts that have irregular stock amounts
Jones & Shipman 10
Video Credit: Hardinge Inc.
Technical Data
Source: Hardinge Inc.
| Specification |
|
Specification |
|
| Capacity |
|
Wheel Slide |
|
| Center Height |
190 mm |
Total infeed |
350 mm |
| Swiveling diameter |
Ø380 mm |
Max. travel speed |
10 m/min |
| Distance between centers |
650/1000 mm |
Min. programmable increment |
0.0001 mm |
| Weight between centers |
100 kg |
Resolution (Option) |
0.00005 mm |
| Wheel head |
|
Table slide |
|
| Wheel speed |
Max. 63 m/s |
Max. stroke length |
750/1150 mm |
| Wheel size |
Ø500x80(150)x203.2 mm |
Max. travel speed |
12 m/min |
| Main motor power |
9/15 kW |
Min. programmable increment |
0.0001 mm |
| Work head |
|
Resolution (Option) |
0.00005 mm |
| Speed range |
0-1000 rpm |
Control system |
|
| Spindle nose taper |
A2-6 |
CNC control |
Fanuc CNC 0i |
| Motor power |
1.8 kW |
Software |
GUI |
| Output torque |
11 Nm |
Display |
10.4" TFT |
| Weight load with chuck |
48 kg |
Interface |
USB/Ethernet/Rs232 |
| Tailstock |
|
Environment |
|
| Poppet diameter |
Ø 60 mm |
Noise |
<75 dB(A) |
| Center travel |
30 mm |
Ambient temperature |
0~40 °C |
| Poppet taper |
MT 4 |
Humidity |
≤75% |
| Fine adjustment range |
+/- 100 μm |
Miscellaneous |
|
| Graduation |
Ø 0.0005 mm |
Color of enclosure |
RAL 7035 light gray |
| |
|
Color of bed |
RAL 7021 dark gray |
| |
|
Gross weight |
6200/7200 kg |
All data are subject to change without notice
