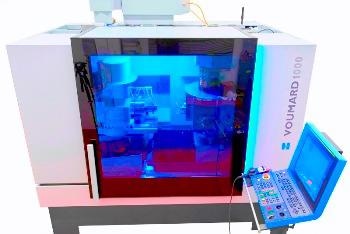

VOUMARD® 1000

Hardinge launches the VOUMARD® 1000 internal grinding machine, the new standard in ID Grinding. The novel system helps enhance the productivity and accuracy of a majority of the demanding machining applications.

The stiff base and hydrostatic guideways on all axis, along with the new user interface on the controls, will help meet the most challenging needs of users.

The VOUMARD® 1000 has nearly endless configuration options for the most extensive range of grinding operations, and thus provides a high price-to-performance ratio.

Features

  • Hydrostatic guideways
  • Innovative HYDROLIN®
  • Linear motor available with thermodynamics
  • Comes with a small machine design
  • Control Fanuc31i with Blue Solution (also comes with Black Solution for CAM Functionality)
  • New Kinematic Machine Design comes with two rotary and two linear Axis
  • Decrease to two high-end axes with the positioning in the sub-micron range
Hardinge Voumard 1000

Video Credit:  Hardinge Inc.

Introducing VOUMARD® 1000

Video Credit:  Hardinge Inc.

LIVE Hardinge - VOUMARD® 1000 Demo (English) - October 14, 2020

Video Credit:  Hardinge Inc.



Technical Data

Source: Hardinge Inc.

. .
Workpiece length 300 mm
Swing diameter <300 mm
Max. workpiece diameter <300 mm
Supply voltage 400 V / 460 V
Max. workpiece weight 50 kg at a max. speed of 3,000 rpm
Max. workpiece weight 200 kg at a max. speed of 1,000 rpm
Z axis travel 450 mm rapid traverse max. 20,000 mm / min
X-axis travel 450 mm rapid traverse max. 20,000 mm / min
Swivel range B1 axis 330 degrees with a swivel time - 3 sec.
Swivel range B2 axis 225 degrees with a swivel time - 2 sec.

All data is subject to change without notice
