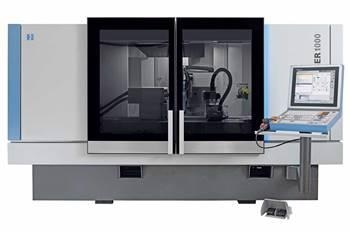

Kellenberger® 1000

The new Kellenberger® 1000 grinding system from Hardinge features systematically improved, established elements while integrating newly developed components, like the synchronous tailstock and automatic cylinder correction system. Thus, the system offers a sophisticated platform for flexibly meeting all the different needs of customers.

Technical Data

Source: Hardinge Inc.

  metric imperial
Main specifications
Distance between centres mm inch 1000 / 1600 40 / 63
Grinding length mm inch 1000 / 1500 40 / 59
Centre height mm inch 200 / 250 / 300 7.87 / 9.84 / 11.81
Weight of workpiece between centres kg lbs 150 / 200 / 300 330 / 441 / 660
Load on chucked work Nm lbft 160 / 320 / 750 118 / 236 / 553
Mains voltage required     3 x 400 V / 50 Hz /
3 x 460 V / 60 Hz
3 x 400 V / 50 Hz /
3 x 460 V / 60 Hz
Power consumption depending on
equipment
A A 35-63 35-63
Space required / length x width mm inch 3600 x 2050 /
4600 x 2050
141.73 x 80.70 /
181.10 x 80.70
Longitudinal slide: Z-axis
Travel mm inch 1170 / 1670 46.06 / 65.74
Rapid traverse speed m/min ipm 20 787
Resolution µm µinch 0.1 0.004
Wheelslide: X-axis
Travel mm inch 365 14.37
Rapid traverse speed m/min ipm 10 393
Resolution µm µinch 0.1 0.004
B-axis
Resolution ° ° 0.00002° 0.00002°
Swiveling range ° ° max. 240 max. 240
Wheelhead general
Drive motor water-cooled kW hp 10 13.4
Peripheral grinding wheel speed m/s ft/min max: 45 max: 8860
Wheelhead Universal
Grinding wheel dimensions,
lefthand side
mm inch 400 / 500 16 / 20
Grinding wheel dimensions,
righthand side
mm inch 300 / 400 / 500 12 / 16 / 20
Wheelhead Tandem-type
Grinding wheel dimensions,
lefthand side
mm inch 400 / 500 16 / 20
Grinding wheel dimensions,
righthand side
mm inch 400 / 500 16 / 20
Wheelhead Diagonal
Grinding wheel dimensions,
lefthand side
mm inch 400 / 500 16 / 20
Grinding wheel dimensions,
righthand side
mm inch 400 / 500 16 / 20
Internal grinding attachment
Bore for spindles up to mm inch 120 4.72
HF spindles MFM rpm hp 10 / 15 13.4 / 20.1
Rotational speed 1224 / 42 min-1 rpm 42‘000 42‘000
Rotational speed 1242 / 60 min-1 rpm 60‘000 60‘000
Workhead Standard / Direct drive 200 /
Direct drive 300
Rotational spindle speed min-1 rpm 1-1000 / 1-1000 /
1-500
1-1000 / 1-1000 /
1-500
Internal taper     MT5 / MT5 / MT6 MT5 / MT5 / MT6
Short taper holder, outside ° ° ISO 702-1: Size 5 /
Size 5 / Size 8
ISO 702-1: Size 5 /
Size 5 / Size 8
Micro-adjustment sec sec ±60 ±60
Tailstock
Internal taper     MT4 MT4
Retraction of sleeve mm inch 50 optional 80 1.96 optional 3.15
Micro-adjustment µm µinch ±150 ±6
CNC control system
Heidenhain     GRINDplus 640 GRINDplus 641
FANUC     Fanuc 31i Fanuc 31i

All data are subject to change without notice

Features

With the new Kellenberger 1000, Kellenberger has been making success a continuous story. The new Kellenberger 1000 integrates functional design and high-precision technology. Hydrostatic guides ensure maximum dimensional accuracy in grinding tasks with interpolating axes.

High positioning accuracies and speeds are ensured by direct drives for the rotary axes. Generous X and Z axes strokes together with the platform concept for grinding head positions and dressing systems assure flexibility and enable application-specific configurations.

The established integral transportation concept (hook machine) has been retained and decreases machine commissioning times while ensuring a small installation area. Energy-efficient concepts and durable hydrostatic guides ensure a highly secure capital investment.

Machine Options

  • Interface for fire extinguisher system
  • Higher coolant pressure of up to 10 bar
  • Replacement support for tailstock and grinding wheels
  • Automatic door drive

Controls

  • FANUC control system 31i
  • Heidenhain GRINDplus 640
