NewView™ 9000 3D Optical Surface Profiler

The NewView 9000 3D optical surface profiler offers exceptional non-contact optical surface profiling capabilities. The system makes it simple and quick to assess a broad range of surface types, including rough, smooth, flat, sloped, and stepped surfaces. All measurements are non-destructive, quick, and do not require sample preparation.

ZYGO’s Coherence Scanning Interferometry (CSI) technology is at the core of the system, delivering sub-nanometer precision at all magnifications and measuring a wider range of surfaces faster and more accurately than other commercially available technologies, maximizing the return on investment.

Performance, Value, and Versatility

Flexibility is the hallmark of ZYGO's NewView products. The NewView 9000 profiler provides exceptional value with applications as varied as roughness and waviness, flatness, thin films, step heights, and more.

More Info

All NewView 9000 profilers include a triple-zoom turret that may be loaded with discrete zoom optics designed specifically for the system. The configurations of sample staging range from entirely manual to highly automated with encoded travel.

Irrespective of configuration, all NewView 9000 systems provide high-accuracy measurements, ease of use, and rapid measurements at an affordable price, making it an excellent choice for flexibility and value in 3D optical profilers.

Some of the distinguishing features aimed at making users’ metrology better, quicker, and more reliable include:

  • Large-area 1.9 MP sensor with high sensitivity allows users to see more in a single measurement
  • Mx software for instrument control, analysis, and measurement automation
  • Vibration robust metrology with SureScan technology and available built-in isolation enables high-quality metrology even in vibration-prone environments
  • Automated part focus and setup minimizes operator variability and training while reducing the time to data
  • High-speed measurements take only a few seconds to ensure improved productivity and process control
  • Gage-capable performance through exceptional precision and repeatability for the most demanding production applications
  • SmartPSI technology for ultra-fast profiling of ultra-smooth surfaces
  • 2D and 3D correlation provides confidence in measurements with results that comply with ISO 25178 and ISO 4287 standards

Flexible Configurations

NewView 9000 Stage and Work Area: The NewView 9000 profiler has an open work area with clear lines of sight to make measurement settings and changeovers quick and straightforward. Systems can be equipped with a number of sample staging options, ranging from entirely manual X/Y and tilt stages to completely automated stages with 150 mm of travel and 4º of tilt.

Thanks to the integrated isolation system and the overall compact size, it is well suited for benchtop installations; the optional stand and workstation make it an ideal production-style system.

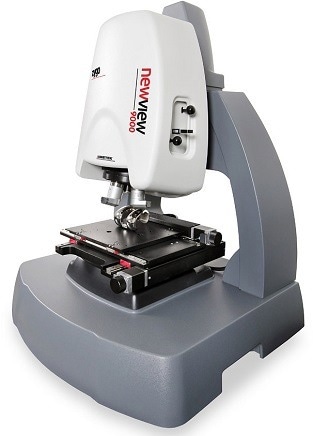

NewView™ 9000 3D Optical Surface Profiler

Image Credit: Zygo Corporation
