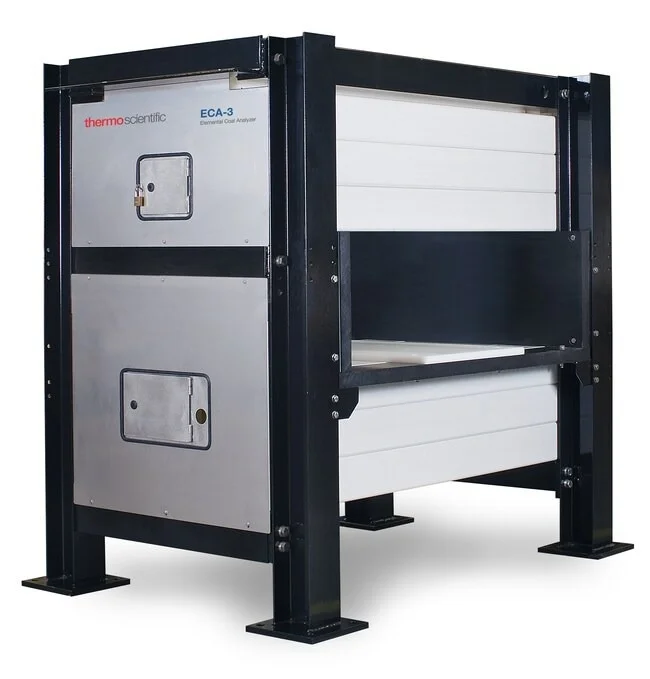

The Thermo Scientific™ ECA-3 Elemental Coal Crossbelt Analyzer is an online system that enables quick elemental analysis of the coal stream, allowing for accurate sorting and blending to satisfy contract criteria.
The ECA-3 is a full-stream, on-the-belt, real-time measurement system for critical coal streams, collecting information to improve sorting, blending, and out-of-seam dilution processes.
It provides minute-by-minute data for clean, raw, and blended coals, reporting essential characteristics such as ash and sulfur content, as well as quantities of compounds of interest (e.g., SiO2, Al2O3, and Fe2O3). An optional moisture analyzer adds moisture content and heating value measurements to the reporting slate.
The ECA-3 can effectively protect customer specifications at the pit, increase the efficiency of preparation plants, and reduce the use of higher-quality, more expensive coals at power plants. The ECA-3 provides accurate, real-time measurements of coal composition, allowing for precise management of coal grade and power plant feed with high efficiency.
Features
- Compatible with COBOS (Coal Blend Optimization Software) for accurate and automatic blending
- Designed for simple installation onto existing conveyor belts
- PGNAA technology allows for very accurate, through-belt ash measurement even with varying ash mineralogy, numerous seams, and/or coal types
- An optional moisture meter for calculating heating values
Specifications
Source: Thermo Fisher Scientific – Production Process & Analytics
| . |
| Description |
Elemental Crossbelt Analyzer |
| Conveyor Belt Sizes |
- 600 mm to 1060 mm
- 1200 mm to 1400 mm
- 1600 mm to 1800 mm
- 2000 mm to 2200 mm
|
| Measures and Reports |
- Ash
- Sulfur
- Moisture
- SiO2
- Al2O3
- Fe2O3
- Na2O (in some cases)
- CaO
- TiO2
- K2O
- N
- Cl
|
| Calculates and Reports |
- Heating Value (kcal/kg, kJ/kg or BTU/ lb)
- Lbs SO2 per million BTU
|
| Unit Size |
Each |
