For non-contact temperature measurement between –50 and +1000 °C, the thermoMETER UC is an extremely powerful system. It has a contemporary design with standard M12 connections and a wide range of functionalities. The sensor can be used in environments with temperatures up to 180 °C and is incredibly small.

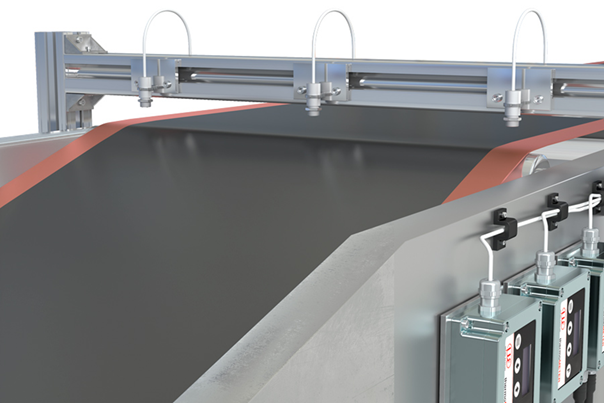

It is widely used in industrial processes, machine design and construction, and quality control due to its excellent performance and durability. Numerous options for integration into machines, systems, and processes are provided via a variety of interfaces, such as switching and alarm signals or analog and digital outputs.

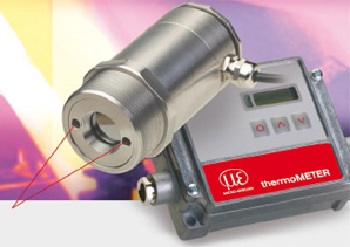

Made for the Industry
Image Credit: Micro-Epsilon
For non-contact temperature measurement across all industrial applications, the thermoMETER UC series pyrometers are ideal. Without cooling, the sensor may operate at temperatures as high as +180 °C. The die-cast aluminum housing’s controller provides the required durability, is quick and simple to integrate using standard M12 cables, and can be set up utilizing large buttons and a two-line display without a PC.

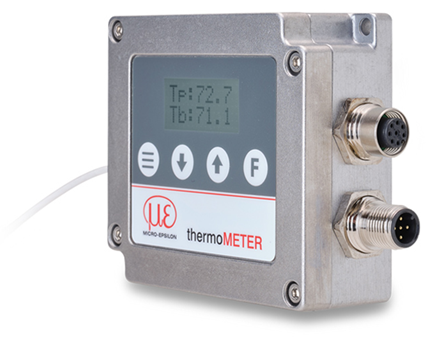

Minimal Installation Effort
Image Credit: Micro-Epsilon

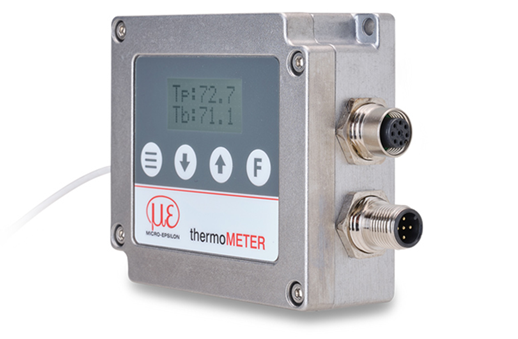

Two M12 connections on the thermoMETER UC's controller allow quick, simple wiring with standard industrial cables without removing the cover. Different cable lengths are available, and the sensor is already firmly linked to the controller. A simulation mode makes it easy to verify if the cabling is complete. An incorporated aiming help feature facilitates the sensor's alignment with the measuring object during installation.
Key Features
- A wide temperature measurement range of –50 to +1000 °C
- Measurement on a variety of objects is made possible by the universal spectral range of 8–14 µm
- A quick reaction time of 20 ms to gauge quick inline processes
- Sturdy pyrometer with a die-cast aluminum housing and a stainless steel sensor and controller
- Uses a two-line display and keys to operate without a PC
- Effective alarm relay for managing external devices
- Alignment aid for quick commissioning
- Analog output and RS485 interface on board with parallel data output
- Minimal installation effort: M12 connections eliminate the need to remove the electronics box
