Calibrate Your Temperature, Pressure and Other Process Control Devices at the Calibration Center

Calibration of your Measuring Instruments and Probes

At the OMEGA Calibration Centre your pressure, temperature, and other process control devices can be calibrated to ISO certified industry standards.

The facility in Manchester, UK can calibrate control equipment to traceable standards, with full documentation and quick turnaround times.

ISO Certified - Traceable to National Standards

OMEGA has state-of-the-art reference equipment that can certify equipment to make sure it is fully traceable back to a wide variety of standards. These standards are required across the industry, including food production and pharmaceuticals, and OMEGA can provide calibrated devices with complete documentation, including ISO certificates.

Calibrate OMEGA Devices & More

For over 50 years OMEGA has pioneered the field pf process control instruments, designing, building and supporting hundreds of different devices. Your OMEGA equipment will benefit from being calibrated by those experience technicians that know them best.

A large range of non-OMEGA devices and instruments are also catered for. Just bring along a device specification and their team will be glad to help.

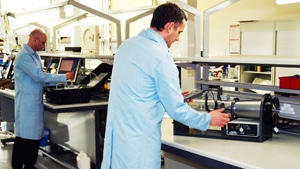

OMEGA Calibration Equipment

The calibration center is equipped with a full range of equipment, capable of calibrating your temperature, pressure, airspeed, humidity, and electrical measurement instruments to traceable national standards. You will also receive full documentation, including ISO certification.

Temperature calibrations

OMEGA’s services perform calibrations on thermocouples, RTDs, thermistors, infrared sensors and other temperature devices ranging from -30° to 1100° Celsius (-22° to 2012 °F). Temperatures are generated using a range of instruments, from stirring baths to a furnace. Calibrators include the BB700 Blackbody Infrared series, which calibrate pyrometers to traceable, certified standards.

Pressure calibrations

Devices for measuring pressure up to 600 bars can be calibrated. Equipment at the Centre includes a modular pressure controller, OMEGA gauge calibrators, and a dead weight tester for the highest pressures.

Electrical calibrations

The Centre is home to electrical calibrators for all kinds of devices including voltmeters, multimeters, and ammeters. The prime example is the Fluke 5700 multifunction calibrator, the industrial standard for calibrating voltage, current, and resistance.

Humidity calibrations

The cornerstone of their range of relative humidity calibrators is the OMEGA RHCL-2. It’s a field-proven system that uses optical chilled mirror (OCM) technology to deliver the highest accuracies for humidity ranging from 10% to 90%.

Airspeed calibrations

For customers who need to calibrate airspeed, the Centre’s OMEGA WT4401 bench-top wind tunnel provides a highly uniform flow rate of 25 to 9000 fpm (0.15 to 45 m/s) over a 152 mm (6 inch) test section.
