miniPV®-H/miniPV-HX | Automated Dilute Solution/Kinematic Viscometer

The CANNON® miniPV-H and miniPV-HX are automated, benchtop viscometers—compatible with aggressive/corrosive solvents—for dilute solution viscosity (DSV) of polymers and kinematic viscosity (KV) for general purpose applications.

Features and Benefits

Designed For Your Testing Needs

  • On-board software calculates molecular weight in addition to dynamic (with optional density meter), inherent, intrinsic, reduced, and specific viscosity
  • Excellent temperature control (±0.01°C) from 15 to 100 °C with integrated TE cooling
  • DSV viscosity range from 0.3 to 700 mm2/s (cSt)
  • KV viscosity range from 0.02 to 1,200 mm2/s (cSt)
  • A trusted CANNON viscometer platform offers reliability and dependable support

Robust Design

  • Withstands corrosive solvents and acids
  • Results unaffected by fillers
  • 10x less sensitive to moisture content
  • Compact to conserve space

Sealed System

  • Allows for measurement of atmospherically sensitive and volatile samples
  • Minimizes expose of operator to harmful chemicals
  • Eliminates sample evaporation

Fully Automated

  • Lowers operator-to-operator variability
  • Runs up to 10 samples unattended
  • Automated washing and drying replaces manual tube cleaning
  • Software controls the instrument and simplifies calibration, data entry, method selection, calculation selection, report formatting, and data exporting
  • Using VISCPRO® software, one PC can manage up to four instruments

Highly Sensitive

  • Reliably measures viscosities less than water

Accurate Measurements

  • 25x greater viscosity accuracy
  • 4x more accurate molecular weight determinations

Simplified Maintenance & Test Versatility

  • Modular bath allows easy access for maintenance
  • Viscometer tube can be replaced by operator in just a few minutes
  • Standard dual solvent input
  • Single-point temperature calibration eliminates tube recalibration and maximizes test versatility

Meets testing methods for ASTM D445, ASTM D789, ASTM D1243, ASTM D1795, ASTM D2857, ASTM D3591, ASTM D4243, ASTM D4603, ASTM D5226, ASTM D5336, ISO 307, ISO 1628-1, ISO 1628-2, ISO 1628-4, ISO 1628-5, ISO 1628-6, ISO 3104, ISO 5351, DIN 51562-1, IEC 60450, Ph. Eur. 1472, Tappi T230, USP 911

miniPV® Automated Kinematic/Dilute Solution Viscometers

Polymer Viscometers: MiniPV-H and miniPV-HX

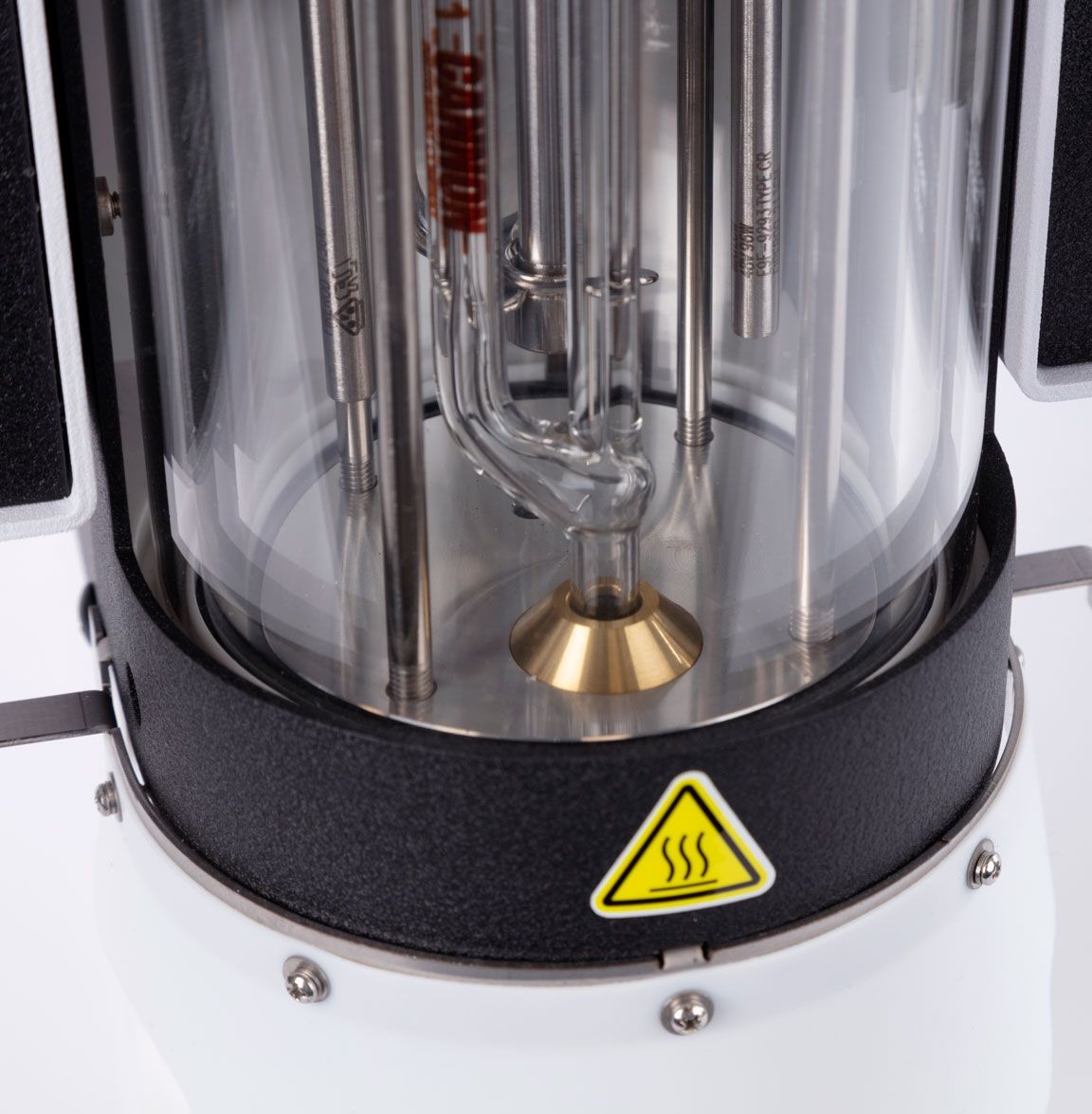

Image 1

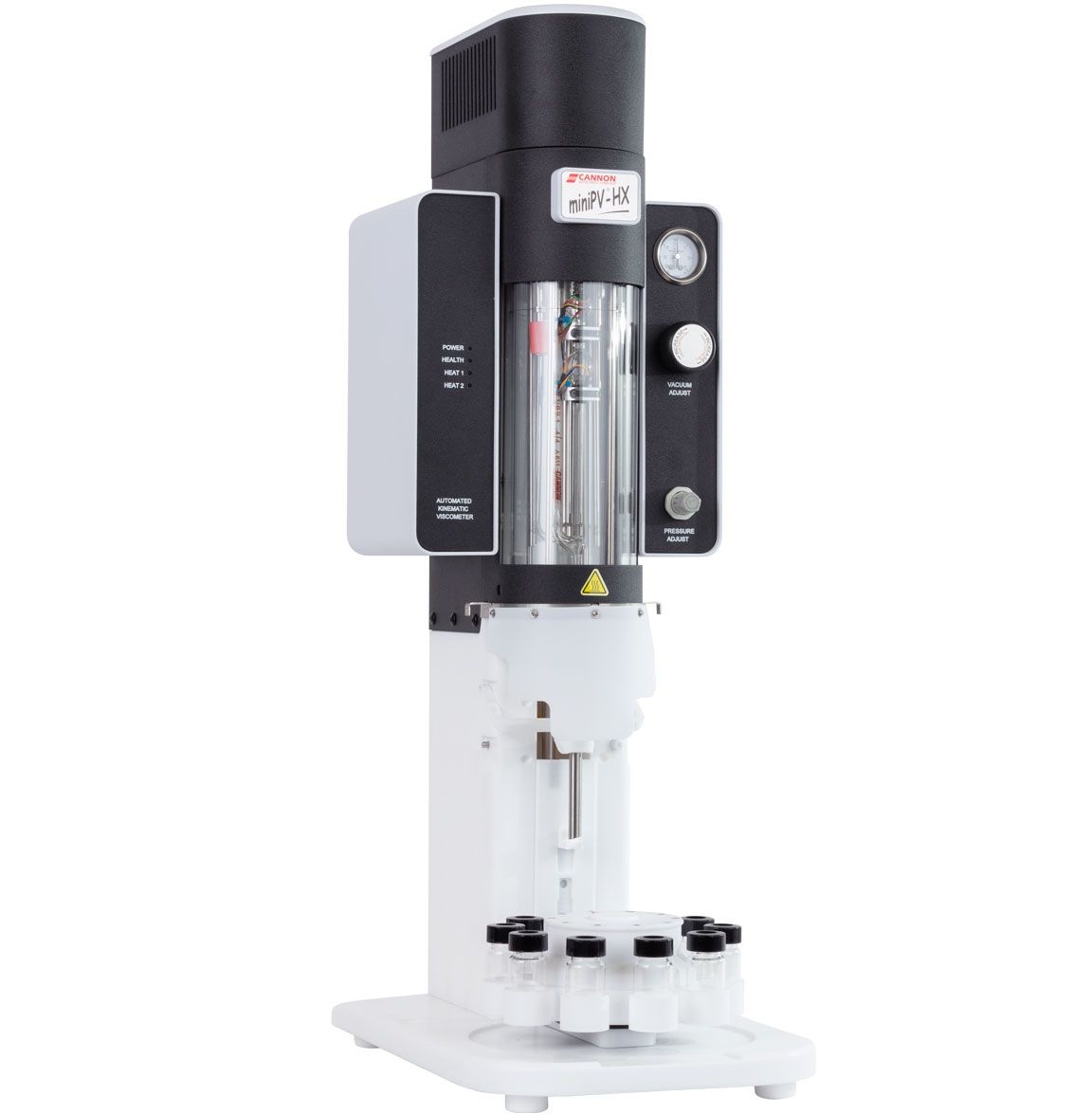

Image 2

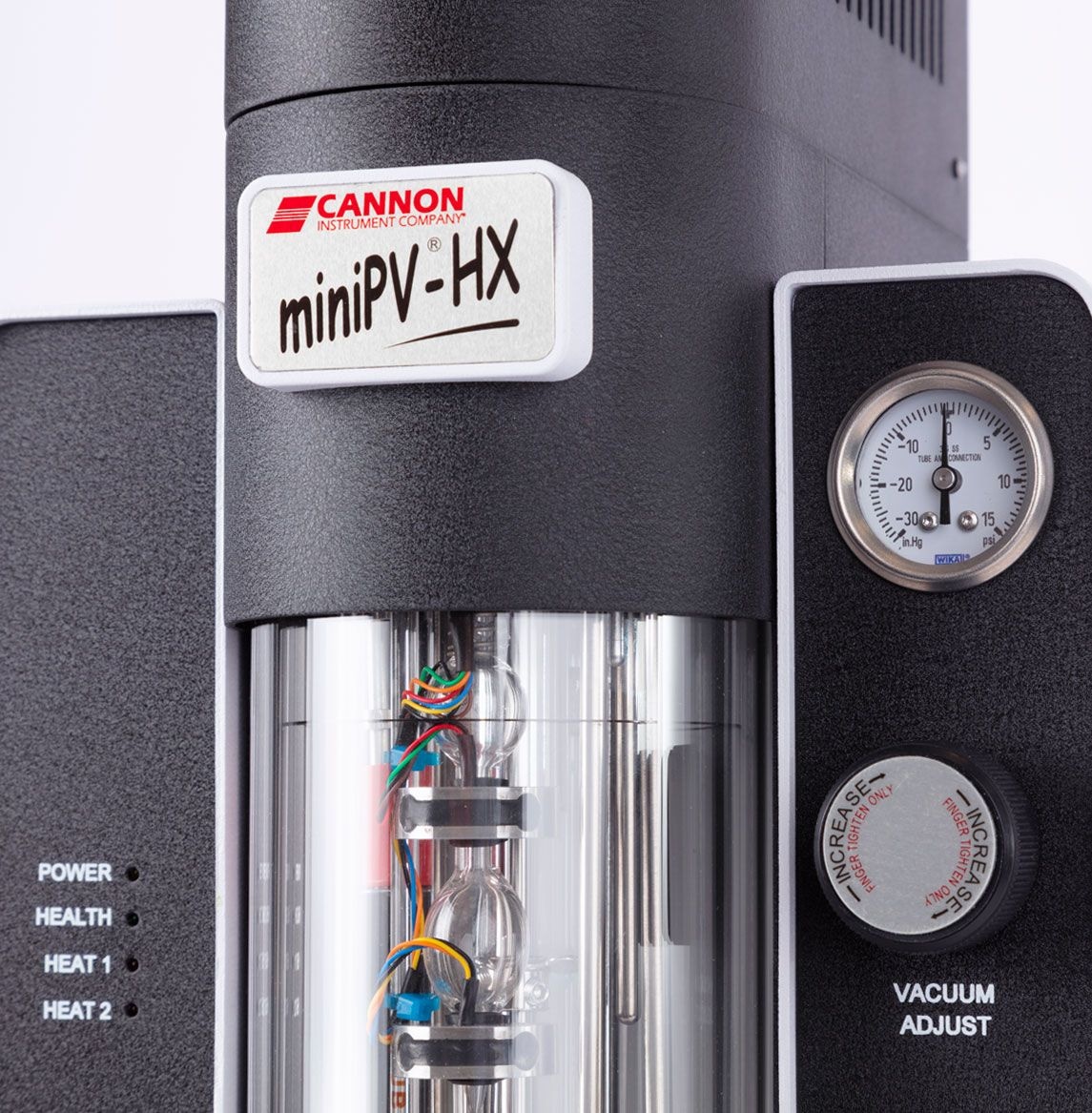

Image 3

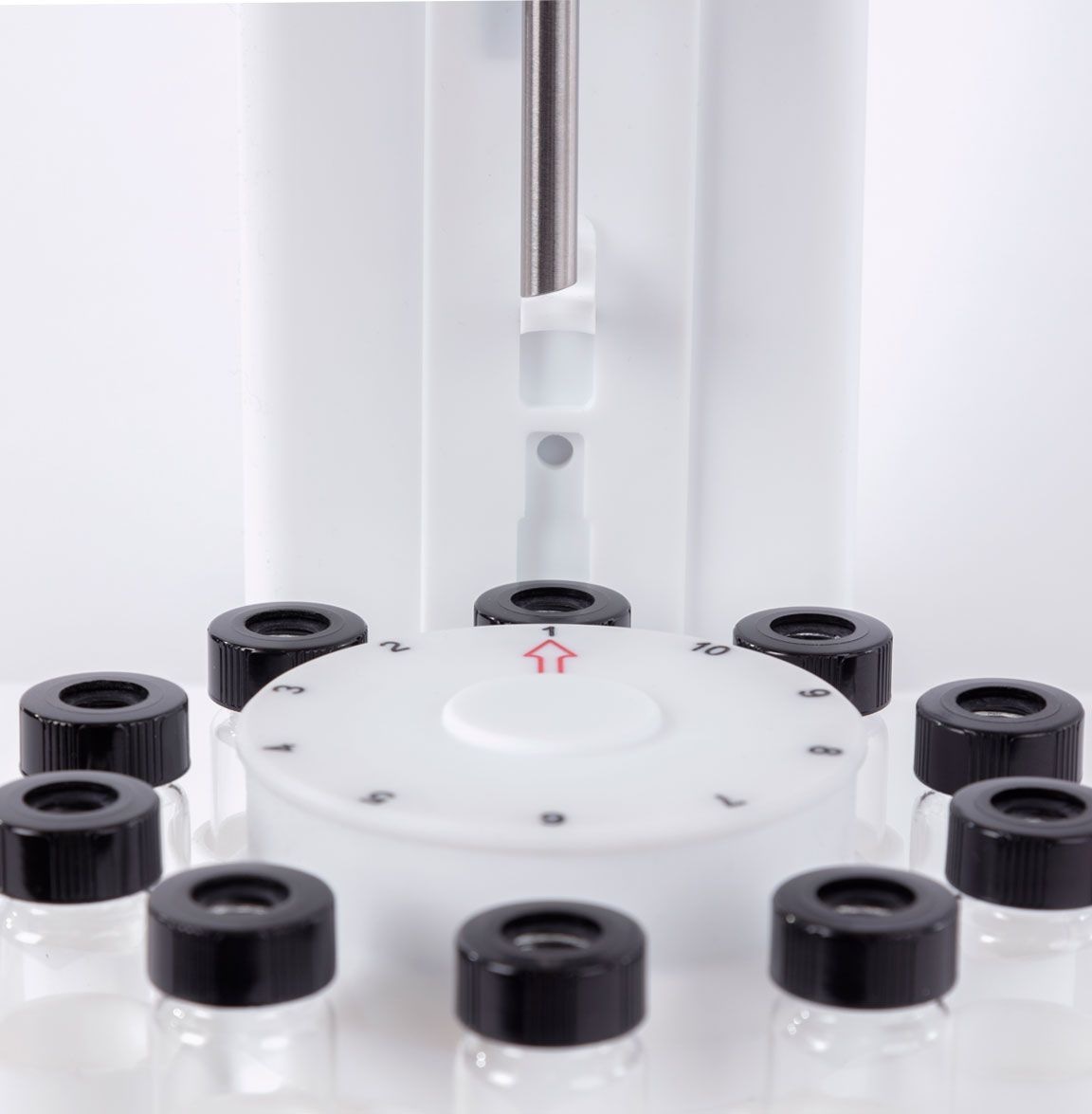

Image 4

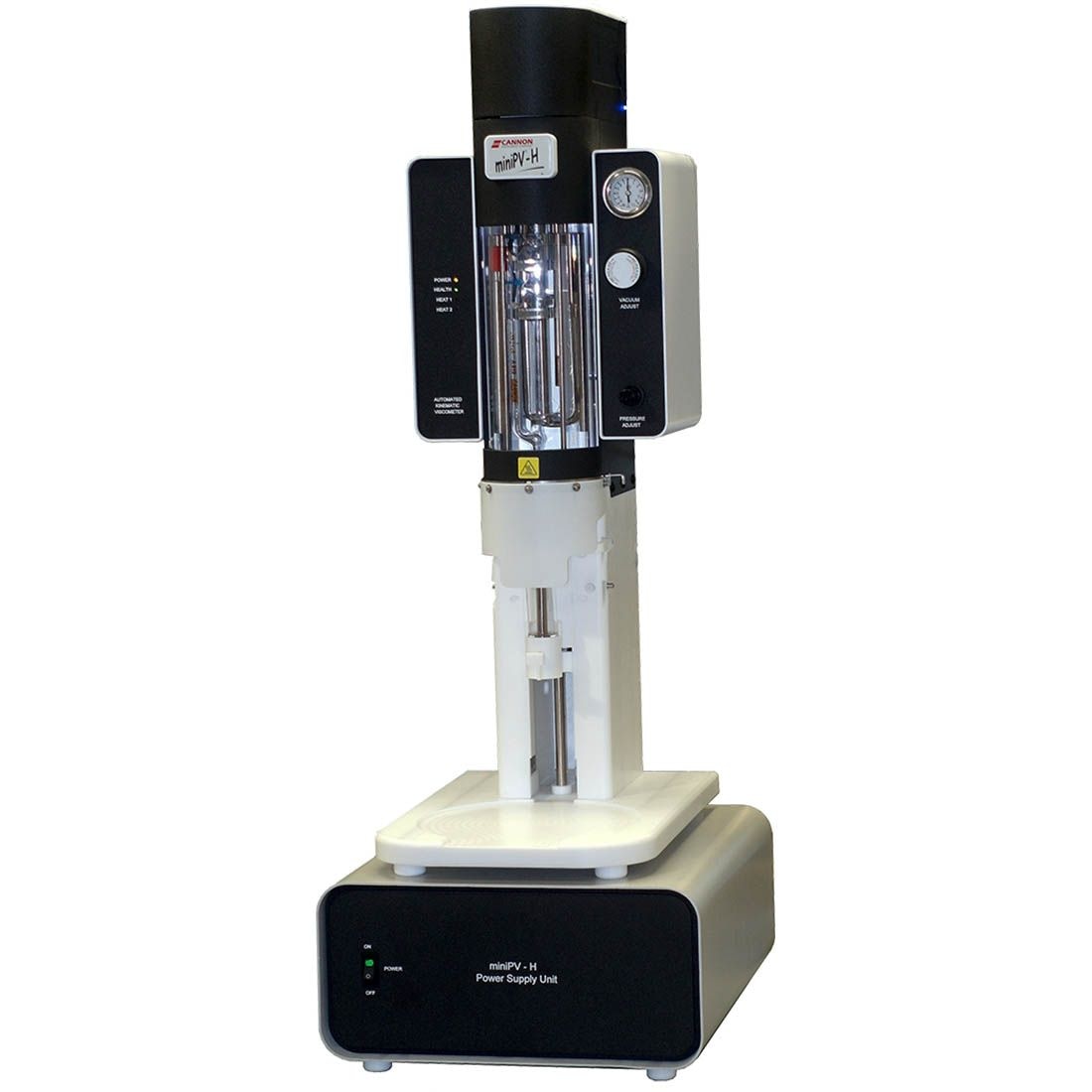

Image 5
