UltraVIS® 192 | High Speed, Solvent-Free, Benchtop Kinematic Viscometer

A fully automated, high-speed, solvent-free viscometer, UltraVIS 192 is used to efficiently test the kinematic viscosity of transparent and opaque liquids. Up to 24 samples can be processed unattended every hour on a 192-position sample handler.

UltraVIS 192 is designed for in-service oil viscosity, used oil analysis, fleet maintenance, and condition monitoring.

Features and Benefits

Precise, Robust Design

  • A trusted CANNON viscometer platform offers reliability and dependable support
  • Capacity to run highly sooted samples, 200+ UFM
  • At 100 °C, viscosity range is 5–50 mm2/s (cSt)
  • At 40 °C, viscosity range is 30–680 mm2/s (cSt)*

Fast Analysis and Rapid Output

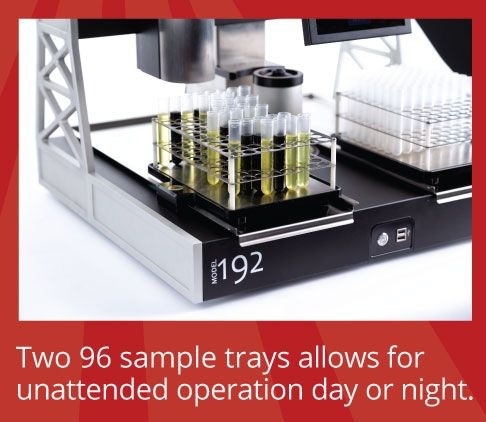

  • High output and unattended operation with two 96-position replaceable sample trays
  • High-speed analysis: commonly 2.5 minutes per test (192 samples per shift)
  • Most ASTM D445 principles are adhered to but with shorter flow times to facilitate quick analysis

Fully Automated Benchtop Testing

  • Stand-alone operation with USB port
  • A single PC controls data for an infinite number of instruments for LIMS output
  • FlowHub™ PC software, included with purchase, allows you to customize data for output
  • Eliminates time-consuming processes like sample measuring and viscometer tube washing

Reduced Consumable Costs

  • Uses low-cost HDPE sample vials
  • Eliminates storage, handling, and disposal of solvents
  • A solid bath design means no bath fluid needed

Easy Operation

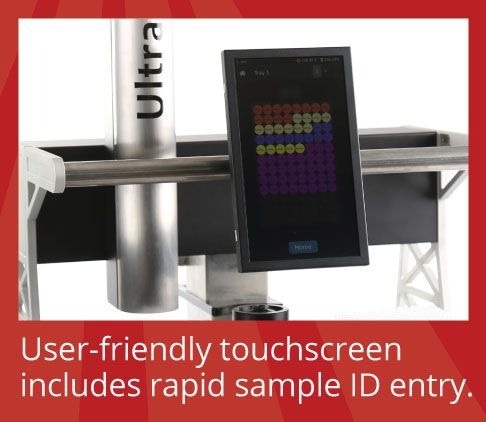

  • Intuitive user interface and data export features
  • Uses industry standard 96-position trays; no need to transfer vials
  • Distinguish samples phases from across the lab with easy to see multi-colored beacon light

*40 °C viscometer tube range is 30 to 300mm²/s (cSt) but viscosity may be meaured up to 680mm²/s (cSt).

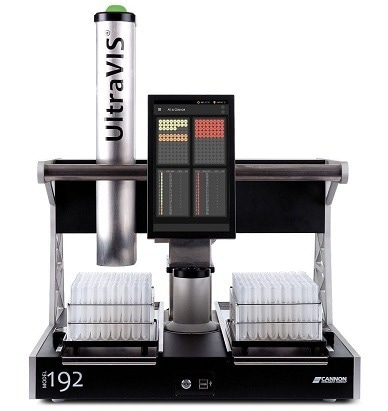

High Speed Kinematic Viscometry with the ULTRAVIS® 192

Image Credit: CANNON Instrument Company

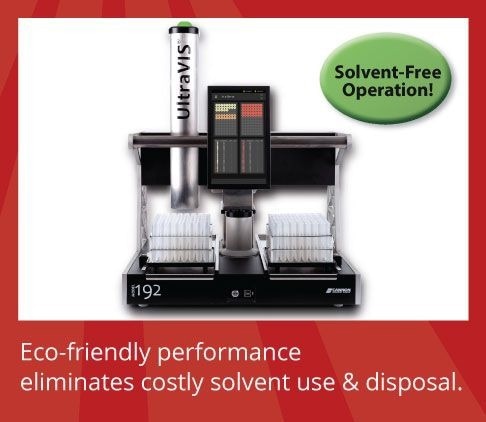

High Speed Kinematic Viscometry with the ULTRAVIS® 192

Image Credit: CANNON Instrument Company

High Speed Kinematic Viscometry with the ULTRAVIS® 192

Image Credit: CANNON Instrument Company

CANNON UltraVIS Running A Sample

Video Credit: CANNON Instrument Company
