K600 Scissor Lift Control System for Mobile Elevating Work Platforms

The K600 Platform Control System offers the dependability required in demanding applications such as Mobile Elevating Work Platforms. K600 is dedicated to complete control of slab self-propelled scissor lifts. The P610 (Platform Control Unit) and the E600 (Electronic Control Unit) are the two most essential components of the K600 Kit.

The two components were designed as building blocks capable of connecting and controlling a range of digital and analog machine interfaces, such as sensors, joysticks, limit switches, LEDs, pushbuttons, motor controllers, e-stop, and alarms via a CAN bus system.

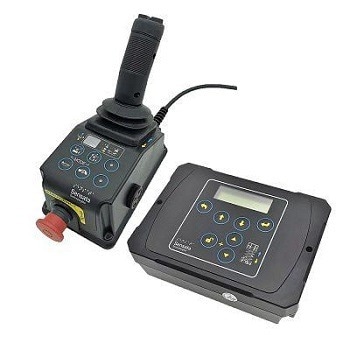

K600 Scissor Lift Control System for Mobile Elevating Work Platforms

Image Credit: Sensata Technologies, Inc.

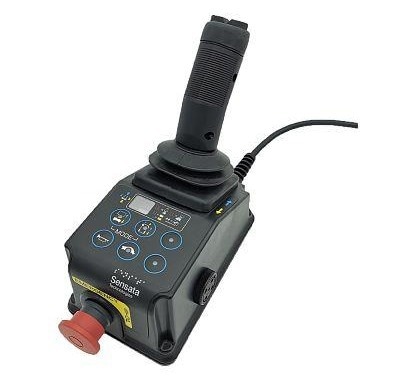

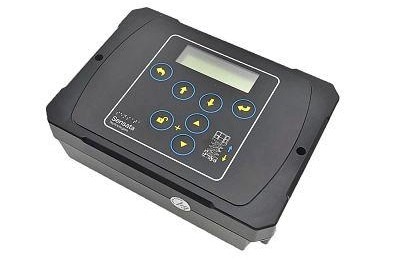

K600 Scissor Lift Control System for Mobile Elevating Work Platforms

Image Credit: Sensata Technologies, Inc.

Features

  • Support analog current and analog voltage multiplex input
  • CAN communication port, Bluetooth module
  • Hardware Watchdog
  • Multi-language display (English, Chinese, Korean)
  • The design complies with BS EN 280-2013 and IEC61508 system level

Custom Modifications

  • Custom overlay graphics
  • Configurable analog input ports
  • Language

Specifications

Electrical

Table 1. Source: Sensata Technologies, Inc.

  P610 Platform Control Unit E600 Electronic Control Unit
Supply
Ratings
System Voltage: 12 V or 24 VDC
Voltage Range: 10 V~36 V
Max. output voltage: V supply DC N/A
Certified to CE regulations
Other
Electrical
Characteristics
N/A Certified to CE regulations ESD: +/- 6 KV Contact,
+/-8 KV Air Discharge per IEC 61000-4-2 Functional



Mechanical

Table 2. Source: Sensata Technologies, Inc.

  P610 Platform Control Unit E600 Electronic Control Unit
Operating Temperature -20 °C to 70 °C
Protection Level IP65 (after installed) IP65
Life Joystick > 5 million cycles
Pushbuttons > 1 million cycles
N/A
