Panel Mount 3-Phase SSR PM6760D50P for Demanding Heating, Motion, and Lighting Applications

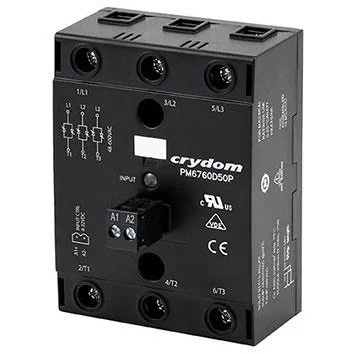

Sensata’s Crydom NOVA22 PM67 Series are panel mount 67.5 mm-wide 3-phase solid state relays with built-in overvoltage protection and optional overtemperature protection. As a result, it is well-suited for demanding heating, motion, and lighting applications.

The PM6760D50P is a high-performance SSR with 50 Amps per channel output ratings at 48 to 600 VAC, as well as Zero Voltage Turn-On (for resistive loads) output and wide cage clamp terminals (accepts 2 AWG wire size).


  • Output ratings up to 75 Amps at 600 VAC
  • 3-Phase AC Output DIN Rail Mount SSRs
  • Over Temperature protection w/alarm (optional)
  • 2 & 3 controlled Legs option
  • Built-in overvoltage protection
  • The layout of mounting holes compatible with standard hockey puck SSRs
  • Clamp Cage terminal type accepts up to 2 AWG wire size
  • AC or DC control
  • IP20 touch-safe housing
  • cULus listed and VDE-approved


  • Packaging equipment
  • Plastic injection molding equipment
  • Industrial ovens
  • Lighting control
  • Professional cooking equipment
  • Pump control
  • Conveyor drives
  • HVAC&R


Product Selection

Table 1. Source: Sensata Technologies, Inc.

Control Voltage 25A 30A 50A 55A 60A 75A
4-32 VDC PM6760D25P PM6760D30P PM6760D50P PM6760D55P PM6760D60P PM6760D75P
90-280 VAC/VDC PM6760A25P PM6760A30P PM6760A50P PM6760A55P PM6760A60P PM6760A75P


Table 2. Source: Sensata Technologies, Inc.

Description 50A
Operating Voltage (47-440 Hz) [VRMS] 48-600
Transient Overvoltage [Vpk] 1200
Maximum Off-State Leakage Current @ Rated Voltage [mARMS] 1
Minimum Off-State dV/dt @ Maximum Rated Voltage [V/μsec] 500
Load Current, General Use UL508/LC A IEC62314 @ 40 °C [ARMS] 50
Load Current, Motor Starting UL508 FLA/LC B IEC62314 @ 40 °C [ARMS] 12/6.8
Minimum Load Current [mARMS] 100
Maximum 1 Cycle Surge Current (50/60 Hz) [Apk] 716/750
Maximum On-State Voltage Drop @ Rated Current [VRMS] 1.25
Maximum 1/2 Cycle I² t for Fusing (50/60 Hz) [A² sec] 2563/2343
Minimum Power Factor (at Maximum Load) 0.5
Motor Rating UL 508: 120 VAC / 240 VAC / 480 VAC [HP] 1.5/3.0/7.5
Motor Rating IEC62314: 240 VAC / 400 VAC / 500 VAC [kW] 1.5/3.0/4.0


Table 3. Source: Sensata Technologies, Inc.

Description PM6760Dxxx
  wo-TA Option w-TA Option
Control Voltage Range 4-32 VDC 4-28 VDC
Maximum Reverse Voltage -32 VDC
Minimum Turn-On Voltage 4 VDC
Must Turn-Off Voltage 1 VDC
Minimum Input Current (for on-state) 25 mA 20 mA
Maximum Input Current 40 mA 50 mA
Nominal Input Impedance Current Limited
Maximum Turn-On Time [msec] 1/2 Cycle
Maximum Turn-Off Time [msec] 1/2 Cycle


Table 4. Source: Sensata Technologies, Inc.

Description DR6760Dxxx
Supply Voltage Range 18-32 VDC
Maximum Reverse Voltage -32 VDC
Minimum Supply Current 3 mA
Maximum Supply Current 130 mA


Table 5. Source: Sensata Technologies, Inc.

Description Parameters
Dielectric Strength, Input to Output (50/60 Hz) 4k VRMS
Dielectric Strength, Input/Output to Case (50/60 Hz) 4k VRMS
Minimum Insulation Resistance (@ 500 VDC) 109 Ohms
Maximum Capacitance, Input/Output 25 pF
Ambient Operating Temperature Range -40 to 80 °C
Ambient Storage Temperature Range -40 to 100 °C
Short Circuit Current Rating 100 kA
Weight (typical) 6.7 oz (190 g)
Housing Material UL94 V-0
Heat Sink Material Aluminum
DIN Rail Clip Material Zinc Plated Steel
Hardware Finish Nickel Plating
Input Terminal Screw Torque Range (lb-in/Nm) 5/0.5
Load Terminal Screw Torque Range (lb-in/Nm) 18-20/2.0-2.2
Humidity per IEC 60068-2-78 93%
LED Input Status Indicator See status chart
Overvoltage Category III
Impulse Withstand Voltage According to IEC 60664-1 6 kV


Ordering Options

Table 6. Source: Sensata Technologies, Inc.

Family Operating Voltage Control Voltage Rated Load Current Switching Type Overvoltage Protection Over Temperature Protection
PM67 60: 48-600 VAC D: 4-32 VDC (4-28 VDC for TA option)
A: 90-280 VAC/VDC
25: 25A, 3-legs
30: 30A, 2-legs
50: 50A, 3-legs
55: 55A, 2-legs
60: 60A, 3-legs
75: 75A, 2-legs
Blank: Zero Voltage Turn-On
R: Instantaneous Turn-On
P: With internal overvoltage protection Blank: No Over Temperature protection
TA: With Over Temperature Protection and Alarm Output
