Portable Automatic X-Ray Film Processor

Experience top-tier X-Ray film processing with the Portable Automatic X-Ray Film Processor featuring a daylight option.

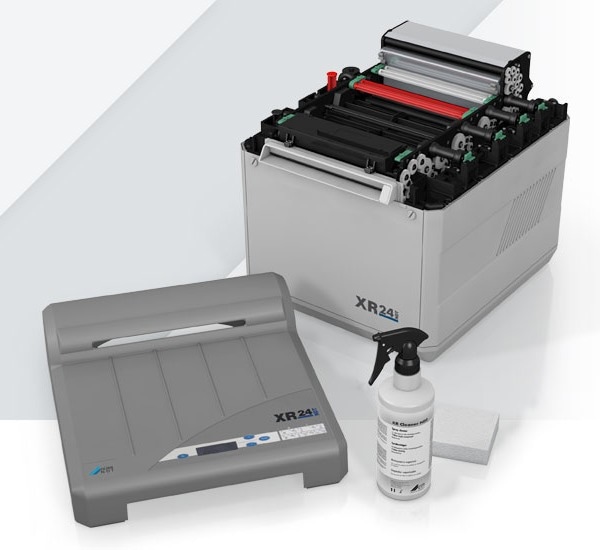

Portable Automatic X-Ray Film Processor

Image Credit: DÜRR NDT GmbH & Co. KG

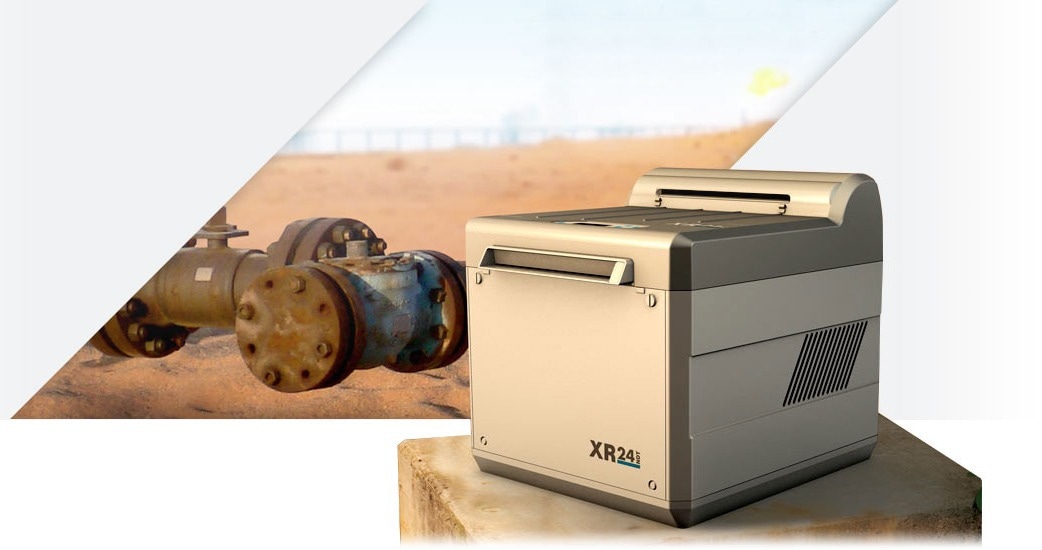

Portable Automatic X-Ray Film Processor

Image Credit: DÜRR NDT GmbH & Co. KG


Over 250,000 units have been manufactured, showcasing the proven technology.

Submersion Tank

Prevents crystallization while in standby mode.


Assure dependable analysis with the highest resolution available.


Durable, robust, and built to last.

Most Important Features

Integrated Dryer

Flawlessly developed films result from meticulous drying.

Fully Automatic

Processor-controlled development and user-friendly operation.

Precise Mechanisms

The use of precision-engineered roller packages ensures a successful first attempt at developing any film.

Optimal Results Due to Proven Precision Technology

Professional film development is an intricate procedure that relies on strict adherence to precise parameters.

The XR 24 NDT, with meticulous process control, guarantees optimal film processing results.

Additionally, its unique submersion-tank mechanics ensure reliable prevention of chemistry crystallization during standby.

  • Finest Details.
  • Spectacular results.
  • Proper Developing.

Proper Processing, Even for Mobile Installations

Exact defect detection is paramount. As a result of the DÜRR NDT’s unique X-Ray chemistry, the XR 24 NDT consistently achieves fully automated and artifact-free X-Ray film development. Rely on the technologically proven machine, with over 250,000 units in production.

Mobile X-Ray film processing cannot be easier.

  • Highly portable
  • Fully automatic
  • Proven

Technical Data

Source: DÜRR NDT GmbH & Co. KG

  XR 24 NDT
Dimensions (H x W x D) 44 x 42 x 51 cm
17" x 16" x 20"
Weight 25 kg
55 lbs
Power supply 230 V / 50-60 Hz
4,0 A
With external transformer 110 V
Power consumption Tank heating: 400 Watt
Dryer: 450 Watt
Film detection 1 microsensor
Film format min. 2 x 2 cm / 0.8" x 0.8"
max. width 24 cm / 10"
Film processing time 5:30 - 10:00 min
Film output / hour
(development time = 8 min.)
24 x 30 cm / 10“ x 12“: 11 films
10 x 48 cm / 4“ x 19“: 16 films
Water flow rate 2 l/min / 0.52 gal/min while processing
Water pressure min / max 2 / 6 bar
Tank volume Developer: 5 l / 1.32 gal
Fixer: 5 l / 1.32 gal
