Portable Digital X-Ray CR Scanner

The CR 35 NDT-CR-Scanner is a general-purpose portable digital X-Ray computed radiography scanner.

80 µm SRb

The Scanner's is an excellent choice for both isotope and X-Ray applications due to its high contrast.

Light and Rugged

With a weight of only 17.5 kg (38.5 lbs), this is the world’s lightest full-format scanner.

DICONDE Compliant

Fully conforms to the applicable EN, ASTM, and DICONDE standards.

  • 5 Year guarantee (guarantee conditions)
  • Experience
    • Technology that has been tested in over 100,000 units.
  • Made in Germany
    • Development and production in Germany.
  • Intuitive handling
    • Transition from film is hassle-free.
  • Lightweight and rugged
    • It is the world’s lightest full-format scanner, weighing only 17.5 kg (38.5 lbs).
  • Stand-alone function
    • The built-in Mini-PC enables completely autonomous operation.
  • WiFi
    • The on-board WiFi adaptor enables WLAN connectivity.
  • Robust D-Tect Software

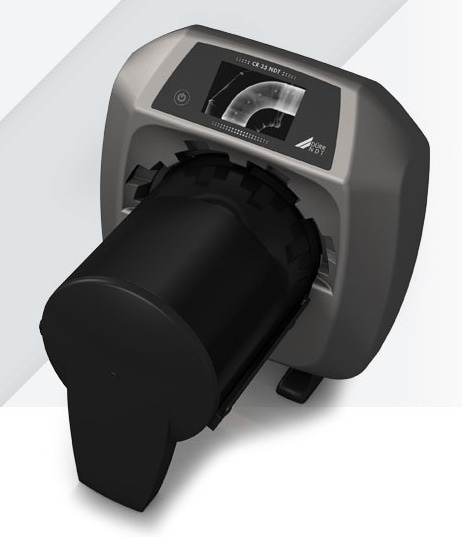

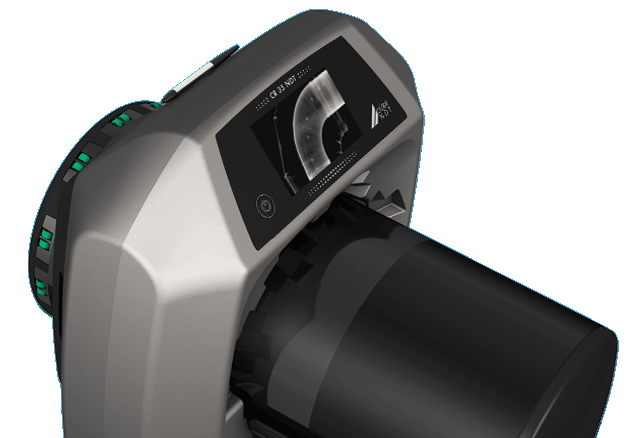

Portable Digital X-Ray CR Scanner

Image Credit: DÜRR NDT GmbH & Co. KG

Technical Data

Source: DÜRR NDT GmbH & Co. KG

  CR 35 NDT
Laser spot size 50 µm
SRb (basic spatial resolution) 80 µm
Grayscale resolution 16 bit (65.536 gray levels)
Min./Max. imaging plate size (W x L) 2 to 35 cm x 3 to 200 cm (0.8 to 14" x 1.2 to 79")
Dimensions (H x W x D) 40 x 37 x 47 cm (15.8 x 14.6 x 18.5")
Weight 17.5 kg (38.6 lbs)
Power supply 100 – 240 VAC / 50 – 60 Hz < 140 W
Temperature range 10 to 35 °C (50 to 95 °F)
Noise level < 39 dB(A)
Laser class I (EN 60825-1: 1994-03 + A1: 2002-07 + A2: 2001-03) + CFR 1040.10
Interfaces Ethernet (TCP-IP), WLAN
Touchscreen 4.3" TFT, 800 x 480 px
Internal storage SDHC, max. 32 GB
Software DÜRR NDT D-Tect (DICONDE compliant to ASTM 2339)
System requirements > Download



Applications

Source: DÜRR NDT GmbH & Co. KG

  CR 35 NDT HD-CR 35 NDT
Weld inspection (1) ★ ☆ ☆ ☆ ☆ ★ ★ ★ ★ ★
Erosion and corrosion inspection (2) ★ ★ ★ ★ ★ ★ ★ ★ ★ ☆
Metal casting (3) ★ ★ ☆ ☆ ★ ★ ★ ★ ★
Metal precision casting (3) ☆ ☆ ☆ ☆ ☆ ★ ★ ★ ★ ★
Composites ☆ ☆ ☆ ☆ ☆ ★ ★ ★ ★ ★
Arts ★ ★ ☆ ☆ ★ ★ ★ ★ ★
Concrete inspection ★ ★ ★ ★ ★ ★ ★ ★ ★ ☆
Crystal structure analysis ★ ★ ★ ★ ★ ★ ☆ ☆ ☆ ☆

Also suitable for inspections according to 1 ISO 17636-2, ASME V, 2 EN 16407-1, EN 16407-1, 3 ISO 16371-2
