NDT X-Ray Chemicals

Being free from toxic and carcinogenic components, NDT X-Ray Chemicals produce impressive results for industrial X-Ray film processing applications.

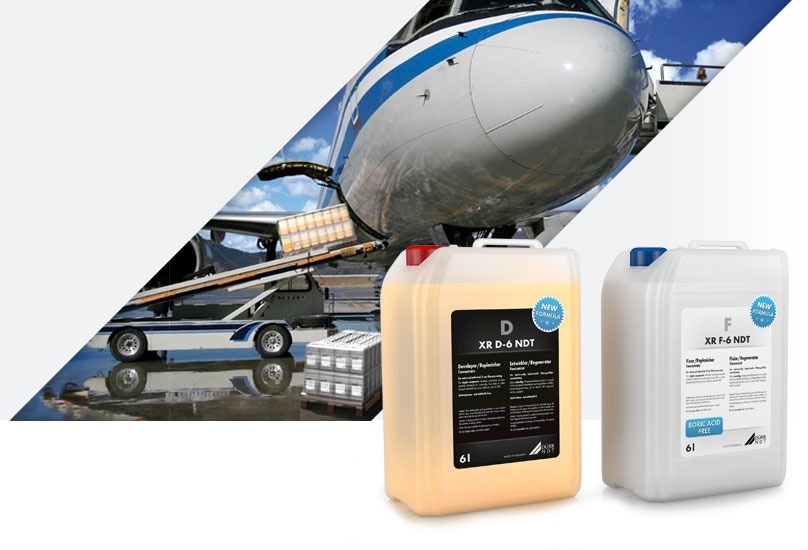

NDT X-Ray Chemicals

Image Credit: DÜRR NDT GmbH & Co. KG

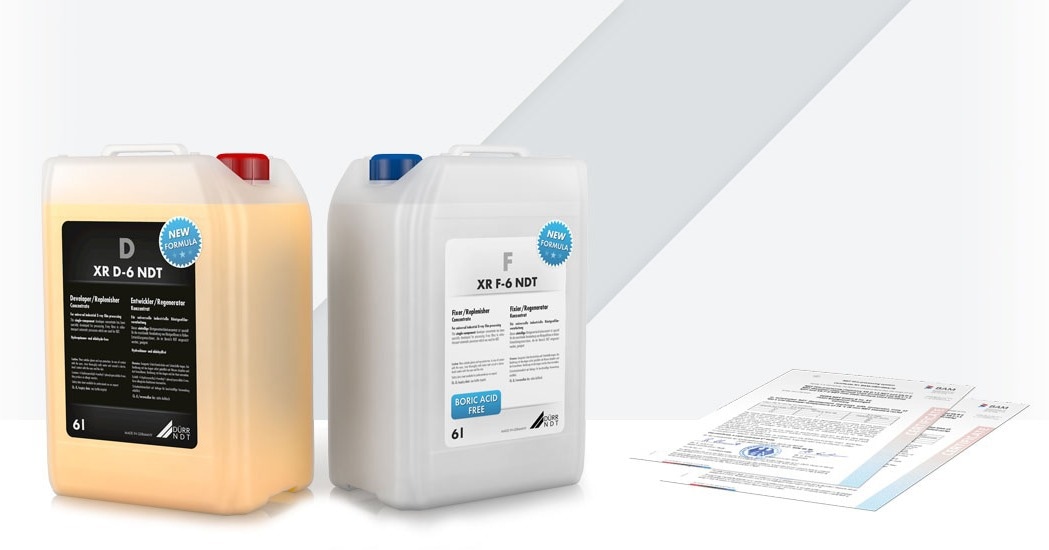

NDT X-Ray Chemicals

Image Credit: DÜRR NDT GmbH & Co. KG

80% Less Cleaning

Reduce cleaning expenses and minimize operational downtime.

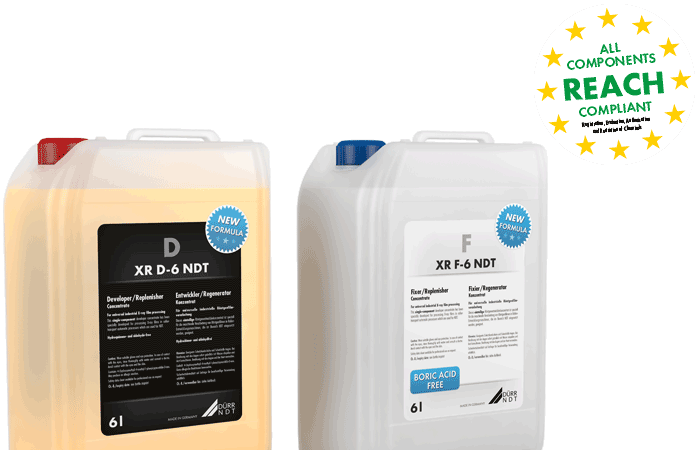

REACH Complaint

Lacking boric acid, hydroquinone, and aldehydes.

Diverse NDT Applications

Established as effective in oil and gas, aerospace, nuclear, and military applications.

Important Features

Universal Use

Incorporating a variety of radiographic equipment and films, which may be of different types.

80% Less Cleaning Effort

Cost savings were achieved with a cleaning cycle extended to five times its previous duration.


Prevents unpleasant use through odorless design.

Low Consumption

900 ml/m² for developer and 1200 ml/m² for fixer

One-Part Concentrates

No need for a starter or any other additives.

NDT X-Ray Chemicals

Image Credit: DÜRR NDT GmbH & Co. KG

BAM Certified

Compliant with the DIN EN ISO 11699-1:2012 and ASTM E1815-08 standards for Agfa Structurix and Carestream Industrex films.

Stunning Results

Regardless of whether users manually or automatically process their films.

Secure Archiving

The company assures a practically limitless retention period (ISO LE 500) for Agfa Structurix (D4, D5, D7) and Carestream Industrex (MX125, T200, AA400) films.

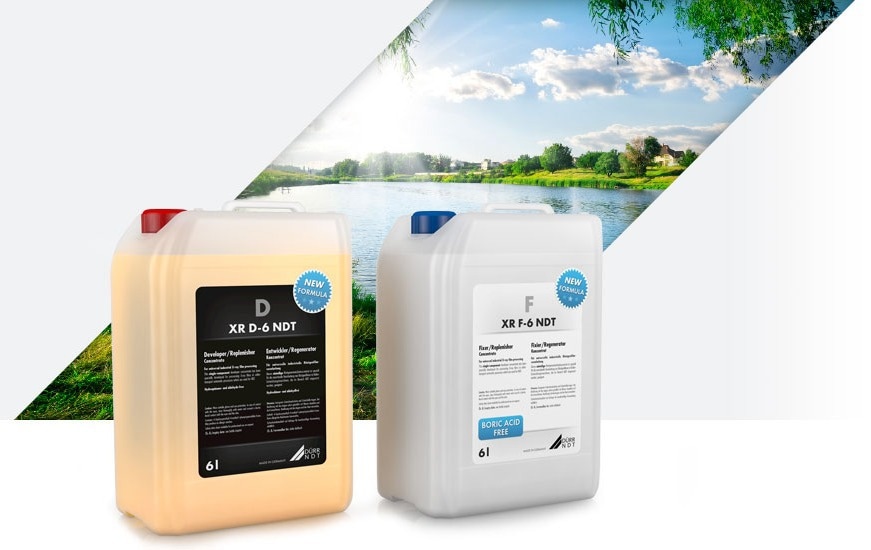

NDT X-Ray Chemicals

Image Credit: DÜRR NDT GmbH & Co. KG

No Hazard Labels

No limitations on transportation- the company offers worldwide shipping.

Offshore Use Possible

Transport by airplane or helicopter is without issue

Frozen? Just Thaw and Use

Just thaw and use as part of regular workflows.

No Worries in Hot Weather

Remains stable at temperatures up to +40 °C for a duration of 14 days.

Long Shelf Life

The developer and fixer maintain their usability for a minimum of 24 months.

NDT X-Ray Chemicals

Image Credit: DÜRR NDT GmbH & Co. KG

Technical Data

Source: DÜRR NDT GmbH & Co. KG

  XR D-6 NDT / XR F-6 NDT
Canister capacity 6 liters of concentrate
Stock solution 20 liters diluted
Film processing time 8 min. ± 10%
Immersion time 100 s ± 10%
Replenishment rate
Developer (XR D-6 NDT)
900 ml/m²
Replenishment rate
Fixer ( XR F-6 NDT)
1200 ml/m²
Storage temperature 5 °C to 25 °C
Stable up to +40 °C
(max. 14 days)
Shelf life 24 months
Packaging size Carton with 2 x 6-liter containers
Product number
Developer (XR D-6 NDT)
Product number
Fixer ( XR F-6 NDT)
