Thermo Scientific™ MarqMetrix™ All-In-One Process Raman Analyzer

Using the Thermo Scientific MarqMetrix All-in-One Process Raman Analyzer, organizations have the ability to perform instantaneous, non-invasive analyses without the need for prior sample preparation. This Raman analysis tool streamlines processes by providing straightforward and precise measurements. It features user-friendly software and convenient one-button hardware for ease of use.

This device can be used almost immediately once it is taken out of the box, enabling users to make highly precise Raman measurements in just under 15 minutes.

This analyzer can also be enclosed within a protective case, allowing for easy transportation to the point of need. Its factory calibration guarantees continuous and precise analysis. Furthermore, it can seamlessly integrate into existing processes, eliminating the requirement for expensive technical expertise.

Features of the MarqMetrix All-in-One Process Raman Analyzer:

  • Small footprint for comfortable deployment
  • Non-invasive — Reduces sample contamination
  • Non-destructive — Safeguards valuable samples
  • Factory calibration for hardware stability and portability
  • Easy to set up and deploy by non-Raman spectroscopists
  • Analysis without sample preparation to provide Raman spectral outcomes in real-time

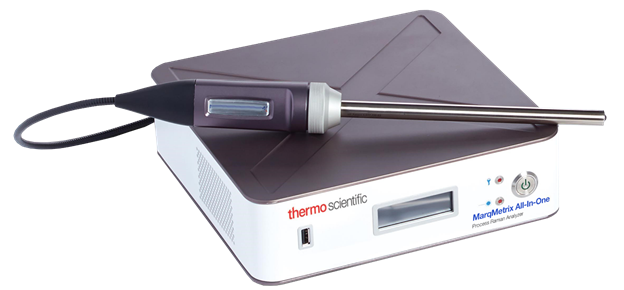

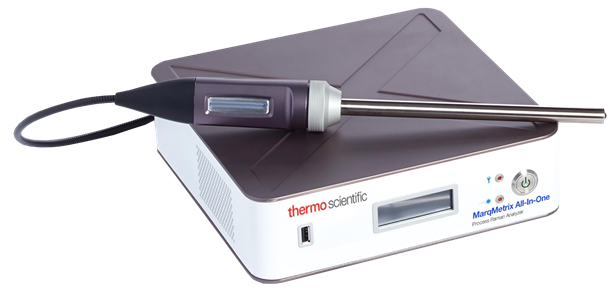

All-In-One Process Raman Analyzer: Thermo Scientific™ MarqMetrix™

Image Credit: Thermo Scientific Chemicals

Flexibility to Meet User Needs

Users can effortlessly incorporate the MarqMetrix All-in-One Process Raman Analyzer into almost any application with the help of a variety of available probes.

Application Versatility

The MarqMetrix All-in-One Process Raman Analyzer can be used for analytical technology (PAT) applications.

Process Analysis and Control

Reliable compositional measurements are made possible thanks to the MarqMetrix All-in-One Process Raman Analyzer and MarqMetrix BallProbes. They are ideal instruments for measuring, controlling, and characterizing online processes.

Specifications

Source: Thermo Fisher Scientific

. .
Display Digital
Certifications/Compliance Laser Certification: Class 3B laser device reported to the FDA
Dark Noise ≤16.5 counts at 10 sec. integration
Depth (Metric) 25 cm
Detector Thermally stabilized CCD (2 stage TEC)
Fiber Conditions FC/PC (Both excitation and collection)
Height (Metric) 7.7 cm
Hertz 50/60 Hz
Includes Wireless mouse, HDMI cable, monitor
Laser Excitation Wavelength 785 nm, Excitation power: 10 to 450 mW
Operating Systems Software: MarqMetrix Raman suite Controller: Integrated PC (Windows 10 OS)
Ports 1RJ-45 Ethernet port 3 USB 3.0
Safety Features 1 keyed Laser interlock switch, Electronic laser trigger
Spectral Range 100 to 3250 cm-1
Spectral Resolution 6.5 cm-1 average across the spectral range
Temperature Range (Metric) 15 °C to 33 °C
Video Output 1 Display port 1.1 (VGA, DVI, or HDMI with adaptor)
Width (Metric) 25 cm
Unit Size Each
