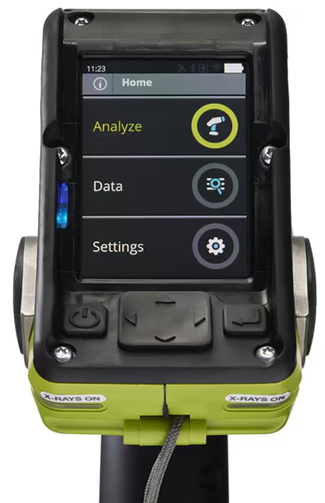

Carry out elemental analysis faster with the Niton XL5e handheld XRF analyzer.
Ergonomically designed and equipped with built-in Wi-Fi, the Niton XL5e delivers advanced detection performance in an accessible, user-friendly device.
Product Overview
With the Thermo Scientific™ Niton™ XL5e handheld XRF analyzer, elemental analysis is performed rapidly and accurately. This advanced instrument provides strong detection performance and delivers reliable results in minimal time.
Built with superior ergonomics for extended use, the analyzer features modern software for streamlined reporting and integrated Wi-Fi for enhanced connectivity.
Key Features
- 5 W X-ray tube
- Integrated fan for thermal management
- Lightweight design (2.8 lbs / 1.3 kg)
- Built-in micro camera
- Bluetooth and Wi-Fi connectivity
- Hot swap battery
- Color touchscreen display
- Password-protected security
- IP54 certified (dust- and splash-resistant)
Download the Brochure for More Information
Applications
- Verification of metals and alloys during manufacturing processes
- Real-time geochemical testing for mineral exploration
- Non-destructive on-site inspections for positive material identification
- Point-and-shoot material sorting in scrap recycling operations
- On-site screening of contaminated soils for heavy metals
Available Modes
- General Metals
- Mining
- Light Metal Quick Sort (Scrap)
- Soil
- Plastics
Video Credit: Thermo Fisher Scientific – Handheld Elemental & Radiation Detection
Video Credit: Thermo Fisher Scientific – Handheld Elemental & Radiation Detection
Specifications
Source: Thermo Fisher Scientific – Handheld Elemental & Radiation Detection
| . |
| Certifications/Compliance |
CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1:2010 |
| Data Entry |
Touchscreen keyboard, user-customizable data entry, optional wireless remote barcode reader |
| Data Storage |
512 MB internal system memory / 16 GB industrial grade storage; Stores approximately 130,000 readings with spectra |
| Data Transfer |
WiFi, USB-C |
| Dimensions (L × W × H) |
9.54 × 8.19 × 2.67 in (242.56 × 208.17 × 67.90 mm) |
| Display Type |
Fixed, color, resistive touchscreen display |
| Global Positioning System |
Supported via optional external GPS (via Bluetooth) |
| IP Rating |
IP54 |
| Languages |
English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Turkish, Italian |
| Libraries |
Default alloy libraries based on SAE, AISI, ASTM, AA, DIN, GB standards; Users may create, clone, and edit libraries |
| Licensing |
Varies by region. Contact your local distributor. |
| Operating Environment |
Temperature: -10 °C to 50 °C, Humidity: 10 % to 90 % relative humidity non-condensing |
| Operating System |
Linux |
| Optional Accessories |
Portable test stand, Mini test stand, Hotwork stand-off, Soil guard, Bluetooth printer |
| Power Consumption |
12 V lithium-ion battery, or 12 V DC, 3A, 3.6 W power supply; Hot swap functionality |
| Security Features |
Password-protected user security |
| Software |
NitonConnect PC software |
| Spot Size |
8 mm collimation |
| Standard Accessories |
Locking shielded carrying case, Two (2) lithium-ion battery packs, One (1) 110/220 VAC battery charger/AC adapter, Check samples, Safety lanyard, PC connection cable (USB) |
| System Details |
Built-in standardization and health check verify the system integrity |
| Weight (English) |
2.8 lbs with battery |
| Weight (Metric) |
1.3 kg with battery |
| X-Ray Source Type |
Ag anode (6-50 kV, 0-500 µA, 5 W max) |
| Applications |
Elemental analysis for: metals and alloys, geological and soil samples, plastics |
| Tube Voltage |
50 kV |
| Unit Size |
Each |
