IRSX-I640 is the IRSX series' flagship model with exceptional resolution. With the same robust, self-contained smart-camera architecture as the rest of the IRSX range, the IRSX-I640 is designed for applications that require more pixels on target, such as wider scenes, smaller hot spots, and finer spatial detail.
The IRSX-I640 is the recommended option when a target needs to be resolved in greater detail at a specific working distance or when a single camera needs to cover a wider scene without losing measurement resolution because it has a 640 × 512 pixel LWIR microbolometer at a 17 × 17 µm pixel pitch, which provides about 2.4 times the pixel count of the IRSX-I336.

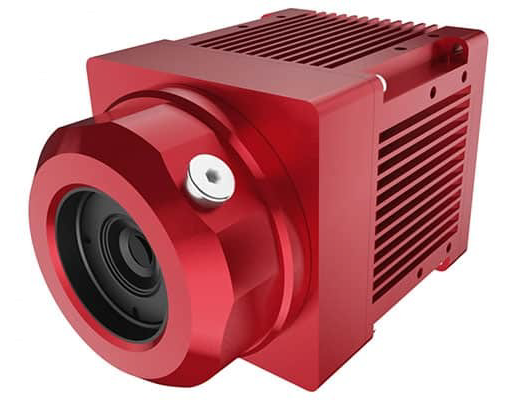

Image Credit: Pembroke Instruments, LLC
At a Glance
Source: Pembroke Instruments, LLC
| |
|
| Sensor Format |
640 x 512 pixels (17 x 17 µm pitch) |
| Frame Rate |
9 Hz standard; 30 Hz option |
| Temperature Range |
-40 °C to +550 °C standard; up to +1200 °C with ND filter |
| Accuracy |
± 2 °C or ± 2% of reading |
| Lens Options |
7.5, 9, 13, 19, 25, 35, 50, 60, 100 mm; zoom on request |
| Enclosure |
IP67, 55 x 55 x 77 mm, 270 g without lens |
Best Fit
This technology is ideal for high-resolution thermal imaging, wide-area electrical panel scans, large furnace or oven zones, and multi-component PCB inspections that require multiple features to be resolved in a single frame. It also has smaller hot-spot detection capabilities.
