The small, affordable member of the IRSX series. The IRSX-I336 has the same onboard processing, browser-based setup, and industrial connectivity as the IRSX-I640, but in a lower-resolution, more affordable device, suitable for fixed monitoring stations where a moderate pixel count is sufficient.
The IRSX-I336 is ideal for single-point or small-target monitoring, machine vision integration, and installations where multiple cameras are being installed throughout a facility, and overall system cost matters. It has a 336 × 256-pixel LWIR microbolometer with the same 17 × 17 µm pixel pitch as the IRSX-I640.

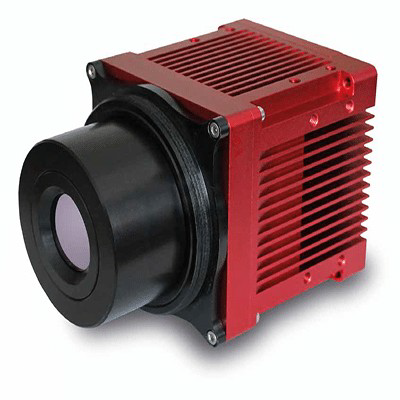

Image Credit: Pembroke Instruments, LLC
At a Glance
Source: Pembroke Instruments, LLC
| |
|
| Sensor Format |
336 x 256 pixels (17 x 17 µm pitch) |
| Frame Rate |
9 Hz standard; 30/60 Hz option |
| Temperature Range |
-40 °C to +550 °C standard; up to +1200 °C with ND filter |
| Accuracy |
± 2 °C or ± 2% of reading |
| Lens Options |
4, 7.5, 9, 13, 19, 25, 35, 50, 60, 100 mm; zoom on request |
| Enclosure |
IP67, 55 x 55 x 77 mm, 270 g without lens |
Best Fit
Single-motor or bearing monitoring points, small-machine integration, and multi-camera safety or automation networks are examples of affordable fixed thermal monitoring, automation, machine vision, and compact industrial temperature measurement.
