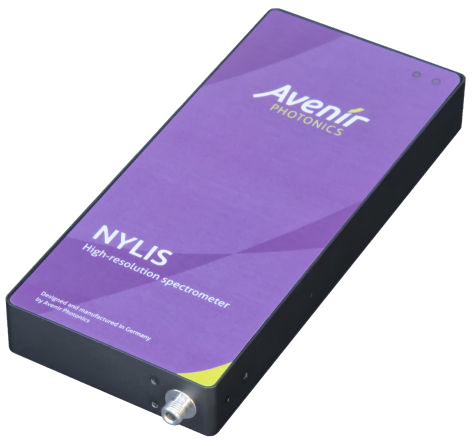

The Nylis spectrometer is the first compact Czerny-Turner array spectrometer to deliver optical resolution as low as 0.06 nm (FWHM).
Derived from the widely used Aris spectrometer, the Nylis incorporates an expanded focal length of 120 mm within a longer housing. This allows for superior optical imaging alongside smaller wavelength spans. Combined, these enhancements yield spectral resolutions previously unachieved in a device of this scale.
The Nylis comes in 10 standard wavelength options, which can be tailored to meet specific application needs. It includes a standard 10 µm entrance slit together with a 4096-pixel CMOS sensor.
Owing to its increased focal length and reduced entrance slit size, the Nylis exhibits less sensitivity compared to the Aris spectrometer. It is designed mainly for tasks demanding fine resolution rather than elevated sensitivity, such as assessing laser emissions.
If the application necessitates high sensitivity and resolution, Pembroke Instruments will help find the best solution.
Key Features
- Resolutions reaching 0.06 nm (FWHM)
- Wavelengths spanning 380 and 1100 nm
- Focal length f=120 mm
- Tailored wavelength ranges
Image Sensor
The Nylis incorporates the Hamamatsu S13496 image sensor. Featuring 4096 pixels, this sensor is ideal for maximum resolution.
Source: Pembroke Instruments, LLC
|
Hamamatsu S13496 |
| Sensor type |
CMOS |
| Number of pixels |
4096 |
| Exposure times |
54 μs, 35 minutes |
| SNR * |
550 |
| Dynamic range ** |
5500:1 |
| Readout noise *** |
11 counts |
| Trigger jitter |
≤1 μs |
* Maximum signal-to-noise ratio without averaging
** Without averaging, for a single pixel
*** Typical RMS value for a single exposure, scaled to 16 bit
Wavelength Ranges and Resolutions
The Nylis is offered in the following standard setups.
Source: Pembroke Instruments, LLC
| Wavelength range |
Resolution (FWHM) |
| typ. |
max. |
| 380−750 nm |
0.19 nm |
0.23 nm |
| 750−1100 nm |
0.20 nm |
0.24 nm |
| 380−540 nm |
0.09 nm |
0.11 nm |
| 470−630 nm |
0.09 nm |
0.11 nm |
| 580−740 nm |
0.09 nm |
0.11 nm |
| 400−500 nm |
0.06 nm |
0.07 nm |
| 500−600 nm |
0.06 nm |
0.07 nm |
| 620−700 nm |
0.06 nm |
0.07 nm |
| 740−810 nm |
0.06 nm |
0.07 nm |
| 800−860 nm |
0.06 nm |
0.07 nm |
Resolutions are given for the default 10 µm entrance slit. A larger entrance slit typically increases both the resolution and the sensitivity proportional to its width. The wavelength accuracy is typically one-third of the resolution.
Optics
Source: Pembroke Instruments, LLC
| . |
. |
| Optical design |
Symmetrical Czerny-Turner |
| Focal length |
120 mm |
| Numerical aperture |
0.07 (equivalent area) |
| Stray light |
0.3% |
| Detector lens |
Included |
| Order sorting filter |
Included (if required) |
| Optical interface |
SMA connector (other interfaces on request) |
