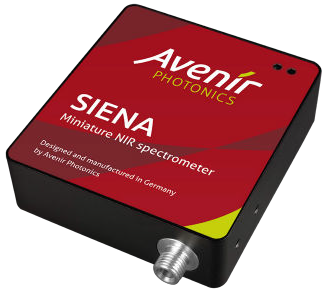

Avenir Photonics' SIENA elevates near-infrared (NIR) spectroscopy to an advanced level. It merges the capabilities and versatility of an array-based spectrometer with the compactness, affordability, and dependability necessary for mobile applications and industrial sensors.
For the first time, this system provides wavelength ranges extending up to 2100 nm using an uncooled InGaAs array sensor.
Typically, NIR spectrometers are categorized as either high-performance or low-cost. The SIENA offers the technical capabilities required for accurate measurements at a price point that is conducive to integration within portable and industrial sensors.
Its exceptional sensitivity, optimized stray-light suppression, and high dynamic range allow for precise measurement of large absorbance values.
The SIENA is designed with adaptability for specific applications: it comes in three standard wavelength ranges that can be tailored to enhance resolution. The standard entrance slit of 20 µm is user-replaceable and can be easily swapped to achieve improved sensitivity.
Its robust microcontroller facilitates on-board auto exposure, averaging, buffering, and spectrum processing. Furthermore, it supports the implementation of application-specific spectrum analysis.
By providing outstanding performance at an unparalleled price, the SIENA unlocks numerous new opportunities for NIR-based sensors.
Key Features
- Low-power, uncooled InGaAs sensor
- Wavelengths ranging from 800 to 2100 nm
- Outstanding stray light performance
- Compact size
Optics
Source: Pembroke Instruments, LLC
| . |
. |
| Optical design |
Symmetrical high-throughput Czerny-Turner |
| Focal length |
30 mm |
| Numerical aperture |
0.19 (equivalent area) |
| Stray light |
0.08% * |
| Detector lens |
Included |
| Order sorting filter |
Included (if required) |
| Optical interface |
SMA connector (other interfaces on request) |
* Measured with halogen lamp and long-pass filter
Wavelength Ranges and Resolutions
The Siena is offered in the following standard configurations.
Source: Pembroke Instruments, LLC
| Configuration |
Wavelength range |
Resolution (FWHM) |
| typ. |
max. |
| Siena 1.7 |
940–1700 nm |
8 nm |
10 nm |
| Siena 1.9 |
800–1900 nm |
12 nm |
14 nm |
| Siena 2.1 |
900–2100 nm |
13 nm |
16 nm |
Resolutions are given for the default 20 µm entrance slit. A larger entrance slit typically increases both the resolution and the sensitivity proportional to its width. The wavelength accuracy is typically one-third of the resolution.
Image Sensor
The Siena employs an innovative InGaAs line sensor that features integrated dark current compensation. Conventional InGaAs sensors operating beyond 1700 nm require cooling to avoid rapid saturation due to dark current.
In contrast, the Siena can function at room temperature up to 2100 nm without the need for cooling. This advancement removes the necessity for a fan and contributes to a reduction in both size and power consumption.
Source: Pembroke Instruments, LLC
| . |
. |
| Sensor type |
InGaAs |
| Number of pixels |
256 |
| Exposure time range |
4 μs, 10 minutes |
| Signal-to-Noise Ratio * |
1000 |
| Dynamic Range ** |
12,000:1 |
| Readout noise *** |
Four counts RMS |
| Trigger jitter |
≤1 μs |
* Maximum signal-to-noise ratio without averaging
** Without averaging, for a single pixel
*** Typical value for a single exposure, scaled to 16 bit
