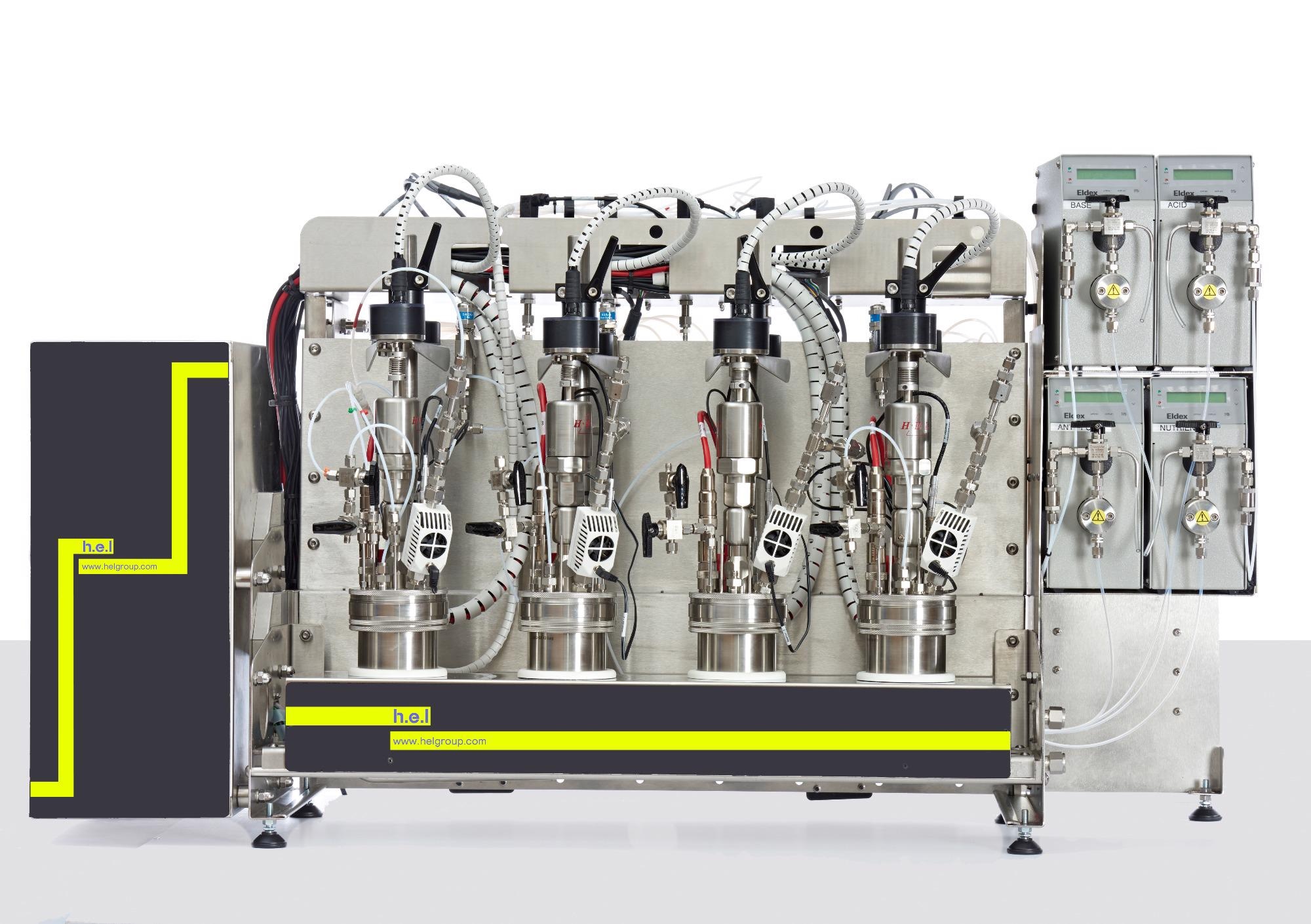

AutoMATE High Pressure: A High-Pressure, Bench-Top, 4- or 8- Reactor, Parallel Automated Reactor System

The AutoMATE High Pressure is a linear, automated parallel synthesis platform with independently controlled reaction zones, designed for use with high-pressure applications.  It is available in both a 4-reactor and 8-reactor format, supporting reactor volumes of up to 500 ml and 150 ml, respectively, and is equipped with adaptors to support a range of reactor types and sizes, including integration with H.E.L’s catalyst screening CAT reactor blocks.

The AutoMATE High Pressure to be used in a wide range of applications:

  • Hydrogenation and other pressure reactions within research and process development
  • High-pressure screening within research and early process development
  • DoE campaigns within process development
  • Facilitating scale-up operations

The platform’s ability to support high-pressure vessels enables elevated pressure reactions to be studied, whether that is screening or DoE campaigns further into process development.  It also facilitates the exploration of pressure effects on chemistry of interest, increasing reaction understanding and facilitating scale-up operations.

Features and Options:

Temperature Control

  • Ambient to 250 ⁰C (without external cooling).
  • Options to increase the range from -40 ⁰C (circulator dependent) or up to 350 ⁰C.
  • A separate mantle around each reactor allows the temperature to be controlled individually with a range/difference of over 100 °C between the reactors.

Independent Stirring

  • Indirect agitation with magnetic stirrer bar as standard.
  • Suspended mechanical agitation for efficient mixing on small-scale and non-viscous samples.
  • The more spacious 'suspended' stirrers are perfect for slurries.
  • Optional Overhead direct agitation for larger vessels.

Intelligent Software Control and Analysis

  • labCONSOL software control enables regular data logging, multi-step recipes, parameter control, and feedback loops. The software adds a responsive intelligence to the AutoMATE High Pressure system and still delivers an intuitive interface that needs only minimal training to run quickly.

Safety Features

  • Include automatic user-configurable reaction detection and shutdown procedures, to ensure user safety.
  • Compact manifold for easy manual purge and pressurisation.
  • Automatic hardware and software fail-safes are installed on every system.

Condensing Options

  • Easy quick-connect solution for condensing and inerting in larger reactors. Seals allow condensers to be removed without cooling liquid spillage.
  • Also available reflux and inerting block, with adapters for vials, tubes, and reactors.

Reactor Options

  • Vessel types are available in Stainless Steel or Hastelloy. Reactor volumes are commonly 16 ml, 30 ml, or 50 ml reactors on the 8-reactor version, all stirred and with separate temperature control. Larger volumes, up to 500 ml, are possible options.
  • High Pressure and Vacuum Systems
    • Each reactor can be independently pressurized up to 200 bar.
    • Individual reactors can be pressurized by Mass Flow Controllers (MFC's) for increased pressure control.
    • Automated measuring of gas-uptake during reaction available for both MFC and non-MFC systems.
  • Sampling Systems through active pumps, manual dip tubes, automated level control, or multisampling units, like the ASU.
  • Reagent Addition through fully automated liquid and gas feeds as well as volumetric syringe pumps. These solutions can be applied to both high and low-pressure systems.
  • Control Options all relevant inputs can be logged, enabling automated monitoring and, where appropriate, feedback control of the reactor system.
  • Sensor Options
    • Temperature, pressure, pH, turbidity, conductivity.
    • Integration of third-party probes is possible, such as in-situ FTIR, particle sizing probes and Raman probes.
