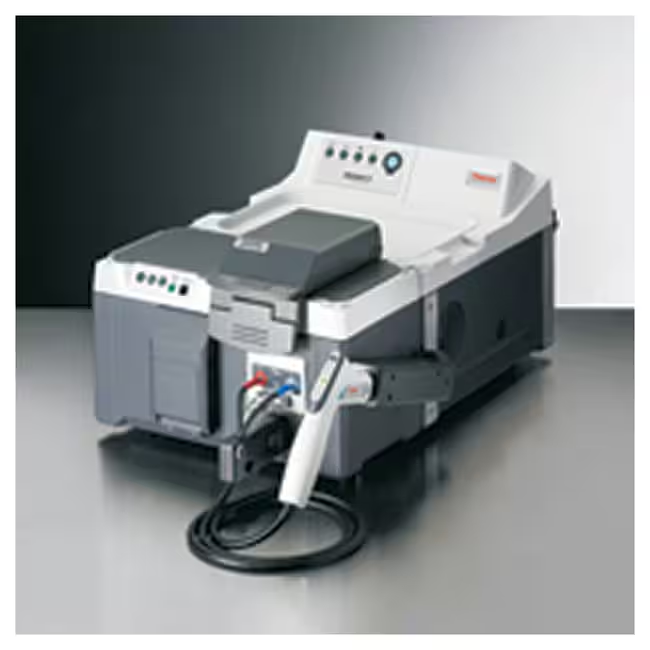

The Thermo Scientific™ Antaris™ II FT-NIR Analyzer makes it easy to apply laboratory-based FT-NIR performance in a ready-for-plant package. The Antaris II FT-NIR Analyzer offers strong and dependable data collection for at-line, online, and in-line analysis with method transfer performance that leads the industry.
Users can select the Antaris II MDS Method Development Sampling System, which combines transmission, fiber-optic, and integrating sphere diffuse reflection analysis into a single turnkey system, or customize an Antaris II FT-NIR Analyzer for particular applications.
The Antaris II FT-NIR Analyzer Allows Users to:
- Analyze all types of samples quickly and precisely
- The Thermo Scientific™ ValPro™ Instrument Qualification Package simplifies regulatory compliance (DQ, IQ, OQ, and PQ)
- Produce results regardless of setup, maintenance, user, or environment
- Achieve rapid, precise, and accurate measurements in the lab or plant
Ordering Information:
The Antaris II FT-NIR Analyzer is supplied as a customized system tailored to the user's individual requirements.
Recommended for:
- Gel
- Syrup
- Films
- Liquids
- Solids
- Powders
- Grains
- Tablets
- Paste
Download the Brochure for More Information
Specifications
Source: Thermo Fisher Scientific - Vibrational Spectroscopy
| . |
. |
| Analyzer Type |
Fourier Transform Near-Infrared |
| Description |
Thermo Scientific™ Antaris™ II FT-NIR Analyzer sets an industry standard, providing laboratory-based FT-NIR performance in a ready-for-plant package. |
| Detection |
High sensitivity, high stability matched InGaAs |
| Height (Metric) |
33 cm |
| Interface |
Direct PC to Ethernet allows file system and OPC communications |
| Interferometer |
Proven, frictionless, stable, long-life Michelson |
| Length (Metric) |
68.5 cm |
| Operating Temperature Range |
15 °C to 35 °C (59 ° to 95 °F) |
| Photometric Linearity |
Slope 1.0 ±0.05 and an intercept of 0.0 ±0.05 |
| Product Type |
Antaris II FT-NIR Analyzer |
| Resolution |
4 cm-1 across spectral range (0.6 nm at 1250 nm), 2 cm-1 option across spectral range (0.3 nm at 1250 nm) |
| Sampling Mode |
Configurable with reflection, transmission, fiber optics, or tablet transmission. |
| Sealed and Desiccated |
Yes |
| Source Type |
Long-life, high intensity halogen NIR source; spare source included with system, guaranteed filament image alignment |
| Spectral Range |
12,000 to 3800 cm-1 (833 to 2630 nm) |
| System Status Indicators |
Yes |
| Voltage |
90/264 V |
| Wavenumber Accuracy |
±0.03 cm-1 (0.005 nm at 1250 nm) |
| Wavenumber Repeatability |
Single System: 10 measurement standard deviation <0.006 cm-1 |
| Wavenumber Reproducibility |
System to System: Better than 0.05 cm-1 (0.008 nm at 1250 nm) |
| Weight (Metric) |
47.7 kg |
| Width (Metric) |
40.6 cm |
| Unit Size |
Each |
Videos
Thermo Scientific Antaris II spectrometer for food analysis. Video Credit: Thermo Fisher Scientific - Vibrational Spectroscopy
Thermo Scientific™ Antaris™ II FT-NIR Analyzer for Pharma. Video Credit: Thermo Fisher Scientific - Vibrational Spectroscopy
