The Thermo Scientific™ Antaris™ MX FT-NIR Process Analyzer uses integrated communication for real-time feedback and fiber optic simultaneous multiplexing technology to optimize the QC testing while remotely monitoring the process. For online process monitoring applications and point-of-use materials analysis, the Antaris MX FT-NIR Process Analyzer offers a comprehensive, suitable solution.

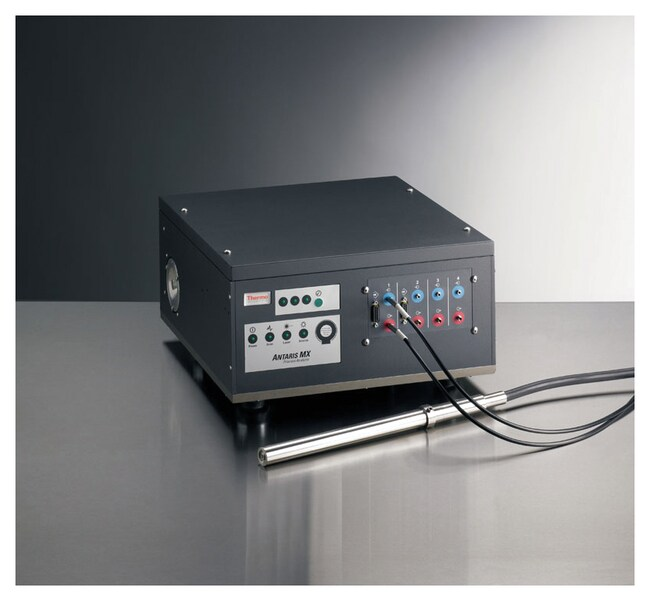

Antaris™ MX FT-NIR Process Analyzer. Image Credit: Thermo Fisher Scientific - Vibrational Spectroscopy
This user-friendly NIR analyzer makes it possible to monitor several processes at once or a single operation at different times. Additionally, the probe’s removal from the process stream for background collection or qualification is eliminated by the Antaris MX Process Analyzer.
The Antaris MX FT-NIR Process Analyzer Features
- SMA905 industry-standard connectors for fiber optics - Select the probe appropriate for the process
- OPC, 4-20 mA and Digital I/O for process communications
- Thermo Scientific™ ValPro™ Instrument Qualification Package
- Always-on internal background
Ordering Information:
The Antaris MX FT-NIR process analyzer is supplied as a configured system tailored to the specific application requirements.
Recommended for:
- Laboratory liquid analysis
- Laboratory solid analysis
- In-process liquid analysis
- In-process solid analysis
Download the Brochure for More Information
Specifications
Source: Thermo Fisher Scientific - Vibrational Spectroscopy
| . |
. |
| Analyzer Type |
Fourier Transform Near-Infrared |
| Description |
Antaris MX FT-NIR Process Analyzer |
| Detection |
High sensitivity, high stability matched InGaAs |
| Height (English) |
18.97 x 15.98 x 9.72 in. |
| Height (Metric) |
48.2 x 40.6 x 24.7 cm |
| Interface |
Direct PC to ethernet allows file system and OPC communications |
| Interferometer |
Proven, frictionless, stable, long-life Michelson |
| Operating Temperature Range |
15 °C to 35 °C (59 ° to 95 °F) |
| Photometric Linearity |
Slope 1.0 ±0.05 and an intercept of 0.0 ±0.05 |
| Resolution |
4 cm-1 across spectral range (0.6 nm at 1250 nm), 2 cm-1 option across spectral range (0.3 nm at 1250 nm) |
| Sampling Mode |
Fiber optic multiplexing |
| Sealed and Desiccated |
Yes |
| Source Type |
Long-life, high-intensity halogen NIR source; spare source included with system, guaranteed filament image alignment |
| Spectral Range |
12,000 to 3800 cmto1 (833 to 2500 nm) |
| System Status Indicators |
Indicator lights report scan, laser, power, and source status continuously |
| Voltage |
90/264 V |
| Wavenumber Accuracy |
±0.1 cm-1 (0.02 nm at 1250 nm) |
| Wavenumber Repeatability |
(System to System) Better than 0.05 cm-1 (0.008 at 1250 nm) |
| Wavenumber Reproducibility |
(Single System) 10 measurement standard deviation <0.006 cm-1 |
| Weight (English) |
105.16 lb. |
| Weight (Metric) |
25.8 kg |
| Unit Size |
Each |
