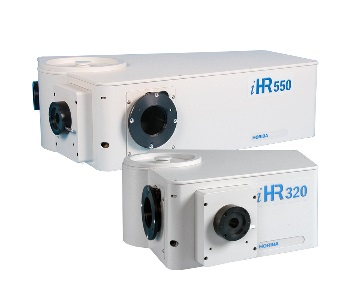

New iHR550 Imaging Spectrometer from HORIBA

HORIBA Scientific has introduced a new, advanced spectrometer called iHR550 which provides an exclusive combination of flexibility, ease of use, spectral quality and robustness, making it an appropriate general-purpose instrument for conducting spectral measurements with quality results.

The iHR550 has a focal length of 0.55 m which offers excellent image quality for spectral measurements, and also allows users to carry out multi-track experiments with about 20 fiber inputs. With the help of HORIBA’s patented on-axis grating drive system and an asymmetric Czerny-Turner design, re-diffracted and false spectra can be removed.

The instrument is available with two exit and two entrance ports. Users can configure each port that can be used with an array detector like CCD, or with a slit to utilize with PMT. The iHR550 has a single-piece cast aluminum housing which makes it suitable for complex measurements.

Key Features

Product features of the iHR550 Imaging Spectrometer are:

  • An exclusive shape for a unique spectrometer
  • Versatile and user-friendly
  • Excellent imaging performance
  • Eliminates re-diffracted light

Specifications

Specifications of the iHR550 Imaging Spectrometer are provided in the table below:

Wavelength Range 185 nm to Far Infrared
Resolution 0.025 nm
Detector(s) CCD or PMT
Scanning Speed 160 nm/sec
Dynamic Range Inquire
Signal-to-Noise Ratio Inquire.
Focal Length 550 mm
Pixels Inquire
