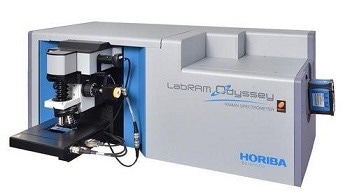

LabRAM Odyssey: Confocal Raman Imaging and High-Resolution Spectrometer

The LabRAM Odyssey Raman microscopes are perfect for micro and macro measurements, and they feature sophisticated confocal imaging capabilities in 2D and 3D. With the real confocal Raman microscope, the highest comprehensive images and analyses may be acquired quickly and confidently.

The LabRAM Odyssey is the ideal Raman spectroscopy instrument, with assured high performance and intuitive simplicity. It is commonly utilized for conventional Raman analysis, PhotoLuminescence (PL), Tip Enhanced Raman Spectroscopy (TERS), and other hybrid methods.

With a simple AFM update, users can switch from microscopy to nanoscopy.


High Spatial and Spectral Resolutions

The high throughput 800 mm single-stage optimized spectrometer from HORIBA Scientific produces the most sensitive instruments on the market, with high throughput diffraction limited spatial resolution. The high-resolution spectrometer easily characterizes subtle sample information like crystallinity, polymorphism, strain, and other band analyses.

From Deep UV to NIR Without Compromise

Compatibility with a wide range of laser wavelengths and the possibility of mounting up to three detectors means that the measurement wavelength range can be extended from 200 nm to 2200 nm.

The optimized UV configuration provides the most effective option for UV Raman analysis at wavelengths less than 400 nm. Other spectroscopic techniques, like UV Raman, resonance Raman, and photoluminescence, are enabled by such performance, allowing for extensive sample characterization from a wide range of materials.

Ease of Use and Ergonomy

The LabRAM Odyssey’s completely automated intelligent design assures maximum performance while being simple to operate. The LabSpec 6 app store has a huge specialized application range that allows users to modify the software to adapt and evolve to their individual demands.

With its VRM patented function, LabRAM Odyssey provides a high level of automation, such as a laser switch, an automated objective turret, or an automated spatial calibration.

Ultra-Fast Confocal Imaging

The LabRAM Odyssey incorporates the revolutionary SWIFT and DuoScan rapid Raman imaging technologies.

DuoScan is a confocal imaging mode that uses high precision, ultra-fast rastering mirrors to create variable-sized laser macro-spots as well as a nano-step mapping from deep UV to NIR.

SWIFT provides confocal Raman mapping with CCD integration speeds as low as 1 millisecond per point.

The unique combination of advanced optics, detectors, and software provides real confocal Raman imaging with unrivaled data acquisition speed.

Raman-AFM and TERS Compatible

The LabRAM Odyssey’s inherent flexibility makes it the perfect platform for combined Raman-AFM analysis, and research to TERS (tip-enhanced Raman scattering) nano-Raman.

The LabRAM Odyssey can also be equipped with the patented nanoGPS navYX function for comprehensive collaborative characterization with other microscopy modalities such as SEM, FTIR, and others.

Ultra-Low Frequency Module

Using the ULF Module, the LabRAM Odyssey combines easy access to very low frequencies as low as 5 cm-1 with a high throughput single-stage spectrometer. The notch and bandpass filters enable extra sample characterization in a spectral area that is rarely accessible with other basic spectrometers.

Automated Particle Location and Chemical ID

ParticleFinder is a user-friendly tool for automated particle location, characterization, and Raman analysis. Using the LabRAM Odyssey’s superior Raman capabilities, hundreds or thousands of particles can be instantly discovered and described.

Find the Best Conditions for the Analysis of the Sample

The sampling flexibility of the LabRAM Odyssey ensures that research is fully optimized. Standardly equipped with the upright microscope, an open-space microscope can be installed, giving users free space under the objective to adapt numerous accessories like large cryostat and broad travel range stages.

For life science research, the inverted microscope provides ideal sampling for cells and tissues.

CaptuR Laser Trapping

A one-of-a-kind and integrated laser trapping solution that is perfect for fine particle management during microscopic analysis.


Source: HORIBA Scientific

General Specifications
Wavelength range Deep UV to VIS-NIR Standard 200 nm - 2200 nm (achromatic, no change of optics required)
Imaging spectrometer Czerny-Turner configuration Focal length: 800 mm
Lasers Up to 6 motorized User selectable: 266 nm, 325 nm, 355 nm, 405 nm, 458 nm, 473 nm, 532 nm, 633 nm, 660 nm, 785 nm, 1064 nm
Other wavelengths possible on request.
Laser filters Unlimited Various range of filters (Dielectric, Notch, ULF…) to cover all the applications.
Number of gratings Unlimited
Spectral resolution
@ 244 nm excitation wavelength ≤ 1.5 cm-1 with 3600 gr/mm
@ 532 nm excitation wavelength ≤ 0.6 cm-1 with 1800 gr/mm and ≤ 0.3 cm-1 with 3000 gr/mm
@ 633 nm excitation wavelength ≤ 0.4 cm-1 with 1800 gr/mm and ≤ 0.2 cm-1 with 2400 gr/mm
@ 785 nm excitation wavelength ≤ 0.2 cm-1 with 1800 gr/mm
Ultra Low Frequency
< 10 cm-1 measured on sulfur Based on Volume Bragg Filters (VBG). Available for 473, 532, 633 and 785 nm laser excitations.
Automated internal
calibration functions
Built-in automatic AutoCAL & ICS methods,
VRM & VRM OA as standard
Automated calibration of spectral intensity and range calibration.
VRM ensures high spatial accuracy for Raman and microscopy mapping,
VRM OA allows change of magnification without loss of spatial accuracy.
Fast Raman imaging Patented SWIFT™ functions Compatible with all objectives and all lasers.
3 available in standard: SWIFT™ imaging, repetitive imaging and XR high spectral resolution.
SWIFT™ XS high speed imaging requires an optional EMCCD detector to be used.
AFM / SEM coupling Yes Compatible with NanoRaman module and with patented nanoGPS™ navYX for correlative microscopy measurements.
Dimensions W x H x D
1300 x 1194 x 473 The depth depends on the XY stage and the laser bench (optional).
This value is for the 100 x 100 mm stage and with the laser bench-Class IIIb system - without optional CDRH.
Weight ~100 kg Depends on configuration.
Safety Class IIIb Optional CDRH Laser safety class 1.
