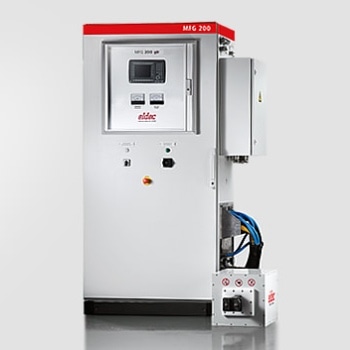

The CUSTOM LINE MF generators from eldec are a state-of-the-art medium-frequency solution for specific requirements. The MF generators are rugged, efficient, and flexible with MF power ranging from 200 to 1,500 kW. The frequency range is 8 to 40 kHz.
Induction heating with a comprehensive set of options
Customized energy sources are the solution for effective induction heating or hardening of parts. A made-to-measure solution ensures low energy consumption and stable production processes. Eldec’s CUSTOM LINE MF medium-frequency generators provide exactly these kinds of features.
The configuration options are almost unlimited. In addition to a broad range of power and frequencies, users have the option between solutions with multiple and single outputs. As a result, several inductors can be connected to the compact CUSTOM LINE MF generator via individual hoses.
Additionally, because of their high power density, eldec generators always use active or passive water cooling.
Advantages
The advantages of the MF Generators are as follows:
- Maintenance free
- High power density
- Single or multiple outputs
- Precise energy dosing
- Smart operator interface
Options
The options that are provided with the MF Generatorsare listed below:
- Supply voltage 200 V, 380 V, 400 V, 480 V, 560 V
- Profibus interface
- Hose bundle of up to 15 m length
- Frequency switching: 8 to 20/16 to 40 kHz
- Frequency: 16 to 40 kHz
- Energy controller
- Serial/parallel switch
- Quick-change device (coax/cable box)
- Temperature logger
- Ground fault monitoring
- Pyrometer temperature control
- Current and voltage indicators
- Cable box with heating cable for shrink applications
- Soldering gun
- Foot switch/pedal
- Cooling systems on request
Technical Data CUSTOM LINE MF
MFG control cabinet housing, power 200 - 1,500 kW
MF frequency ranges: 8 - 40 kHz
| Type / Rated capacity |
Power connection + 10% 50/60 Hz |
Required cooling water without inductor |
Generator dimensions |
Weight |
Coaxial/Output transformer dim. |
| |
V |
A |
l/min |
W x H x D mm |
kg |
W x H x D mm |
| MFG 200 |
3 x 400 |
400 |
70 |
1000 x 2100 x 600 |
310 |
160 x 400 of |
| MFG 250 |
3 x 400 |
500 |
75 |
1000 x 2100 x 600 |
320 |
2 x 120 x 380 |
| MFG 300 |
3 x 400 |
630 |
80 |
1400 x 1980 x 600 |
450 |
370 x 400 x 500 |
| MFG 400 |
3 x 400 |
800 |
100 |
1400 x 1980 x 600 |
550 |
370 x 400 x 500 |
| MFG 500 |
3 x 400 |
1000 |
120 |
2000 x 2000 x 1200 |
700 |
370 x 400 x 500 |
| MFG 600 |
3 x 400 |
1200 |
140 |
2000 x 2000 x 1200 |
750 |
370 x 400 x 500 |
| MFG 700 |
3 x 400 |
1400 |
160 |
2000 x 2000 x 1200 |
800 |
370 x 400 x 500 |
| MFG 800 |
3 x 400 |
1500 |
200 |
2000 x 2000 x 1200 |
820 |
370 x 400 x 500 |
| MFG 1000 |
3 x 400 |
2000 |
250 |
2000 x 2000 x 1200 |
950 |
370 x 400 x 500 |
| MFG 1500 |
3 x 400 |
3000 |
350 |
2000 x 2000 x 1200 |
1100 |
370 x 400 x 500 |
