Providing High-Precision Energy Dosing with HF Generators

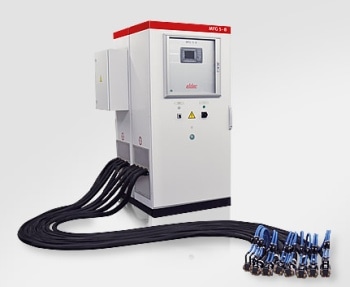

The CUSTOM LINE HF generators from eldec provide made-to-measure high-frequency technology for induction heating. The CUSTOM series of HF generators are configured precisely for the appropriate production operation. Their HF power ranges from 100 to 1,500 kW, and the frequency range is 80 to 400 kHz.

Induction generators with high power density

Several combinations of frequency and power are possible – a key prerequisite for efficient induction heating. eldec induction generators also provide high-precision energy dosing, which ensures the reproducibility of the process.

Additionally, the CUSTOM LINE HF generators are available with a full bundle of options; offers include hose bundles of varying lengths, pyrometer-based temperature control, a Profibus interface, and a cable box with a heating cable for shrink applications. The overall system will be perfectly matched to the induction operation.

This is true when it comes to the outputs of the induction generators. Multiple or single outputs are available (twin, triple, quad, up to eight). eldec also offers a matching active or passive water cooling system for the CUSTOM LINE HF generators.

Advantages

The key advantages of the HF Generators are as follows:

• Precise energy dosing
• Energy-efficient technology
• Simplified operation and handling
• Multiple output options
• High power density
• Maintenance-free operation

Options

The options that are provided with the HF Generators are listed below:

• Supply voltage 200 V, 380 V, 400 V, 480 V, 560 V
• Profibus interface
• Ground fault monitoring
• Coax winding changeover
• Hose bundle of up to 15 m length
• Pyrometer temperature control
• Energy controller
• Temperature logger
• eQC
• Foot switch/pedal
• Soldering gun
• Cooling systems on request
• Current and voltage indicators

Technical Data CUSTOM LINE HF

HFG control cabinet housing, power 100 – 1,500 kW

HF frequency ranges: 80 – 400 kHz
